18
Button head self
tapping screw
2 x M3*6
Tips：
Pay attention to the
interface direction of
the optical endstop.
Mica
insulation gasket
4 x 3*8*1
Tips：
The motor interface
is on the right.
Button head
mechanical screw
4 x M3*12

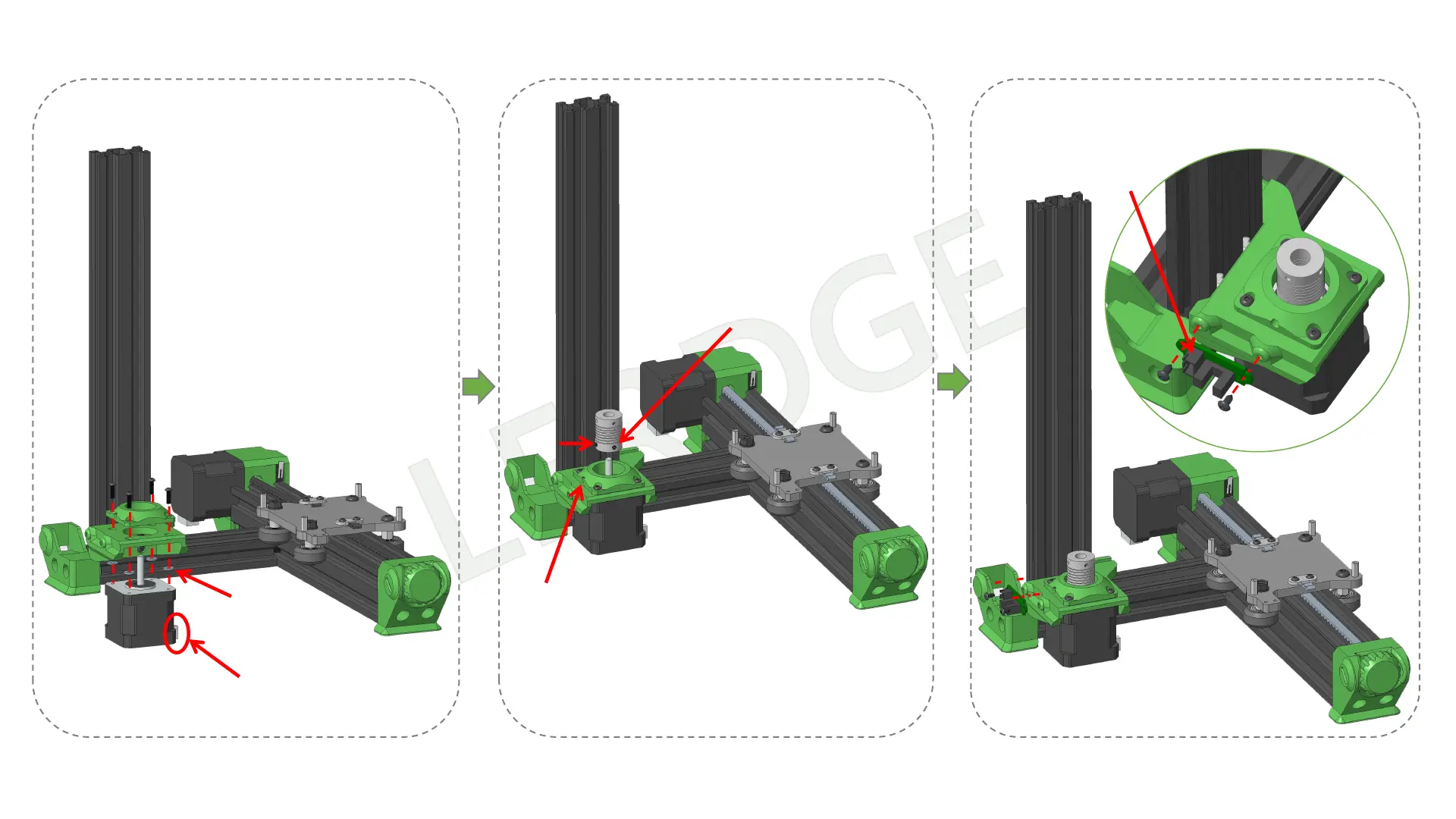

2.8- Assemble Z-axis motor
Tips：
Insert the screwdriver through the
small hole on the side of the
adjustment block, and tighten the
screws on the coupling in turn.
Unscrew the M3 screw to
facilitate inserting the coupling
to the motor output shaft.
To Next Page
