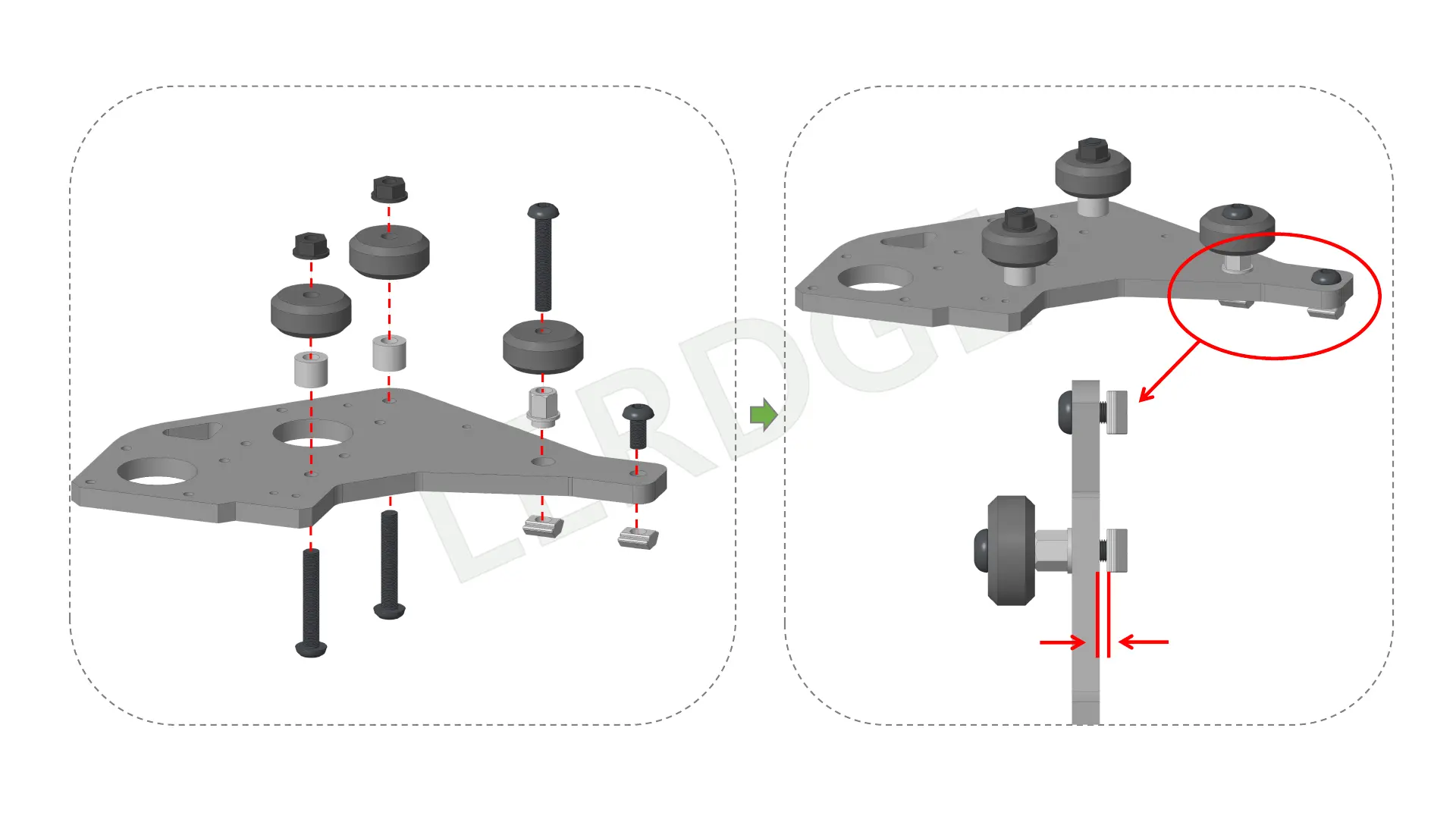

4.1- Assemble the Z-axis slider
3 x Large pulley
Spacer column
2 x 5*8*8
1x
Eccentric nut
2 x M5 Slotted slider nut
Button head
mechanical screw
1 x M5*30
Button head
mechanical screw
1 x M5*10
Button head
mechanical screw
2 x M5*30
2 x M5
Self-locking nuts
>1.5MM
