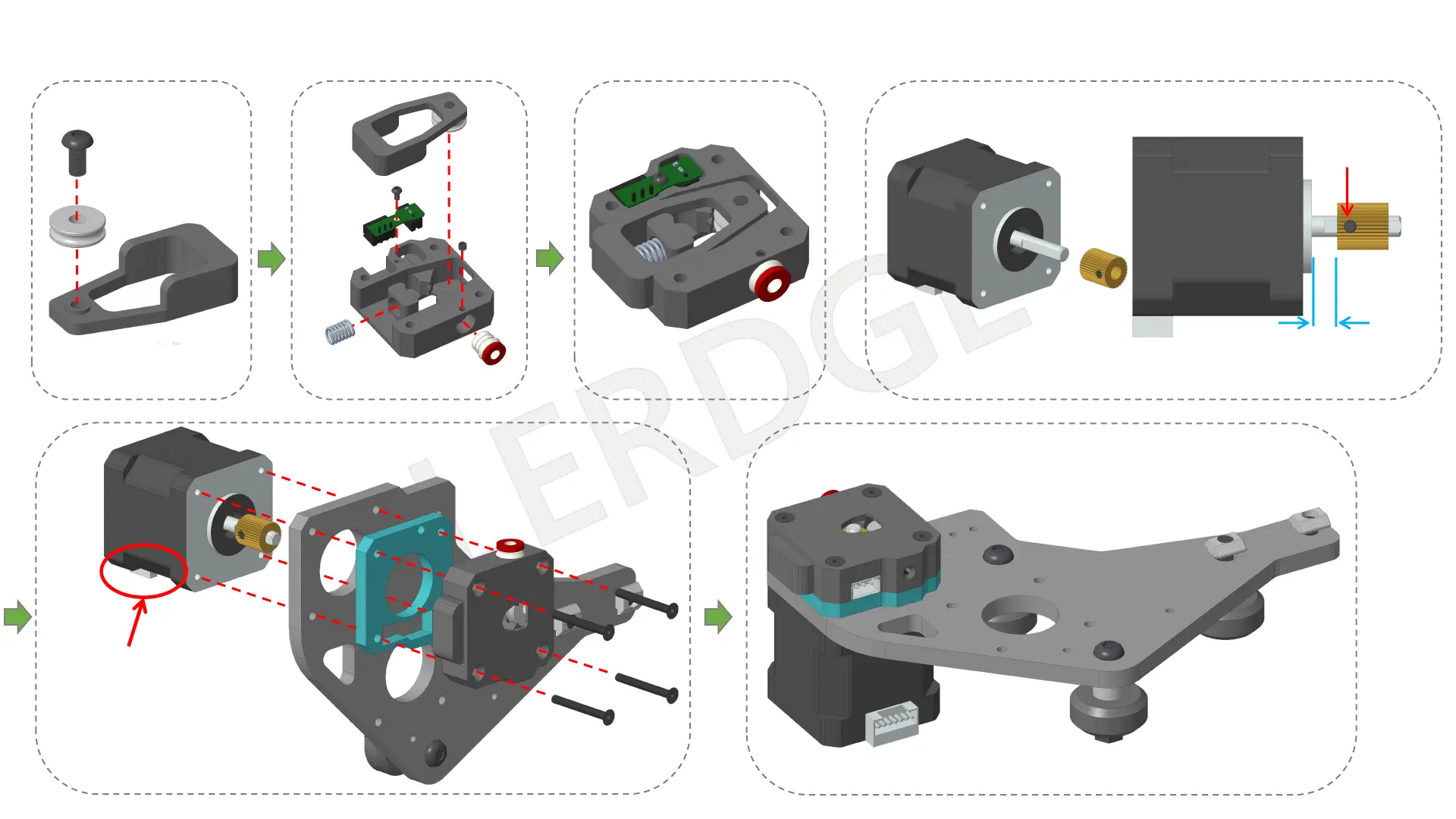

4.2- Assemble the extruder
Motor interface face down.
Button head
mechanical screw
1 x M4*8
U604ZZ Bearing
Countersunk
mechanical screw
4 x M3*25
6mm
Extrusion spring
1*7*15
Tighten the
screws on
the gear
