www.lerdge.com
25

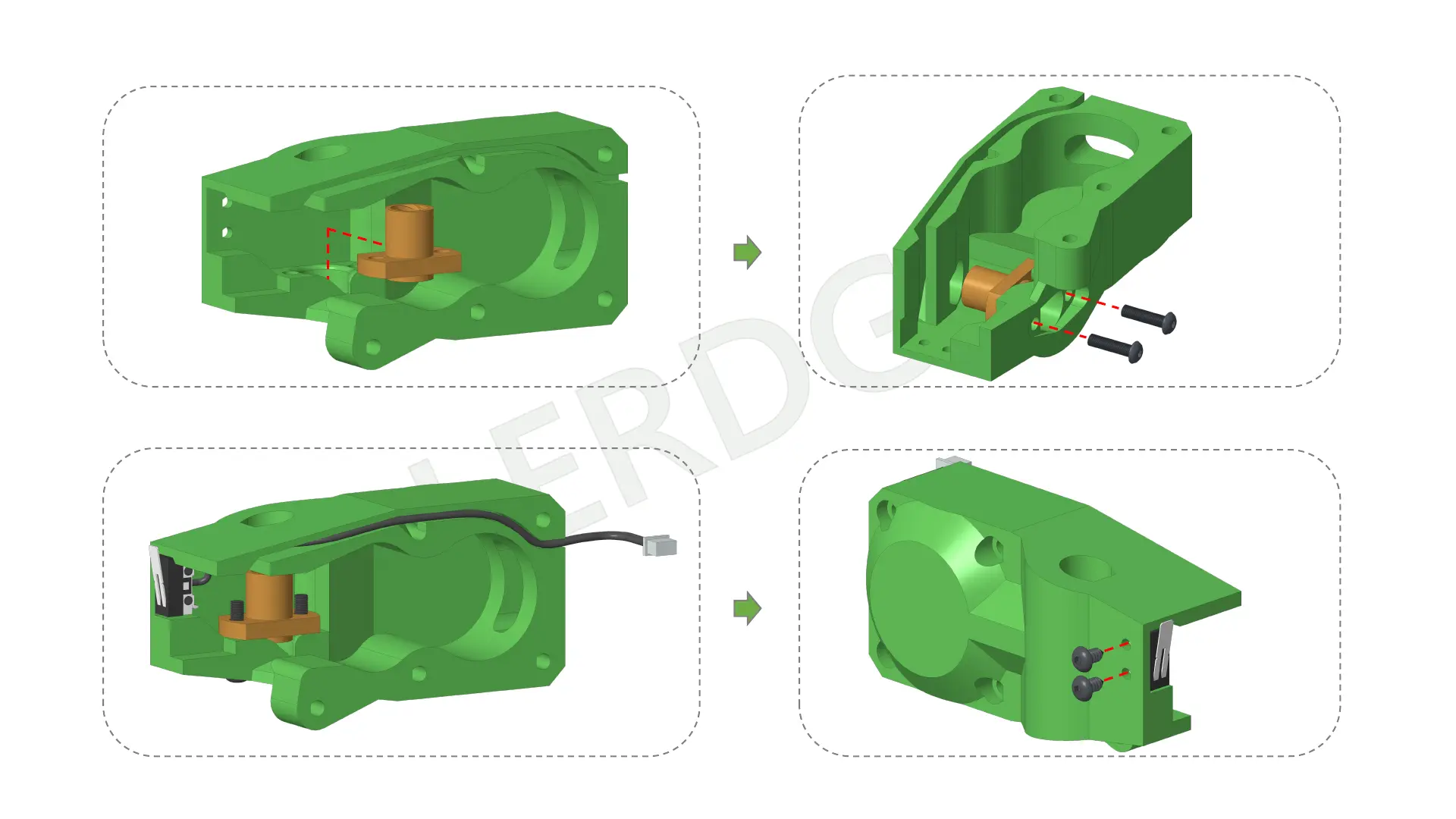

4.3- Assemble X-axis motor base
Button head
mechanical screw
2 x M3*12
Button head self
tapping screw
2 x M2.3*8
