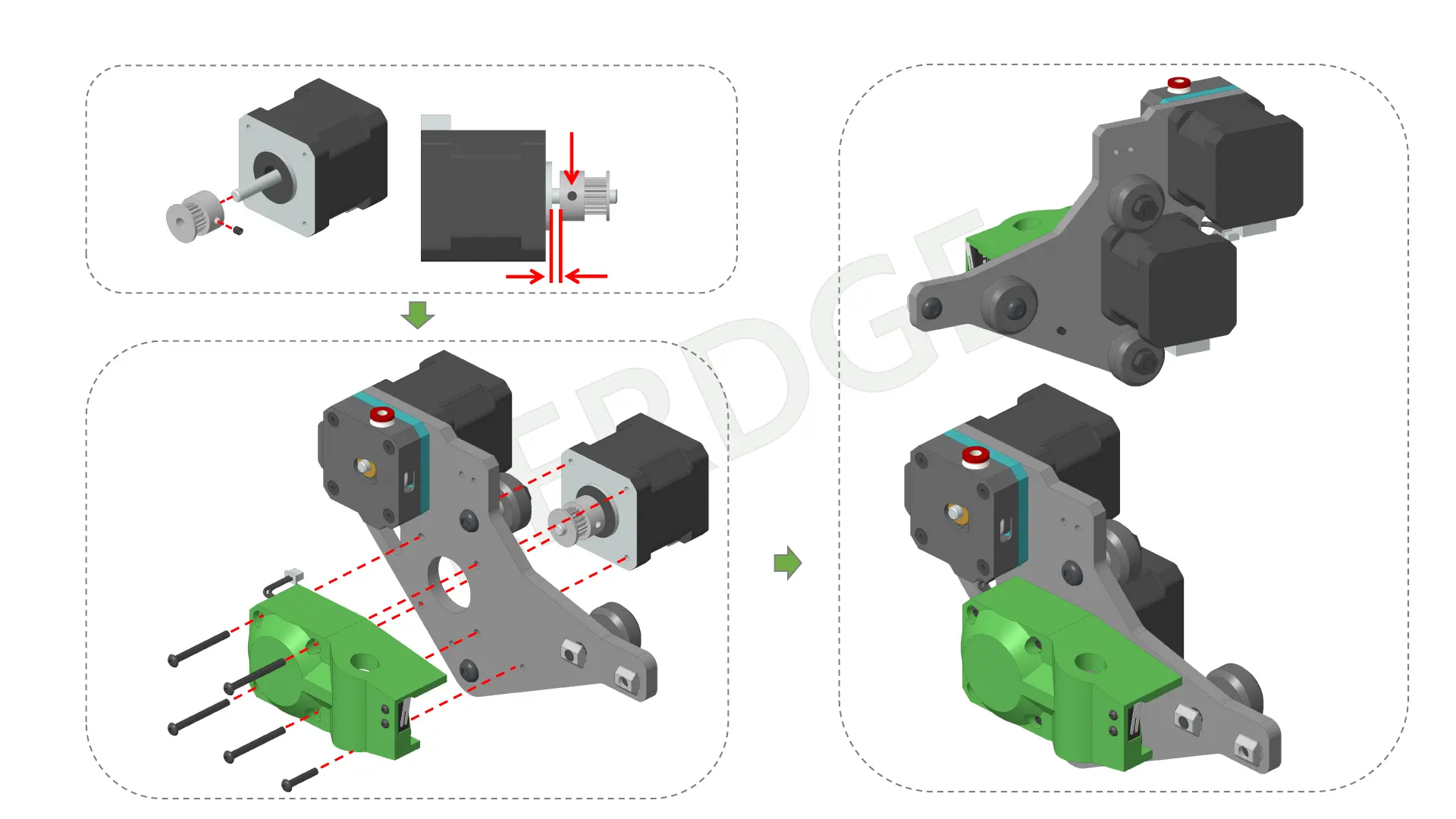

4.4- Assemble X-axis motor

3.0MM

Button head

mechanical screw

4 x M3*30

Button head

mechanical screw

1 x M3*12

Note:

Pay attention to the direction

of the synchronous wheel.

Tighten all the screws
