www.lerdge.com
27

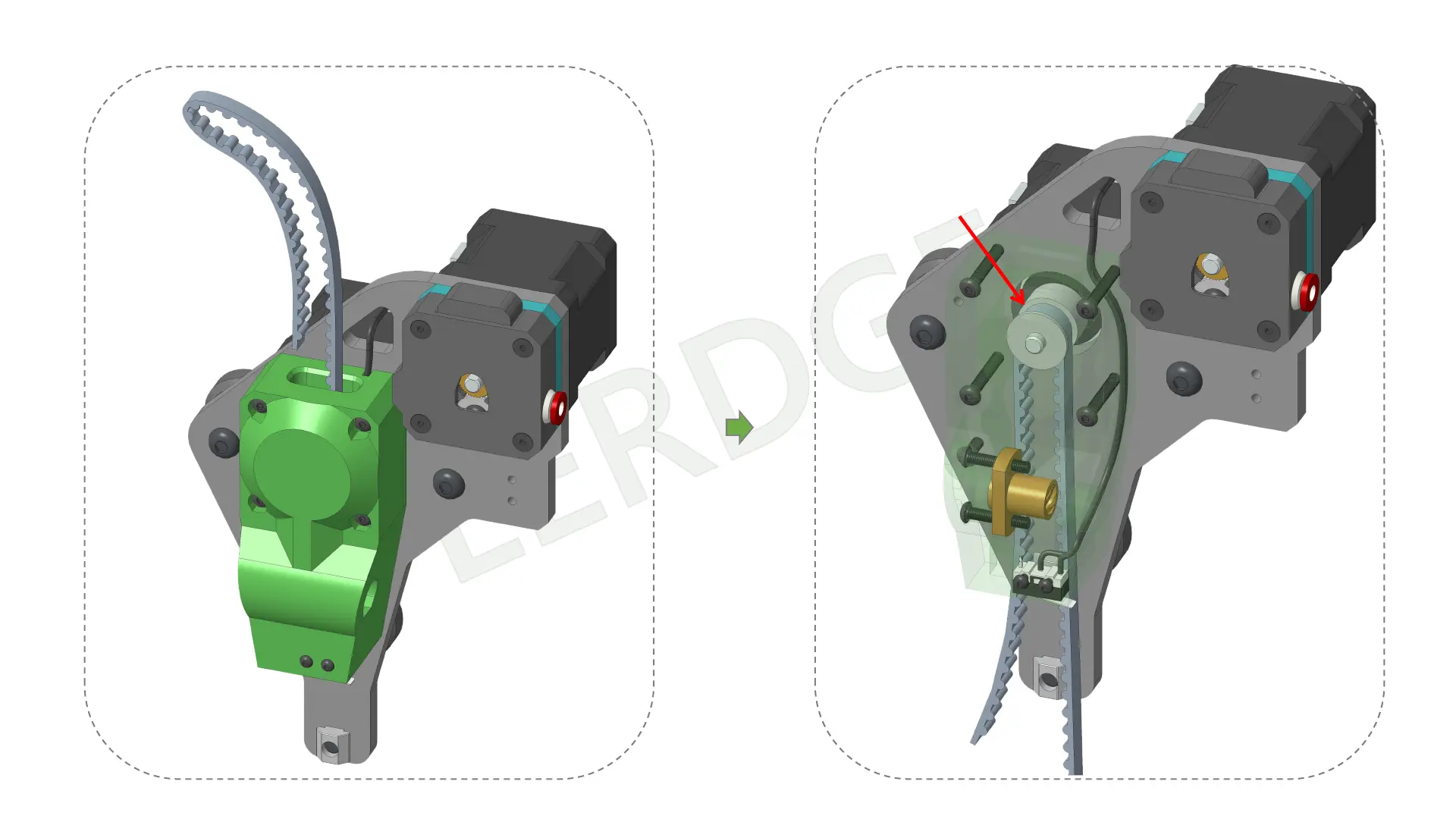

4.5- Assemble the X-axis belt
Make sure that the
belt is correctly
assembled on the
synchronous wheel
of the motor.
