28
Countersunk self
tapping screw
1 x M3*6
Button head mechanical screw
1 x M3*12

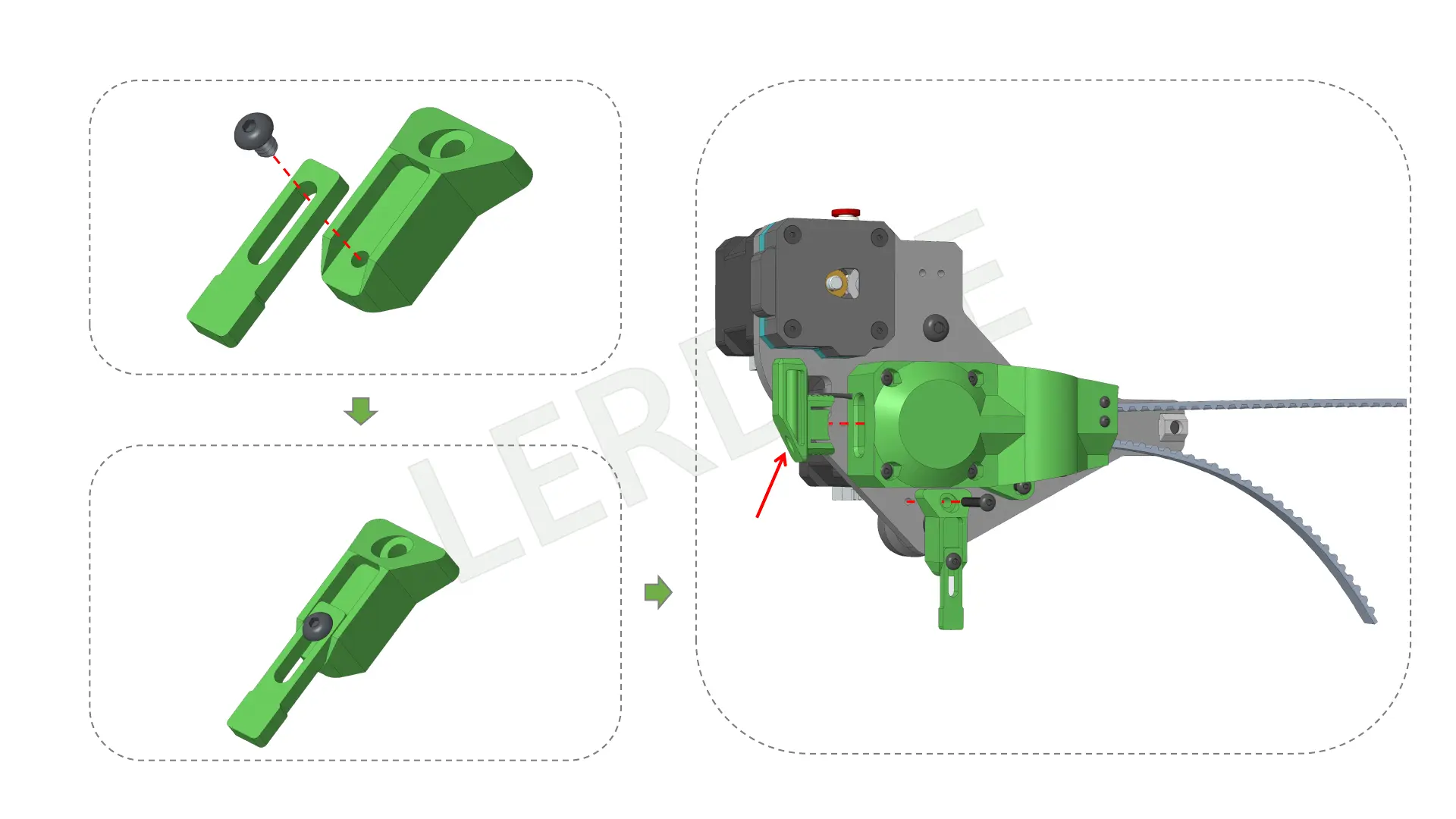

The Z-axis home adjuster has been pre-assembled.
The above picture is only for disassembly display.
4.6- Assemble Z-axis home adjuster and feed guide port
Feed guide port
