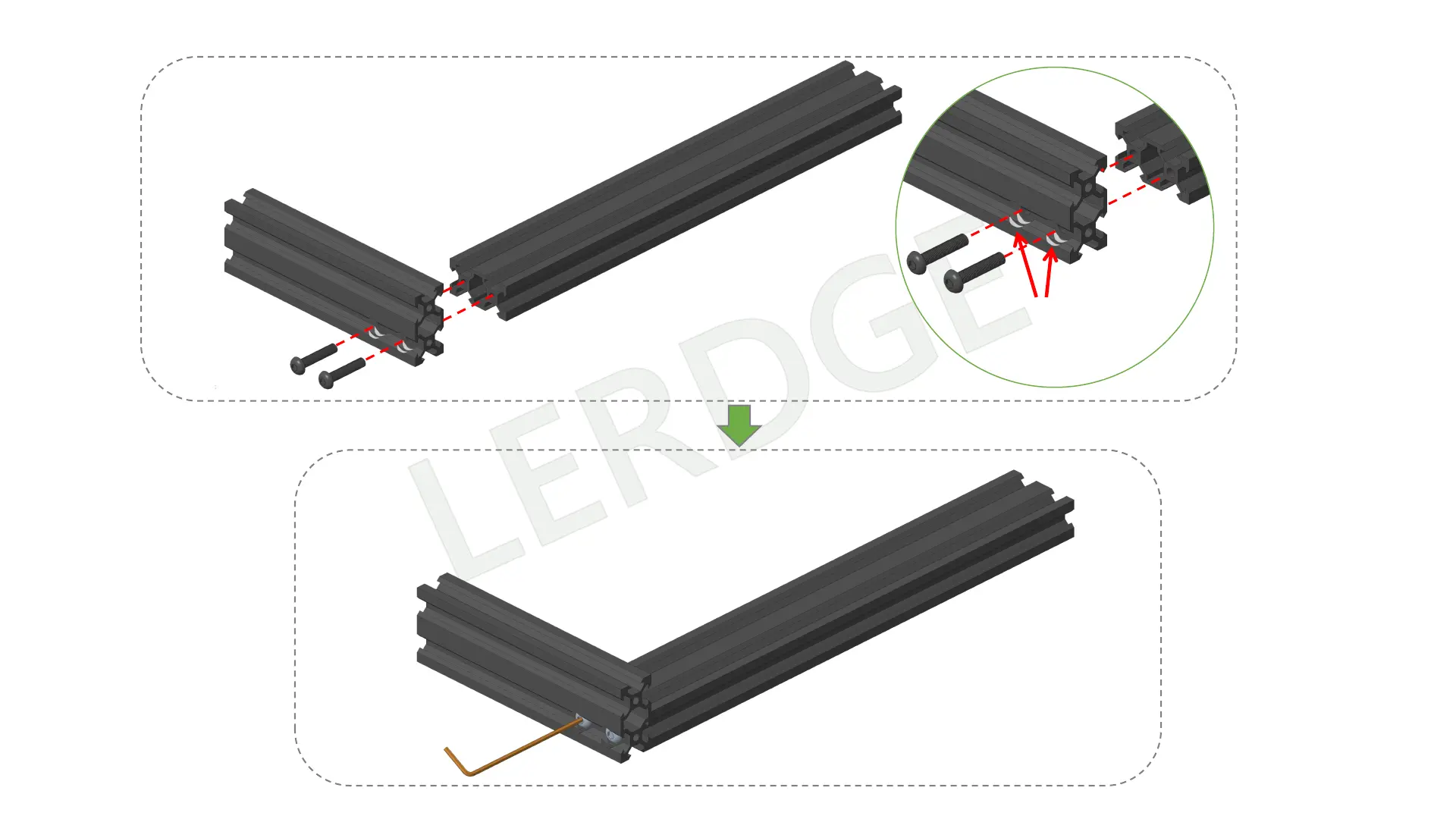

1.1-Assemble the Z-axis aluminum profile
The screw penetrates
from the side with the
reamed hole
140mm
V2040 Aluminum profile
300mm
V2040 Aluminum profile
Tips：
Press the aluminum profile on a flat surface (such
as glass, ceramic tiles, etc.) to ensure the accuracy
of the assembly, and then tighten the screws.
Button head mechanical screw
2 x M5*25
