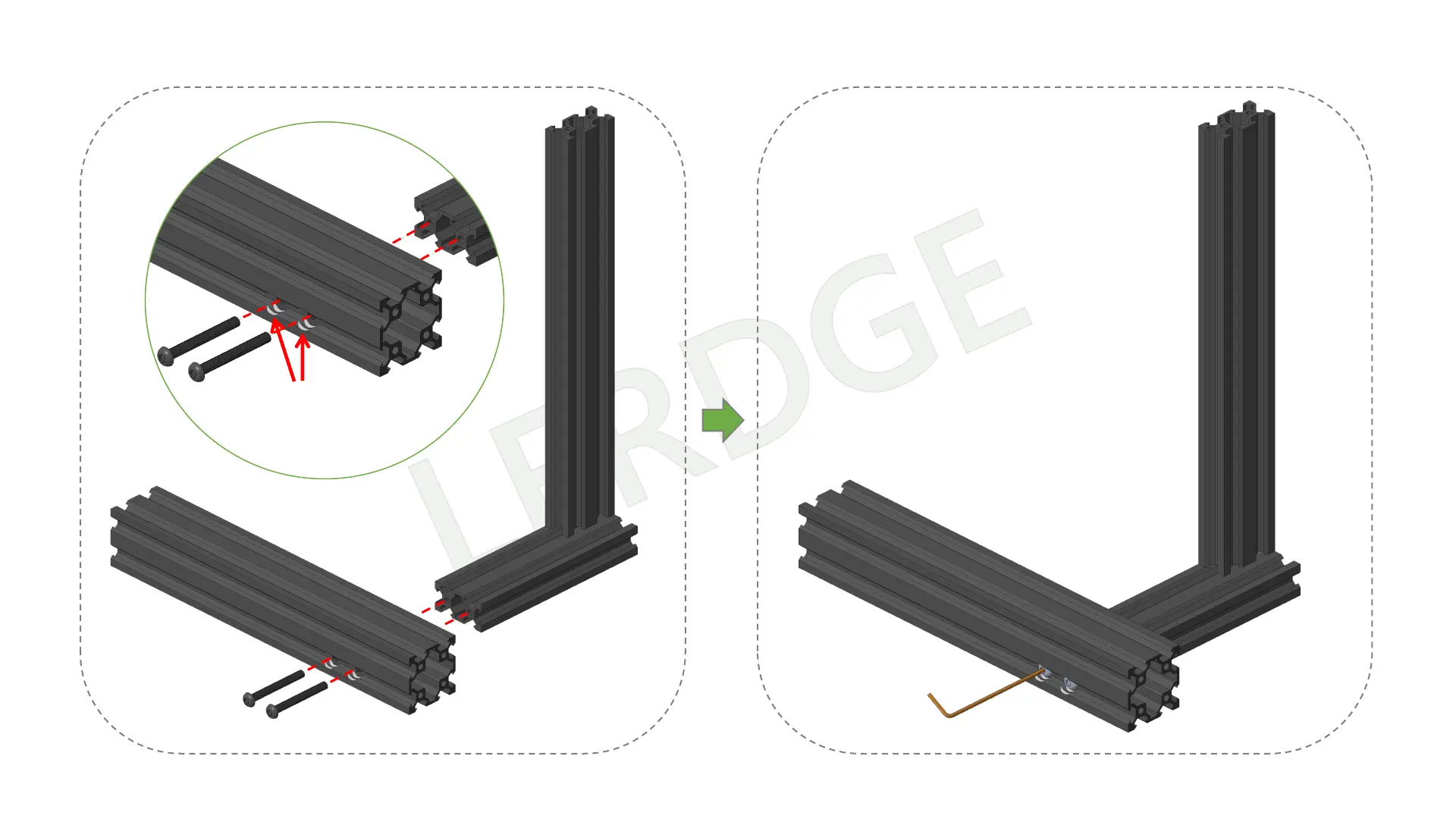

1.2-Assemble the Y-axis aluminum profile
The screw penetrates from
the side with the reamed
hole
270mm
V4040
Aluminum profile
Tips：
Press the aluminum profile on a flat
surface (such as glass, desktop) to ensure
the accuracy of the assembly, and then
tighten the screws.
Note：
Tighten the screw with moderate force,
over-tightening may cause deformation of
the V4040 profile and affect the
engagement of the Y-axis pulley. Too
looseness may cause the deformation of
frame to during use.
Button head
mechanical screw
2 x M5*45
