Leslie 3300 Owner’s Manual
SPECIFICATIONS

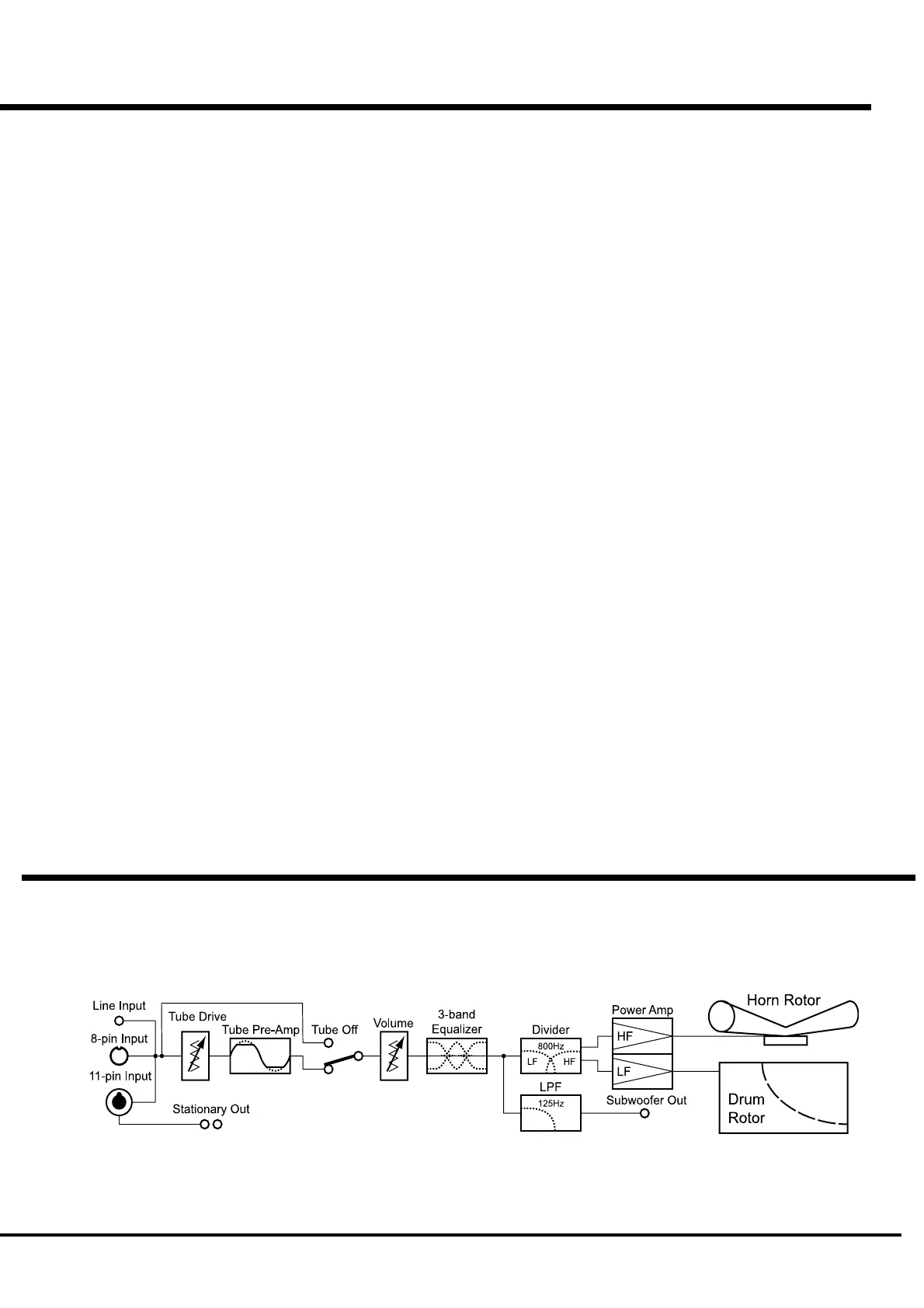

BLOCK DIAGRAM
TYPE
1-channel (Rotary Channel Only)
Real 2-Rotor
POWER OUTPUT
Horn Rotor
80Wrms
Drum Rotor
220Wrms
(total power 300Wrms)
SPEAKER
Rotary Horn Driver
Ferro-Fluid
Woofer
Massive 15” (38cm) Woofer
OVERDRIVE
Vacuum Tube 12AX7 x 1
Tube Drive Level, Tube On/Off, Tube Mode
CONTROL
EQ: Bass (100Hz ±10dB), Middle (1.7kHz ±10dB),
Treble (8kHz±10dB)
Volume, Horn Level, Sub Woofer Volume
MOTOR
Brushless DC Servo Motor x 2
ROTOR ADJUST
Horn:
Rise Time, Fall Time, Slow Speed, Fast Speed
Drum:
Rise Time, Fall Time, Slow Speed, Fast Speed
LED
Fast, Slow, Stop
CONNECTORS
Leslie 11-Pin Socket with Stationary L,R through Output,
Leslie 8-Pin,
Line Input ¼”, imped. 10kΩ sensitivity 100mV (-18dBu),
Line Out / Sub Woofer Out 0dBu,
Foot Switch (Slow/Fast/Stop)
AC Input
POWER CONSUMPTION
210W
DIMENSION
63(W) x 52(D) x 90(H) cm
24.8(W) x 20.5(D) x 35.4(H) inch
WEIGHT
57kg
125.7lbs
OPTIONAL
Leslie Cable 11-Pin
Leslie Cable 8-Pin (LC8-7M)
Foot Switch FS-9H
