LesMills SMARTBAR - Rack Assembly; Parts List

3
STORAGE RACK
ITEM PART QUANTITY
1 Spine Tube 1
2 Rear Base Tube 1
3 Front Base Tube 1
4 Hanger Tube (Centre) 4
5 Hanger Tube (Left) 3
6 Hanger Tube (Right) 3
7 Bar Hanger Tube (Left) 1
8 Bar Hanger Tube (Right) 1
9 Carriage Bolt (M8/115mm) 2
10 Carriage Bolt (M8/62mm) 38
11 Washer (M8/19mm/1.5mm) 26
12 Curve Washer (M8/19mm/1.5mm) 34
13 Nylon Nut (M8/8mm) 40

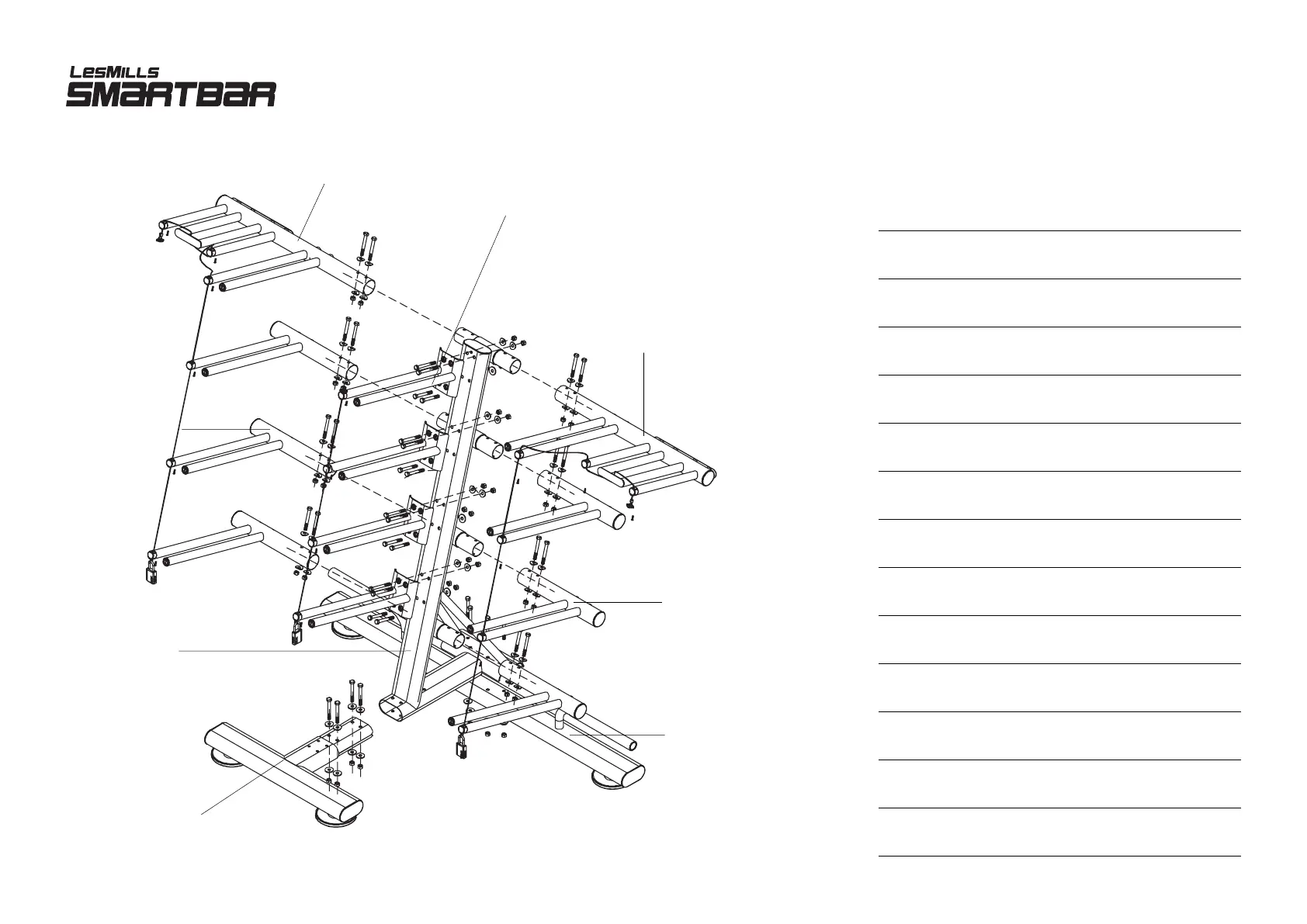

PARTS LIST
Spine Tube
Front Base Tube
Bar Hanger Tube (Right)
Bar Hanger Tube (Left)
Rear Base Tube
Hanger Tube (Left)
Hanger Tube (Right)
Hanger Tube (Centre)
