STORAGE RACK
INSTRUCTIONS
1. Remove all components from the packaging and
check against the parts list on previous page.
You will need a 5mm Allen key and a 13mm spanner.
It’s important not to tighten the fixings fully until
assembly is complete.

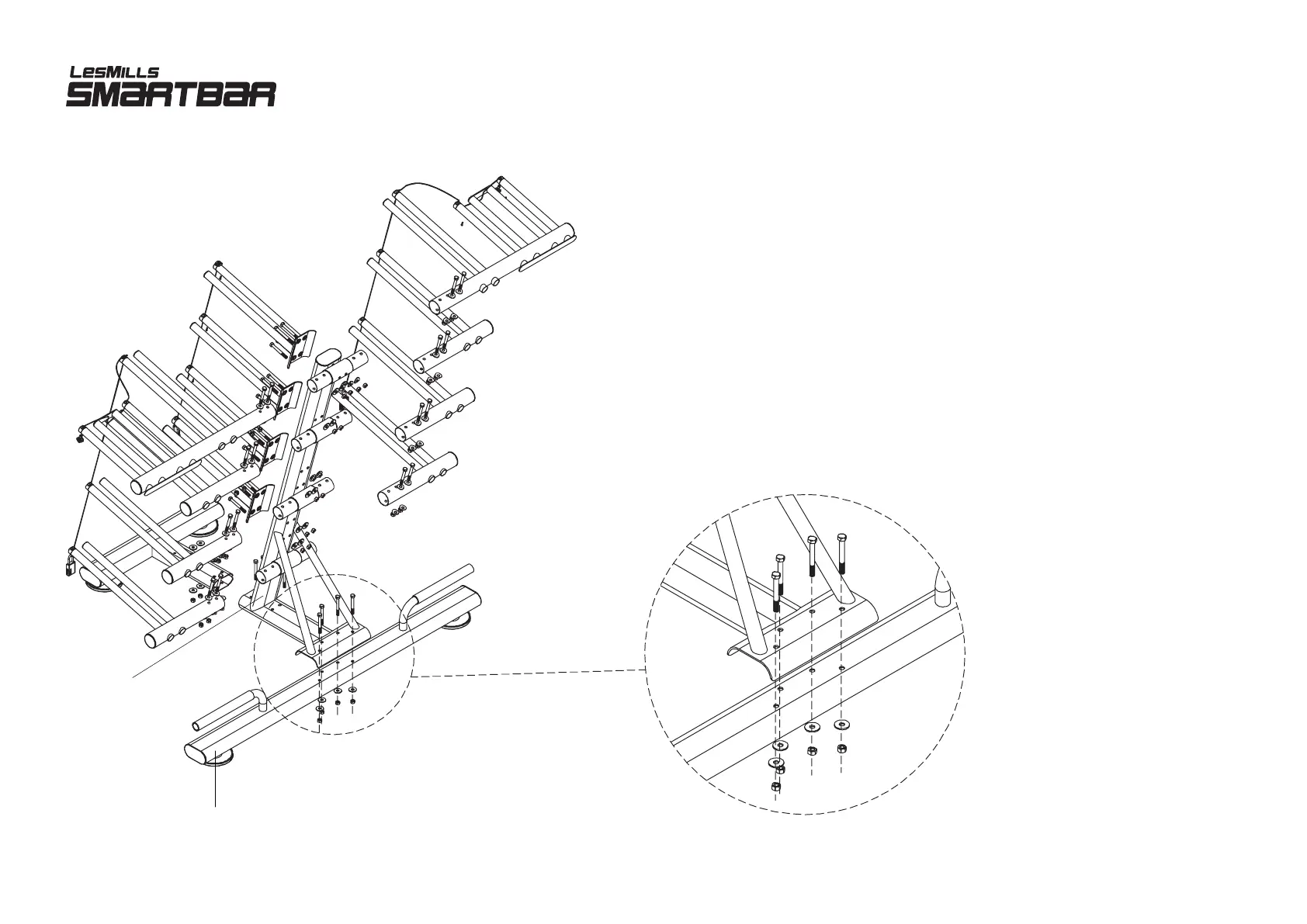

2. Attach Rear Base Tube (2) to the Spine Tube (1), and
fasten with x4 Carriage Bolts (10), x4 washer (11) and
x4 Nylon Nut (13).
Spine Tube
Rear Base Tube
To Next Page
