Lester 15510 - Technical Documentation; Wiring Diagram; Parts List

Operating Instructions 3 01316H

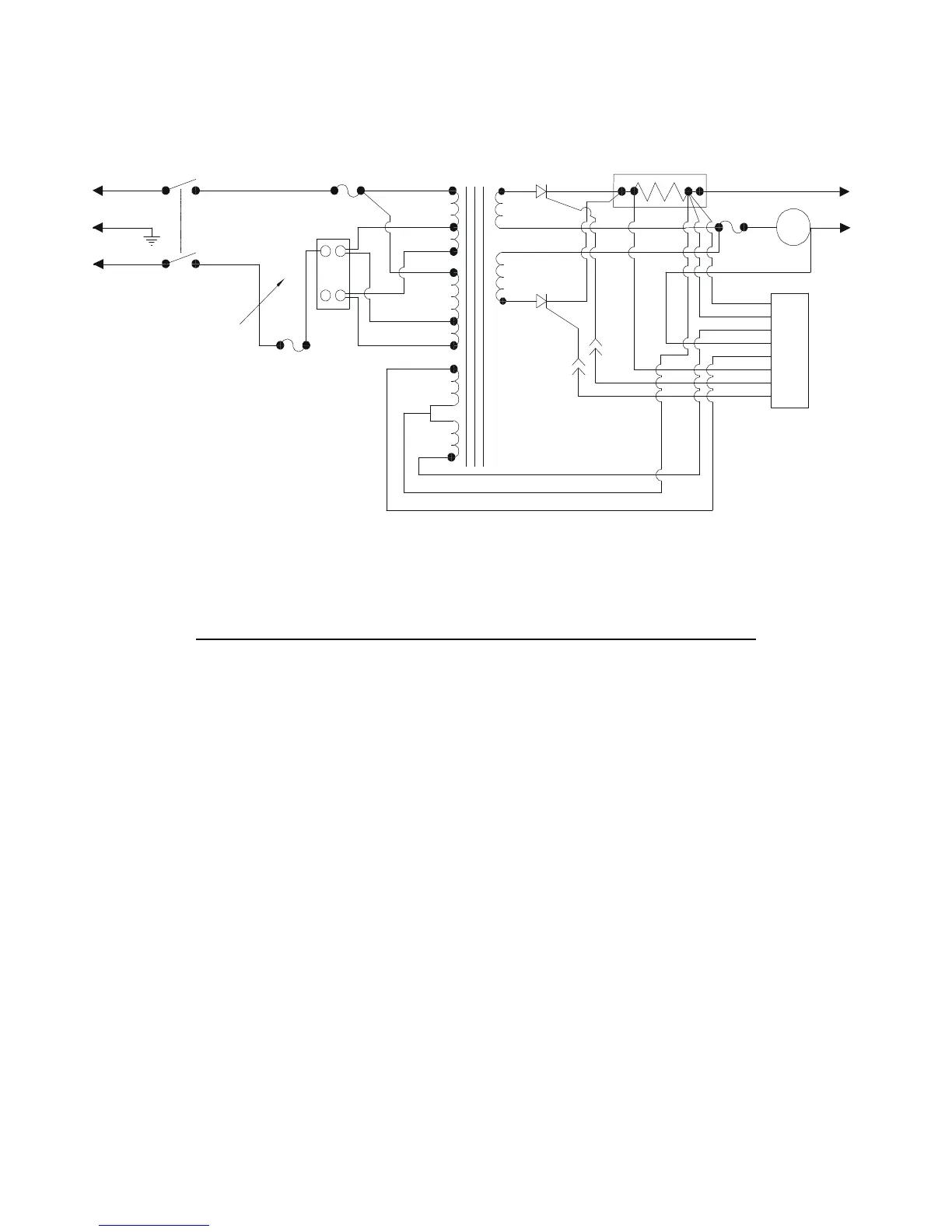

WIRING DIAGRAM
BLACK
WHITE
BLACK
BLACK
AMMETER
DC
OUTPUT
TRANSFORMER
+
-
2
3
4
BLACK
SCR
SCR
WHITE
SHUNT
DC
FUSE
BLK
RED
ORANGE
9
7
6
5
4
3
2
1
1
WHITE
BLACK
WHITE
YELLOW
BROWN
BROWN
BROWN
FUSE
FUSE
AC
AC
7
11
14
13
5
TAN
WHITE
WHITE
ELECTRONIC
TIMER
8
10
12
208
SETTING
SHOWN
BLACK
YELLOW
BROWN
BLK
200-220/221-250
GREEN
VAC INPUT
6
9
208
SETTING
240
SETTING
BROWN
TAN
TAN
WHITE
BLACK
SWITCH
ON/OFF
POWER
L2200S02
PARTS LIST FOR MODEL 15510
TYPE 72EL40-10ET 208/240 VAC / 50-60 HZ
PART NO. QTY. DESCRIPTION
19721S 1 CASE ASSEMBLY
15002S 1 COVER, BLUE
15009S 1 BASE, BLUE
15004S 2 PANEL, SIDE, LEFT OR RIGHT, BLUE
15008S 1 PANEL, REAR, BLUE
19476S 1 PLATE, MOUNTING HEATSINK
19602S 1 PANEL ASSEMBLY, FRONT, BOTTOM
19614S 1 PANEL ASSEMBLY, FRONT, TOP
19661S 2 RAIL, TRANSFORMER SUPPORT
19609S 1 PANEL, FUSE
19612S 1 PANEL ASSEMBLY, INNER MOUNTING, W/ WIRES
20712S 1 CORD BRACKET KIT
15395S 1 TRANSFORMER
16823S 1 AMMETER
19649S 2 HEATSINK ASSEMBLY W/ SCR
19648S 2 SCR ASSEMBLY, 55 AMP, 400 VOLT
16182S 1 FUSE, DC, 100 AMP, JJN-100
19702S 1 FUSEHOLDER, AC
19703S 2 FUSE, AC, 35 AMP, 250 VOLT, TYPE R
16070S 1 TIMER, ELECTRONIC
04715S 1 TERMINAL STRIP, 2 POLE
16222S 1 SWITCH, SLIDE, DPST
02008S 2 BUSHING, 8P-2, INSULATING, DC CORD
10410S 1 STRAIN RELIEF, INSULATING, AC CORD
19599S 1 CORDSET, AC, NO PLUG
20248S 1 CORDSET, AC, 250V, 30A, 6-30P PLUG
19647S 1 CONTROL CABLE ASSEMBLY
18696S 1 SHUNT, ELECTRONIC
20122S 1 CORDSET, DC, GREEN SB350 PLUG
