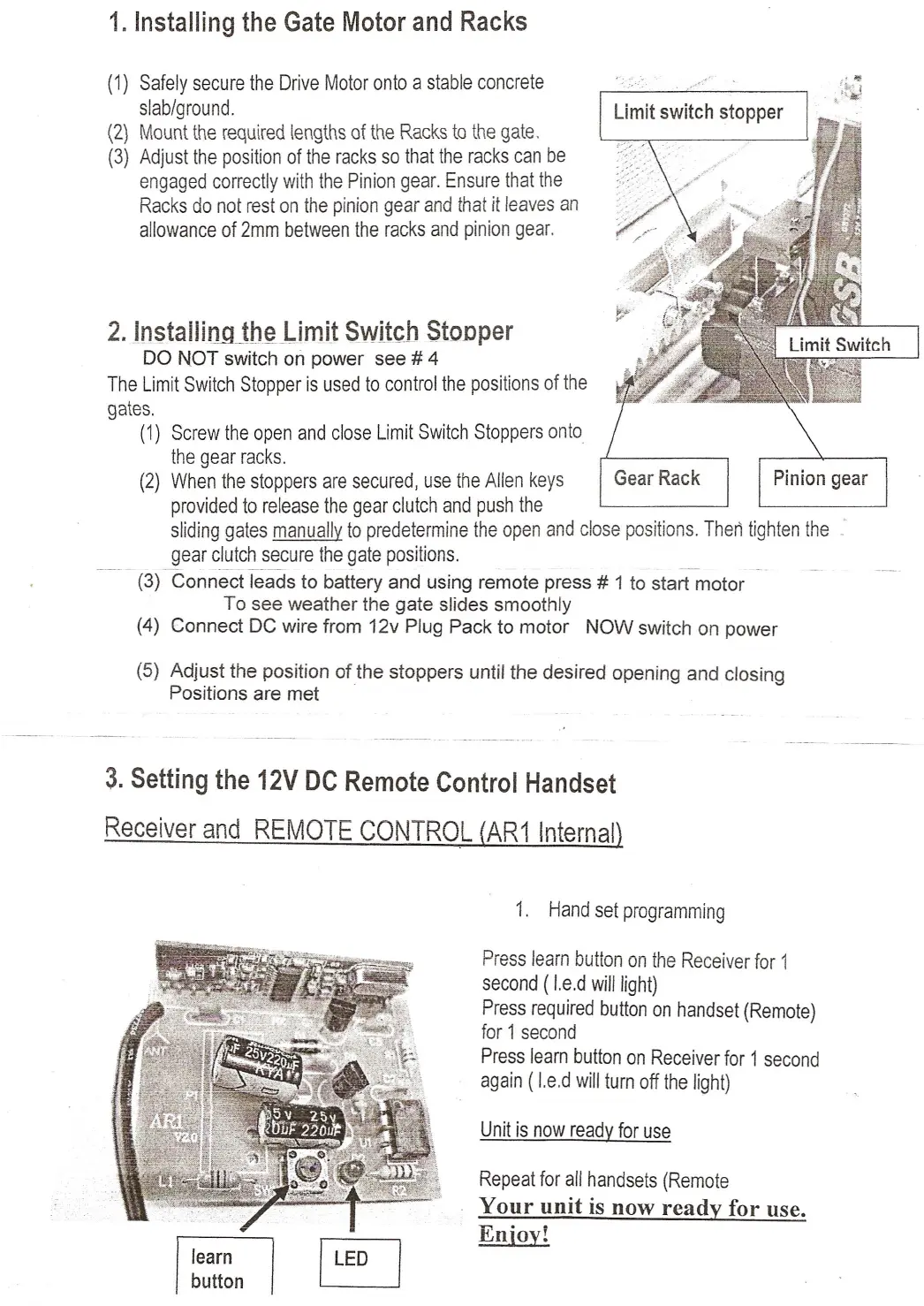

1. Installing the Gate Motor and Racks
(1) Safely secure the Drive Motor onto a stable concrete
slab/ground.
(2) Mount the required lengths of the Racks to the gate.
(3) Adjust the position of the racks so that the racks can be
engaged correctly with the Pinion gear. Ensure that the
Racks do not rest on the pinion gear and that
it
leaves
an
allowance of 2mm between the racks and pinion gear.
"
.
"r~
2.1nstaliingJh~_ljmtt Switch Stonper
DO NOT switch on power see
#
4
The Limit Switch Stopper is used to control the positions of the
gates,
(1) Screw the open and close Limit Switch Stoppers onto
the gear racks.
(2) When the stoppers are secured, use the Allen keys
provided to release the gear clutch and push the
sliding gates manually to predetermine the open and close positions. Then tighten the -'
gear clutch secure the gate positions .
..
- -------
(3) Connect leads to battery and using remote press
#
1 to start motor
To see weather the gate slides smoothly
(4) Connect DC wire from 12v Plug Pack to motor NOW switch on power
(5) Adjust the position of the stoppers until the desired opening and closing
Positions are met
3.
Setting the 12V
DC
Remote Control Handset
Receiver and REMOTE CONTROL fAR 1 Internal)
learn
button
Press learn button on the Receiver for 1
second ( !.e.d will light)
Press required button on handset (Remote)
for 1 second
Press learn button on Receiver for 1 second
again ( !.e.d will turn off the light)
Repeat for all handsets (Remote
Your unit is now ready for use.
Enjoy!
