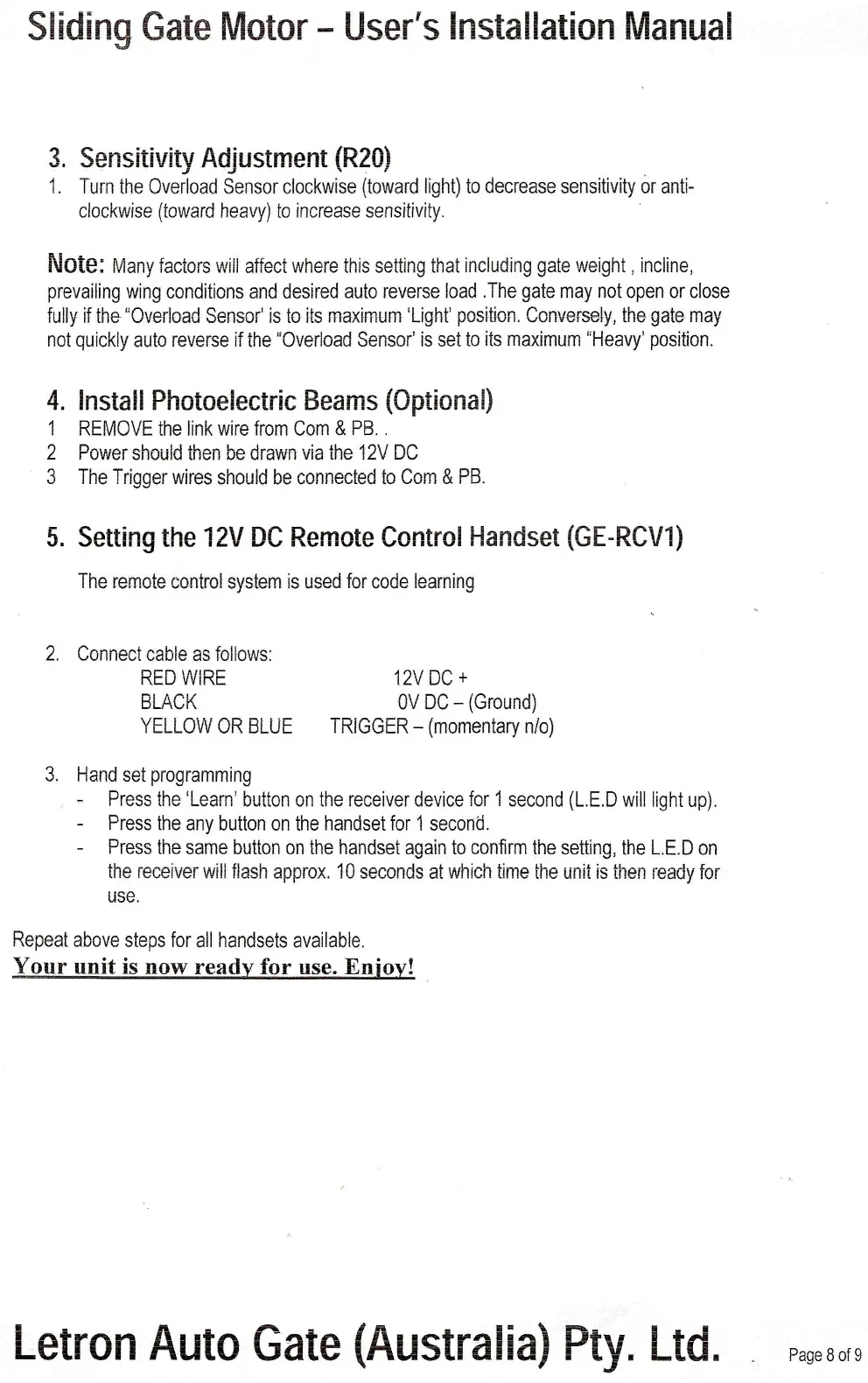

Sliding Gate Motor - User's Installation Manual
3. Sensitivity Adjustment (R20)
1. Turn the Overload Sensor clockwise (toward light) to decrease sensitivity or anti-
clockwise (toward heavy) to increase sensitivity.
Note:
Many factors will affect where this setting that including gate weight, incline,
prevailing wing conditions and desired auto reverse load .The gate may not open or close
fully if the "Overload Sensor' is to its maximum 'Light' position. Conversely, the gate may
not quickly auto reverse if the "Overload Sensor' is set to its maximum "Heavy' position.
4. Install Photoelectric Beams (Optional)
1 REMOVE the link wire from Com & PB ..
2 Power should then be drawn via the 12V DC
3 The Trigger wires should be connected to Com & PB.
5. Setting the 12V DC Remote Control Handset (GE-RCV1)
2. Connect cable as follows:
RED WiRE
BLACK
YELLOW OR BLUE
12V DC
+
OV DC - (Ground)
TRIGGER - (momentary
n/o)
3. Hand set programming
- Press the 'Learn' button on the receiver device for 1 second (L.E.D will light up).
- Press the any button on the handset for 1 second.
- Press the same button on the handset again to confirm the setting, the L.E.D on
the receiver will flash approx. 10 seconds at which time the unit is then ready for
use.
Repeat above steps for all handsets available.
Vour unit is now ready for use. Enjoy!
Letron Auto Gate (Australia) Pty. Ltd.
