5

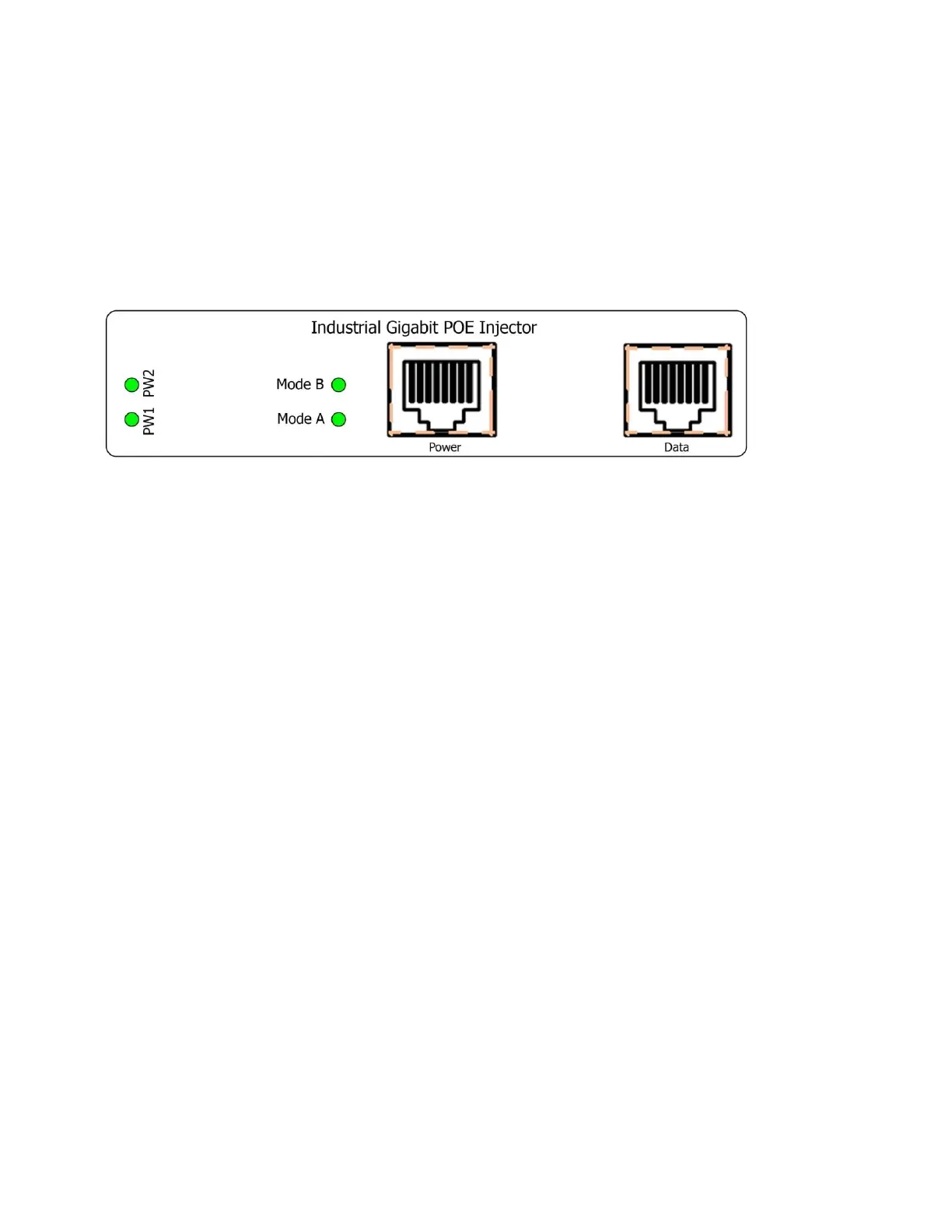

LED indicator
PW—Power 1, Power 2
Mode A Green LED ON --
For End-Span POE power 1,2,3,6
NOTE:
Mode B Green LED is only for Mode B End-Span
model. with pin assignment 4,5,7,8. This LED will
not lit on for this model.
