LevelOne FCS-5053 - Connecting Multiple Cameras

Hardware Manual
12
Connecting Multiple Cameras

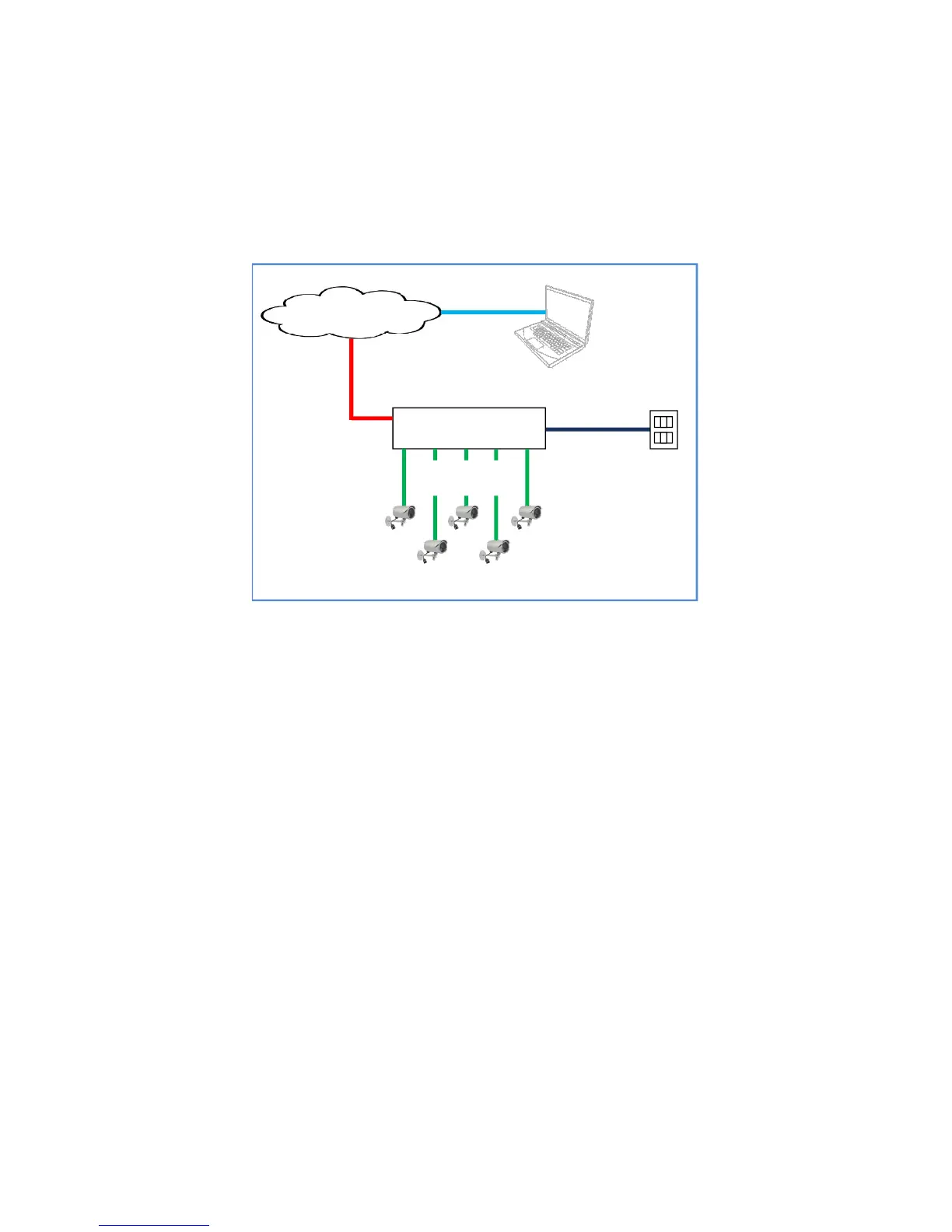

To connect multiple cameras, use a PoE switch.
1. Connect the camera(s) to the PoE switch using Ethernet cables.
2. Connect the PoE switch to a network and an AC power source.
3. Connect a PC to the same network.
Network
AC Power
Source
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data)
Cameras
Ethernet Cables
(Data+Power)
4. After making the connections, access the cameras live view to adjust the focus and
configure the camera settings according to your preference. See Accessing the Camera
on page 13 for more information.
