5. LED Description
LED Color Function
LINK/ACT Green
Lit when cable connection is good
and speed is at 1000Mbps.
Blinks when any traffic is present.
FDX Green Lit when full-duplex mode is active.
6. Network Parameter
Multi-mode Fiber Cable and Modal
Bandwidth
Multi-mode
62.5/125µ
µµ
µm
Multi-mode
50/125µ
µµ
µm
Modal
Bandwidth
Distance
Modal
Bandwidth
Distance
160MHz-Km
220m 400MHz-Km
500m
IEEE
802.3z
Gigabit
Ethernet
1000SX
850nm
200MHz-Km
275m 500MHz-Km
550m
7. Technical Specifications
Standards : IEEE 802.3z
Gigabit Ethernet 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3ad Link Aggregation
IEEE 802.1Q VLANs
IEEE 802.1p Quality of Service
Connector : 850nm SC multi-mode
Fiber Optic Cable:
62.5/125, 50/125
µ
m multi-mode
Data Transfer Mode/Speed:
Full duplex with flow control
1000Mbps speed

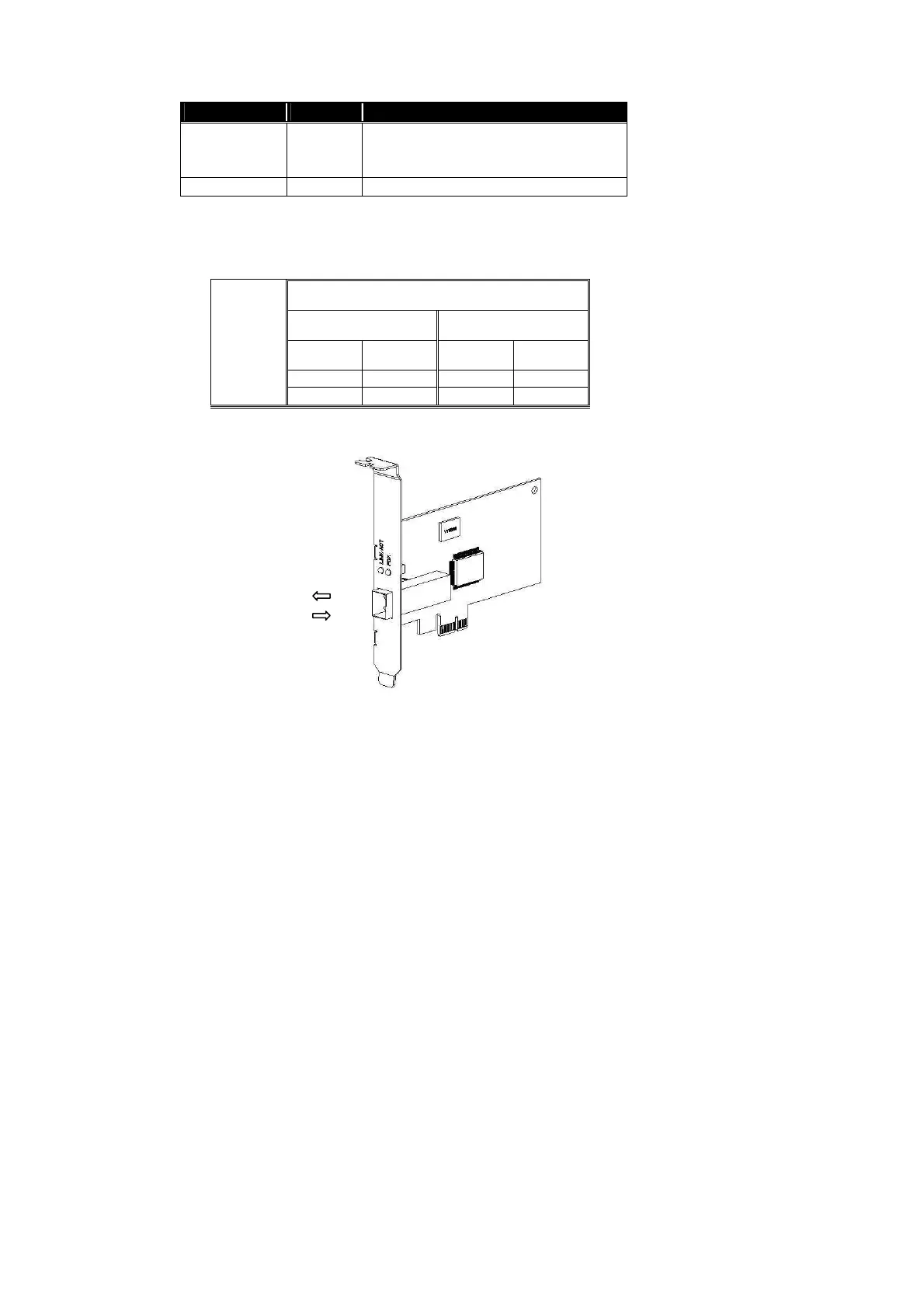

Fig. 1 Diagnostic LEDs and Bracket
TX
RX
FDX
