Placement in circuit:
The GFCI's place in the circuit determines if
it protects other receptacles in the circuit.

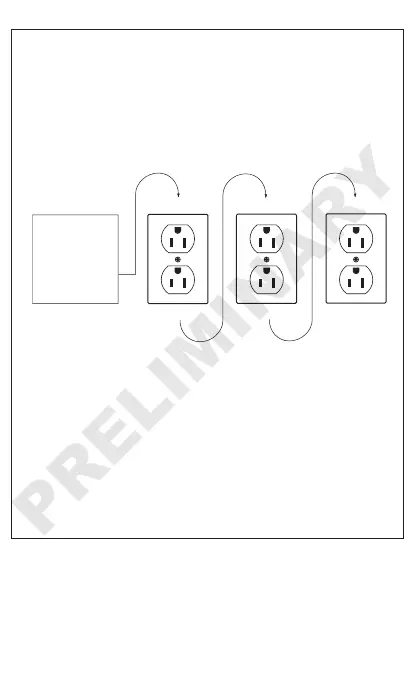

Sample circuit:
Placing the GFCI in position A will also
provide protection to "load side"
receptacles B and C. On the other hand,
placing the GFCI in position C will not
provide protection to receptacles A or B.
Remember that receptacles A, B, and C
can be in different rooms.
LINE
ABC
LOAD
Service
Panel
LOAD
LINE
LINE
