User Manual for BFS-i06
www.levitronix.com
PL-3502-00, Rev04, DCO# 24-054
This document and its content is confidential and the property of Levitronix
®
and shall not be reproduced, distributed,
disclosed or used for manufacturing or sale of Levitronix
®
products without the expressed written consent of Levitronix
®
.
12
3.2 Sound Pressure Level
The sound pressure level emitted by the BFS-i06 strongly depends on the installation, operating point, and
rotational speed. It is recommended that customers measure the sound pressure level after installation of the
fan in their setup during typical operation.
Figure 12 shows the sound pressure levels measured at Levitronix
®
. The fan was installed at a height of about
2 m above ground into a closed duct system. Measurements were taken based on Semi S2 guidelines, i.e.
1 m traversed from the setup at a height of 1.2 m and 1.5 m above ground.

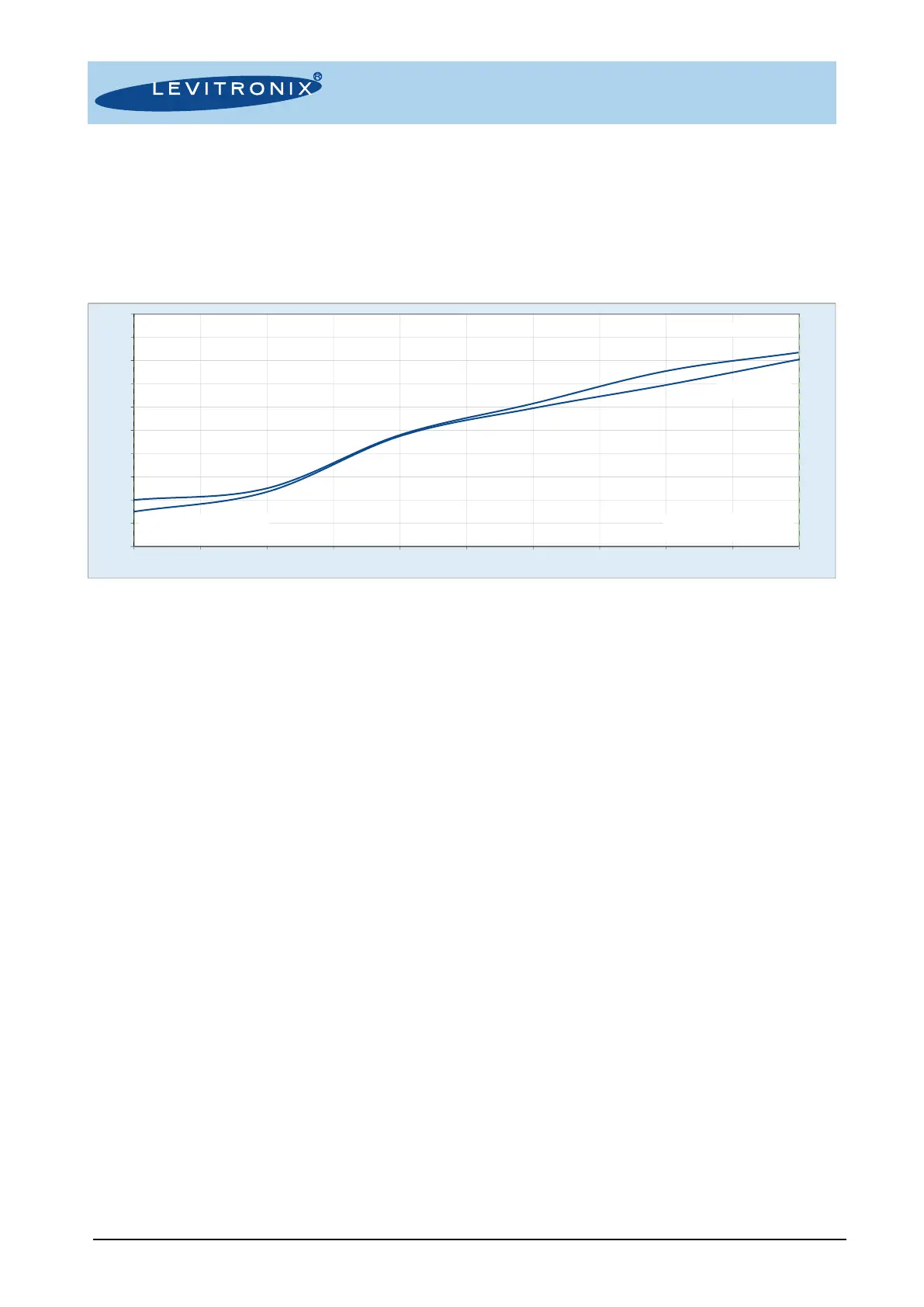

Figure 12: Sound pressure level vs rotational speed and measurement height
Note: Typical measured values of BFS-i06.1 installed in a closed duct system
50
52
54
56
58
60
62
64
66
68
70
8000 8500 9000 9500 10000 10500 11000 11500 12000 12500 13000
Sound Pressure Level / dBA
Rotational Speed / rpm
48 V Supply Voltage,
Released Performance
24 V Supply Voltage,
Released Performance
1.5 m above
ground
1.2 m above
ground
