8
Note: You can also attach the vacuum
body directly to the vacuum head
[Figure 2.4].

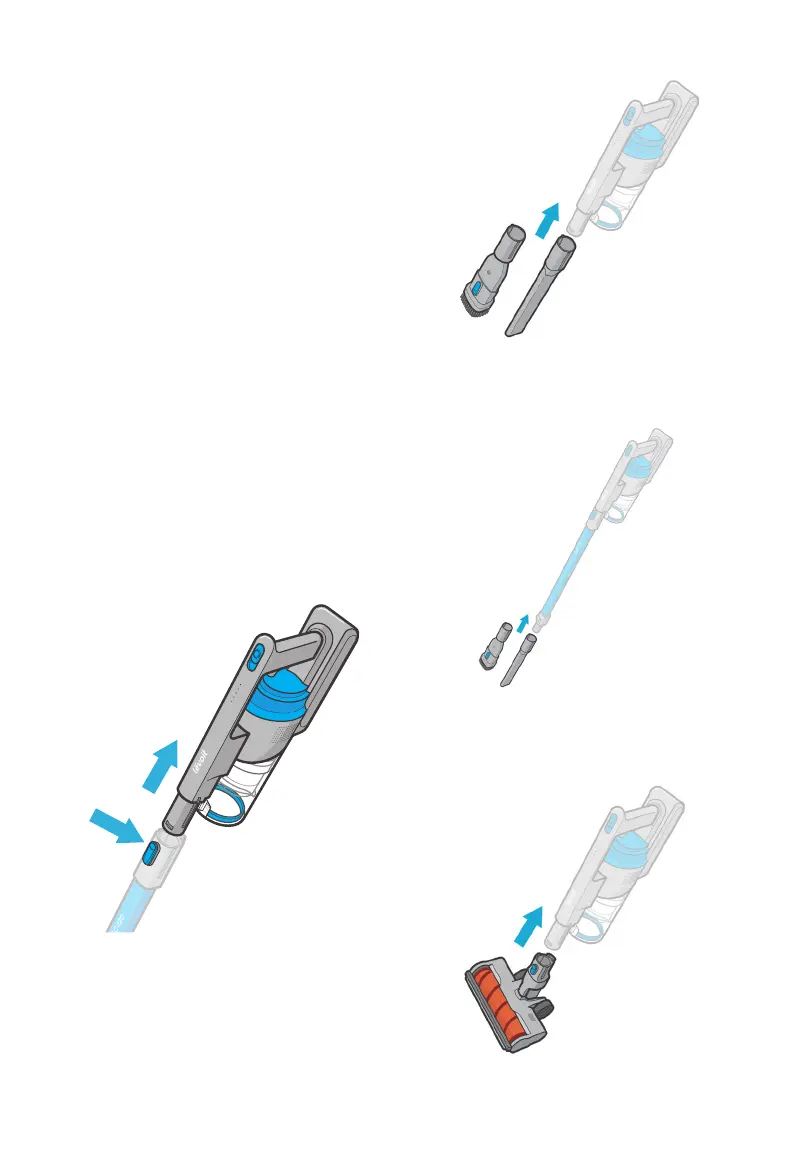

Nozzles
Your vacuum comes with attachments to
help you tackle almost any cleanup job. To
use an attachment:
1. Press and hold the vacuum body
release button and gently pull the
vacuum body from the stick [Figure 2.1].
2. Slide the crevice nozzle or 2-in-1 brush
nozzle onto the vacuum body
[Figure 2.2].
3. Optionally, leave the stick attached to
the vacuum body and press the vacuum
head release button to remove the
vacuum head. Then, attach the nozzle
or brush to the end of the stick
[Figure 2.3].
Figure 2.1
Figure 2.2
Figure 2.4
Figure 2.3
