Levoit VortexIQ 40 User Manual

8
USING YOUR VACUUM (CONT.)
Nozzle Attachments (cont.)

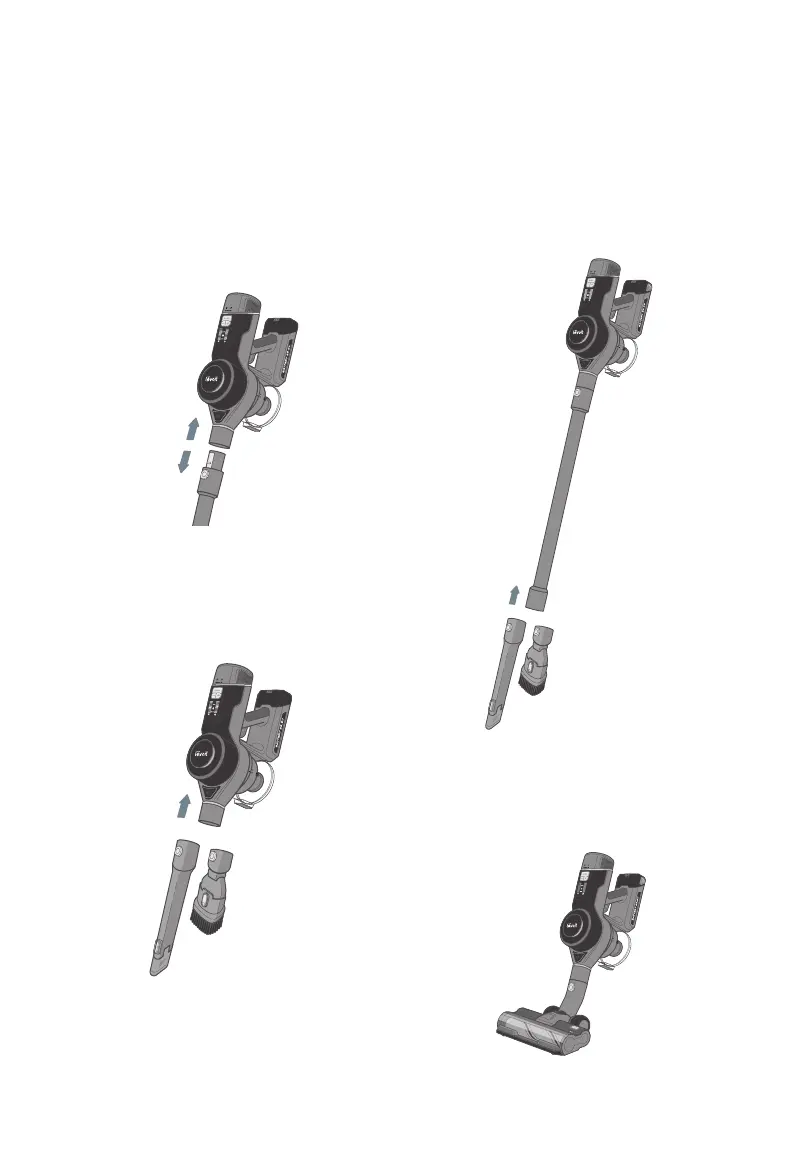

To use a nozzle attachment:
1. Press and hold the Vacuum Body
Release Button and gently pull
the vacuum body from the stick
[Figure 1.4].
Figure 1.4
Figure 1.5
Figure 1.6
Figure 1.7
2. Slide the crevice tool or dusting brush
onto the vacuum body [Figure 1.5].
3. Optionally, leave the stick attached
to the vacuum body and press the
Vacuum Head Release Button to
remove the vacuum head. Then,
attach the nozzle or brush to the end
of the stick [Figure 1.6].
Note: You can also attach the vacuum body
directly to the vacuum head [Figure 1.7].

Levoit VortexIQ 40 Specifications

General

Brush shape	Rectangular
Product type	Stick vacuum
Dust capacity	0.6 L
Product color	Gray
Dust container type	Bagless
Removable handheld vacuum	Yes
Cleaning type	Dry
Vacuum air filtering	HEPA
Dirt separating method	Cyclonic
Air filtration stages quantity	4
Motor power	400 W
Power source	Battery
Charging time	5 h
Suction power	130 AW
Battery voltage	25.9 V
AC input voltage	100 - 240 V
Battery capacity	2500 Ah
AC input frequency	50 - 60 Hz
Maximum input power	- W
Vacuum brushes included	Dusting brush

Weight and Dimensions

Depth	230 mm
Width	250 mm
Height	1170 mm
Weight	3200 g
