Lewis 150-2 - Page 32

Part No.
21-344
21-370
21-371
21-377
21-422
21-426
22-8
22-9
22-126
22-149
22-152
22-189
22-249
22-255
22-256
22-271
22-314
23-216
23-335
24-263
24-264
26-47
27-76
27-77
27-111
27-117
27-165
27-166
30-52
32-36
32-107
32-225
32-262
Plate
3, 6, 7
4
4
5
11
11
2
~~
6, 7
2
4
8
5
6
3, 6, 7
4, 5
11
2
*
4
4
3
7
7
7
7
4
4
3
4
2
8
2
31

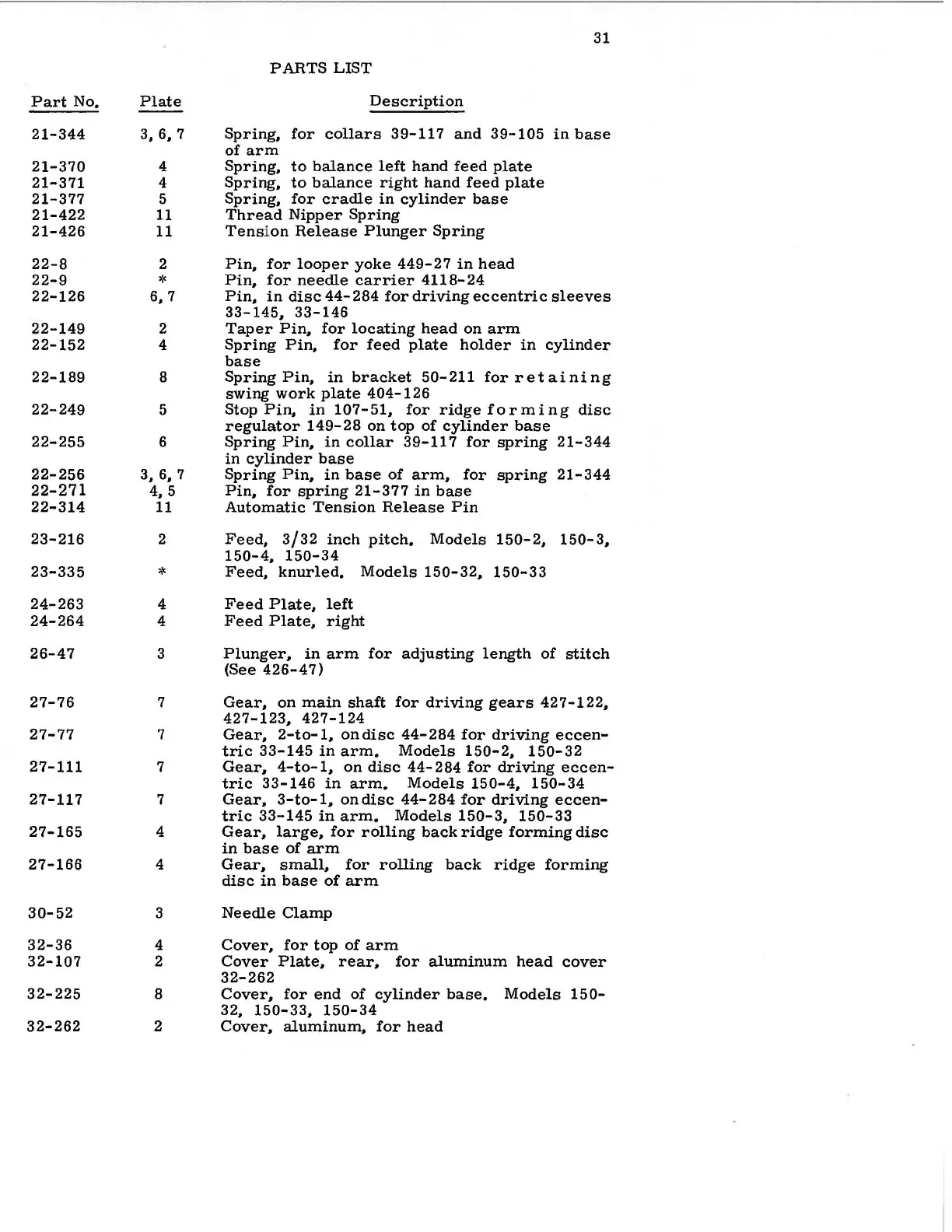

PARTS LIST
Description
Spring, for collars 39-117 and 39-105 in base
of arm
Spring, to balance left hand feed plate
Spring, to balance right hand feed plate
Spring, for cradle in cylinder base
Thread Nipper Spring
Tens i on Release Plunger Spring
Pin, for looper yoke 449-27 in head
Pin, for needle carrier 4118-24
Pin, in disc 44-284 for driving eccentric sleeves
33-145, 33-146
Taper Pin, for locating head on arm
Spring Pin, for feed plate holder in cylinder
base
Spring Pin, in bracket 50-211 for retaining
swing work plate 404-126
Stop Pin, in 107-51, for ridge forming disc
regulator 149-28 on top of cylinder base
Spring Pin, in collar 39-117 for spring 21-344
in cylinder base
Spring Pin, in base of arm, for spring 21-344
Pin, for spring 21-377 in base
Automatic Tension Release Pin
Feed, 3/32 inch pitch. Models 150-2, 150-3,
150-4,
150-34
Feed, knurled. Models 150-32, 150-33
Feed Plate, left
Feed Plate, right
Plunger, in arm for adjusting length of stitch
(See 426-47)
Gear, on main shaft for driving gears 427-122,
427-123,
427-124
Gear, 2-to-1, ondisc 44-284 for driving eccen-
tric 33-145 in arm. Models 150-2, 150-32
Gear, 4-to-1, on disc 44-284 for driving eccen-
tric 33-146 in arm. Models 150-4, 150-34
Gear, 3-to-1, ondisc 44-284 for driving eccen-
tric 33-145 in arm. Models 150-3, 150-33
Gear, large, for rolling back ridge forming disc
in base of arm
Gear, small, for rolling back ridge forming
disc in base of arm
Needle Clamp
Cover, for top of arm
Cover Plate, rear, for aluminum head cover
32-262
Cover, for end of cylinder base. Models 150-
32, 150-33, 150-34
Cover, aluminum, for head
