Lewmar 44 - Wiring Diagram Single Speed 40 to 48 - 12 V & 24 V

Page 13
ELECTRICAL CONNECTIONS
ELEKTRISCHE VERBINDUNGEN • BRANCHEMENTS • ELECTRIQUE • CONEXIONES
ELECTRICAS • ELEKTRISKA ANSLUTNINGAR
2
1
5
6
4
3

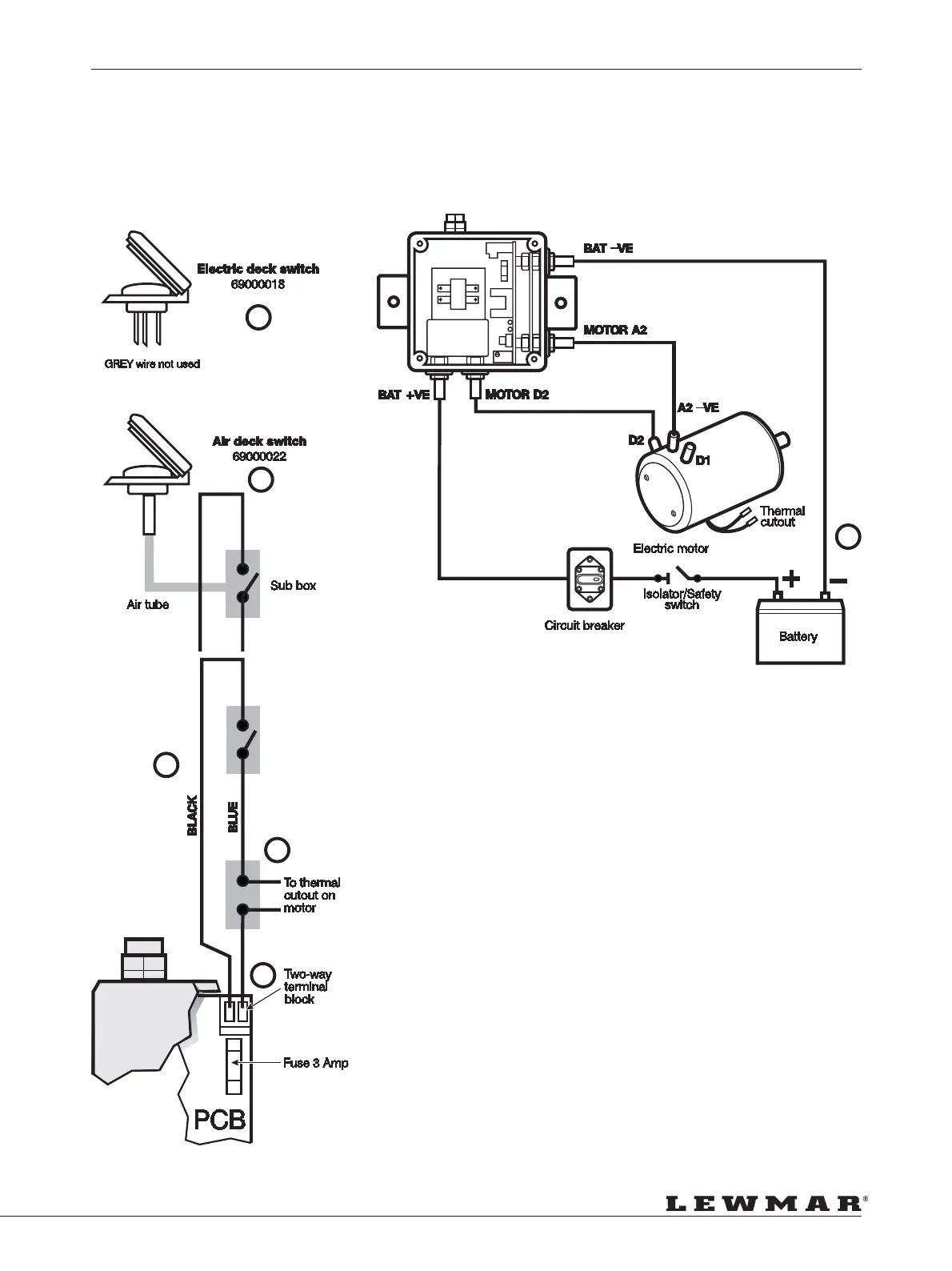

Deck Switch Wiring
Single Speed Winches 40 to 48, 12V & 24V Ref: WSD 0873
