Page 22

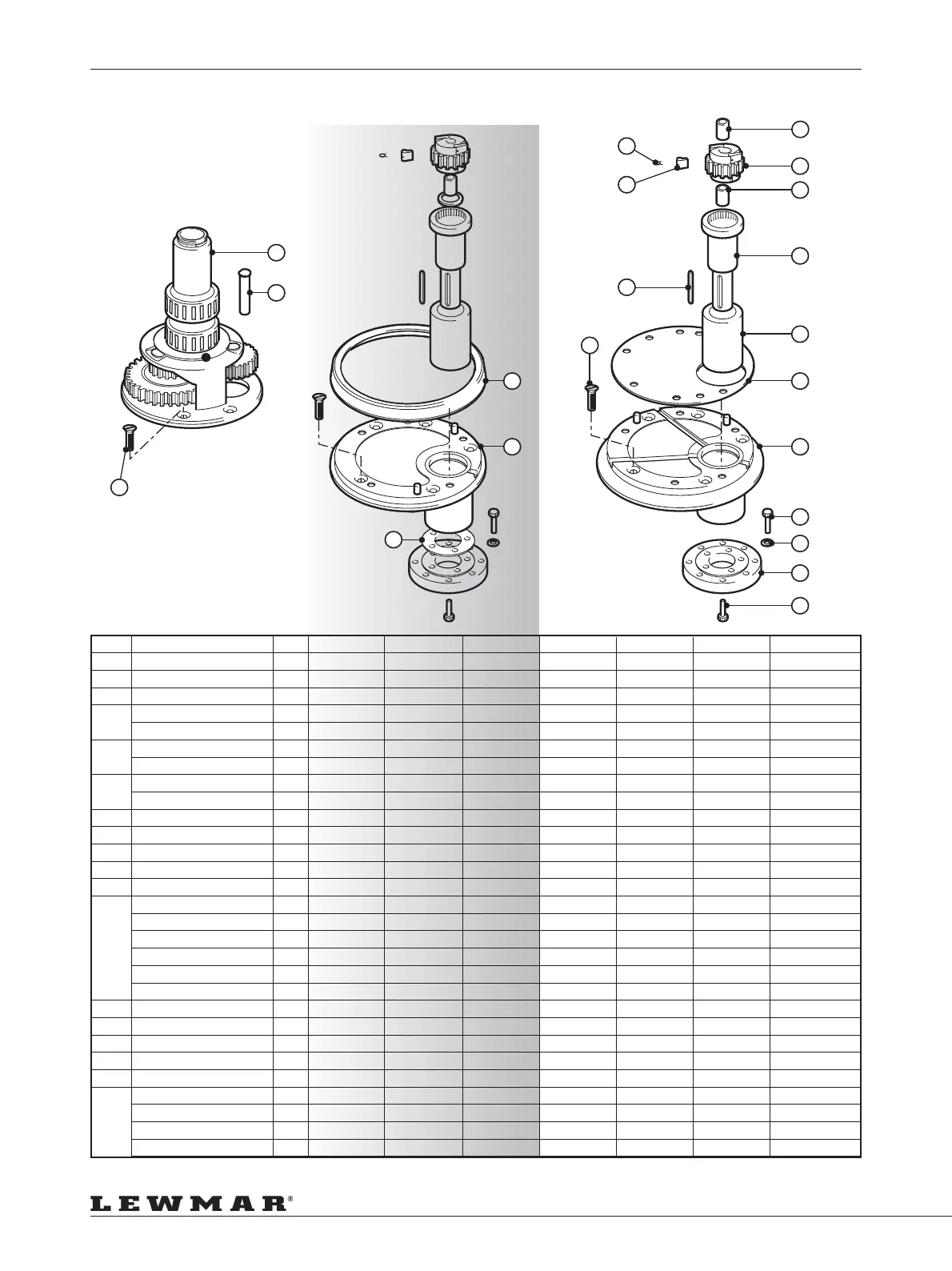

PARTS LIST - MODELS 40 TO 64
TEILE-LISTE • LISTE DES PIECES • DESPIECE • RESERVDELSLISTA
Item Description Qty. 40 44 48 50 54 58 64
1 Centre Stem 1 45000237 45000337 45000437 45000547 45000647 45000747 45000857
2 Gear Spindle 1 45000244 45000344 45000444 45000544 45000744 45000744 45000744
3 Rachet Pawl Gear 1 45000242 45000342 45000342 45000542 45000642 45000742 45000842
4 Pawl 4 15000094 15000094 15000094 15000301 15000301 15000301 15000301
Spring 4 1260/7 1260/7 1260/7 1260/7 1260/7 1260/7 1260/7
5 Bearing 2 15000378 - - - - - -
Bearing 3 - 15000398 15000398 15000017 15000017 15000017 15000017
6 Bearing 1 45000029 45000029 45000029 - - - -
Bearing 2 - - - 45003103 45003103 45003103 45003103
7 Drive Shaft 1 45000357 45000357 45000357 45000543 45000543 45000543 45000543
8 Key 1 15003287 15003287 15003287 15003287 15003287 15003287 15003287
9 Plain Bearing 1 45003287 45000358 45000358 45000248 45000248 45000248 45000248
10 Insulation Shim 1 - - - 45000549 45000549 45000749 45000749
11 Insulation Shim 1 45000257 45000257 45000257 - - - -
12 Base Plate 1 45000228 45000328 45000428 45000540 45000640 45000740 45000740
Plain Bearing 1 45003287 45000358 45000358 45000248 45000248 45000248 45000248
Dowel 2 45000235 45000235 45000235 45000581 45000581 45000581 45000581
M6x1 1/2D Helicoil (40) 5(2) - - - B2419 B2419 B2419 B2419
M6x2D Helicoil (50,54) 5(6) - - - B2429 B2429 B2424 B2424
Shaft Seal 1 B6234 B6234 B6234 B6235 B6235 B6235 B6235
13 Base Plate Cover 1 45000229 45000329 45000429 - - - -
14 HEX Bolt M8x25 4 B0173 B0173 B0173 B0173 B0173 B0173 B0173
15 Washer M8 4 B1207 B1207 B1207 B1207 B1207 B1207 B1207
16 Plate 1 45000350 45000350 45000350 45000350 45000350 45000350 45000350
17 SKT HD screw M6 x 12 5 B0678 B0678 B0678 B0678 B0678 B0678 B0678
18 CSK HD screw M6 x 16 5 B0524 - - - - - -
CSK HD screw M8 x 16 6 - B0536 B0536
CSK HD screw M8 x 25 6 - - - B0812 B0812 - -
CSK HD screw M10 x 25 5 - - - - - B0567 B0567
1
2
18
13
12
11
4
5
3
6
7
4
8
18
9
10
12
14
15
16
17
