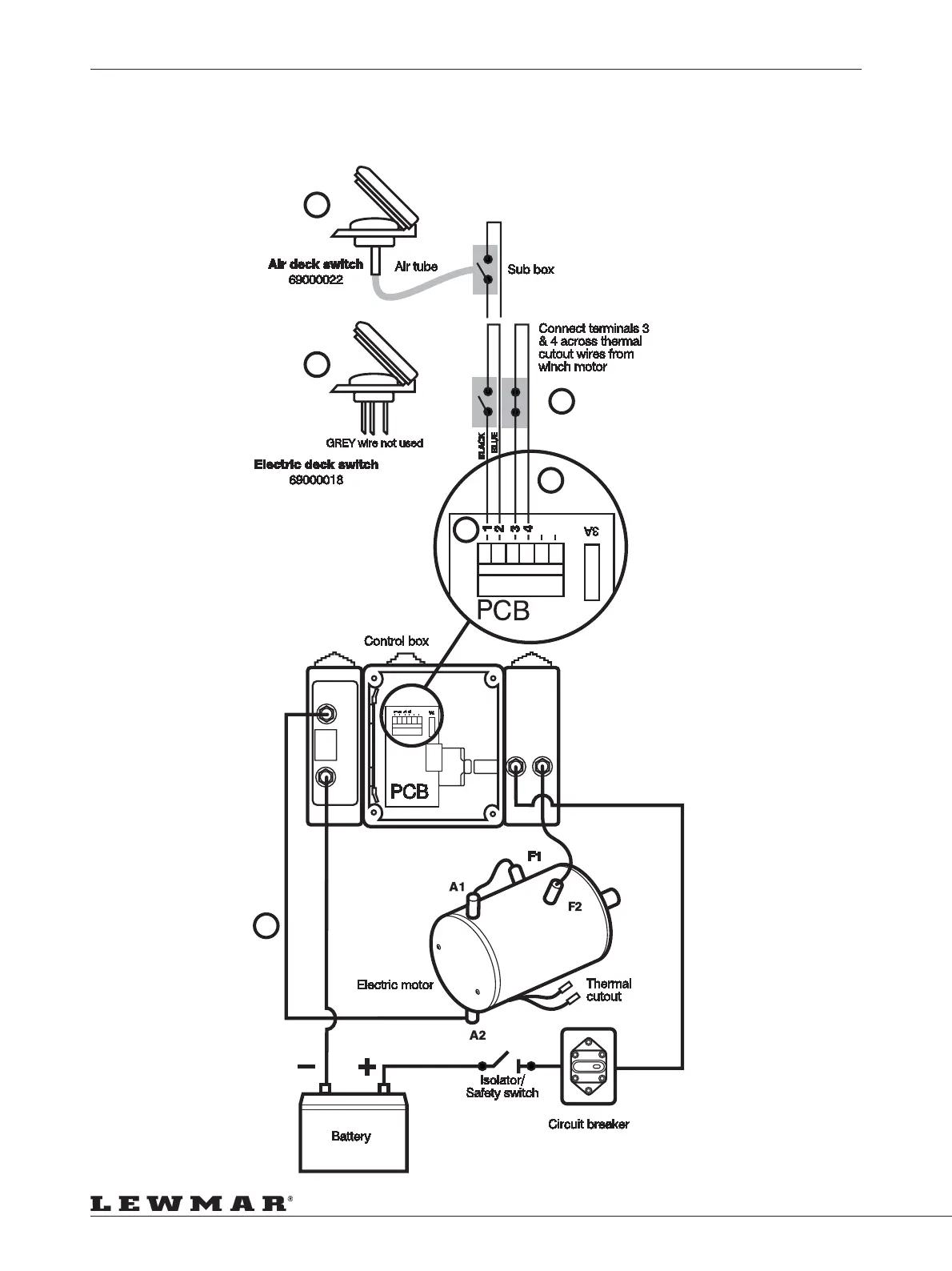

Lewmar 77 - Wiring Diagram: Single Speed 50-64

Page 14
1
2
4
6
3
5
5
6
5
6
MOTOR +VE
BATT +VE
BATT --VE
MOTOR --VE
ELECTRICAL CONNECTIONS
ELEKTRISCHE VERBINDUNGEN • BRANCHEMENTS • ELECTRIQUE • CONEXIONES
ELECTRICAS • ELEKTRISKA ANSLUTNINGAR
Single Speed Winches 50 to 64, 12V & 24V
