Page 18
ELECTRICAL CONNECTIONS • ELEKTRISCHE VERBINDUNGEN • BRANCHEMENTS ELECTRIQUE •
CONEXIONES ELECTRICAS • ELEKTRISKA ANSLUTNINGAR

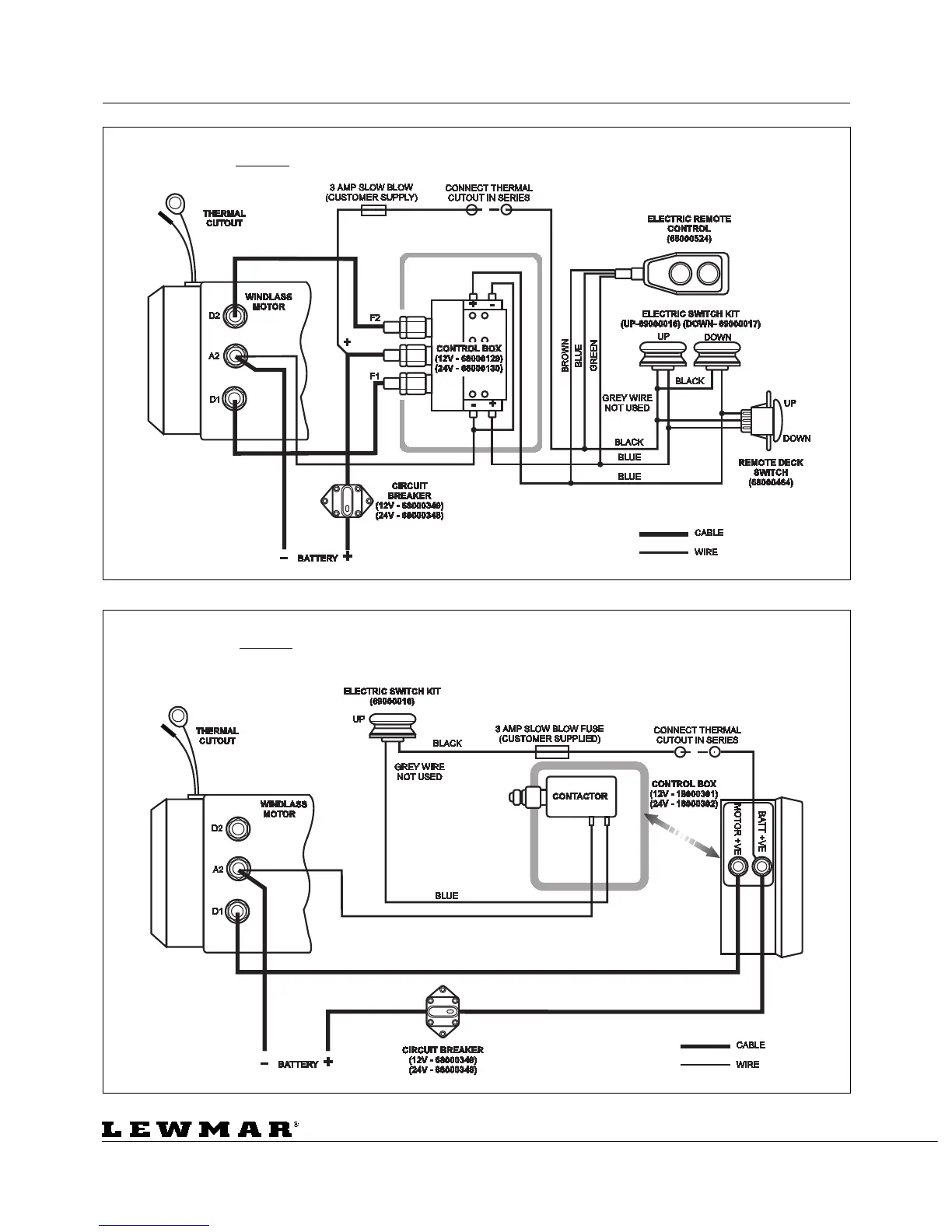

Concept/Ocean/Capstan 1 & 2 12v/24v
Split Field Single Direction Control Box Wiring Diagram - WSD 0875
Concept/Ocean 1 & 2 12v/24v
Split Field Dual Direction Control Box Wiring Diagram - WSD 0875
