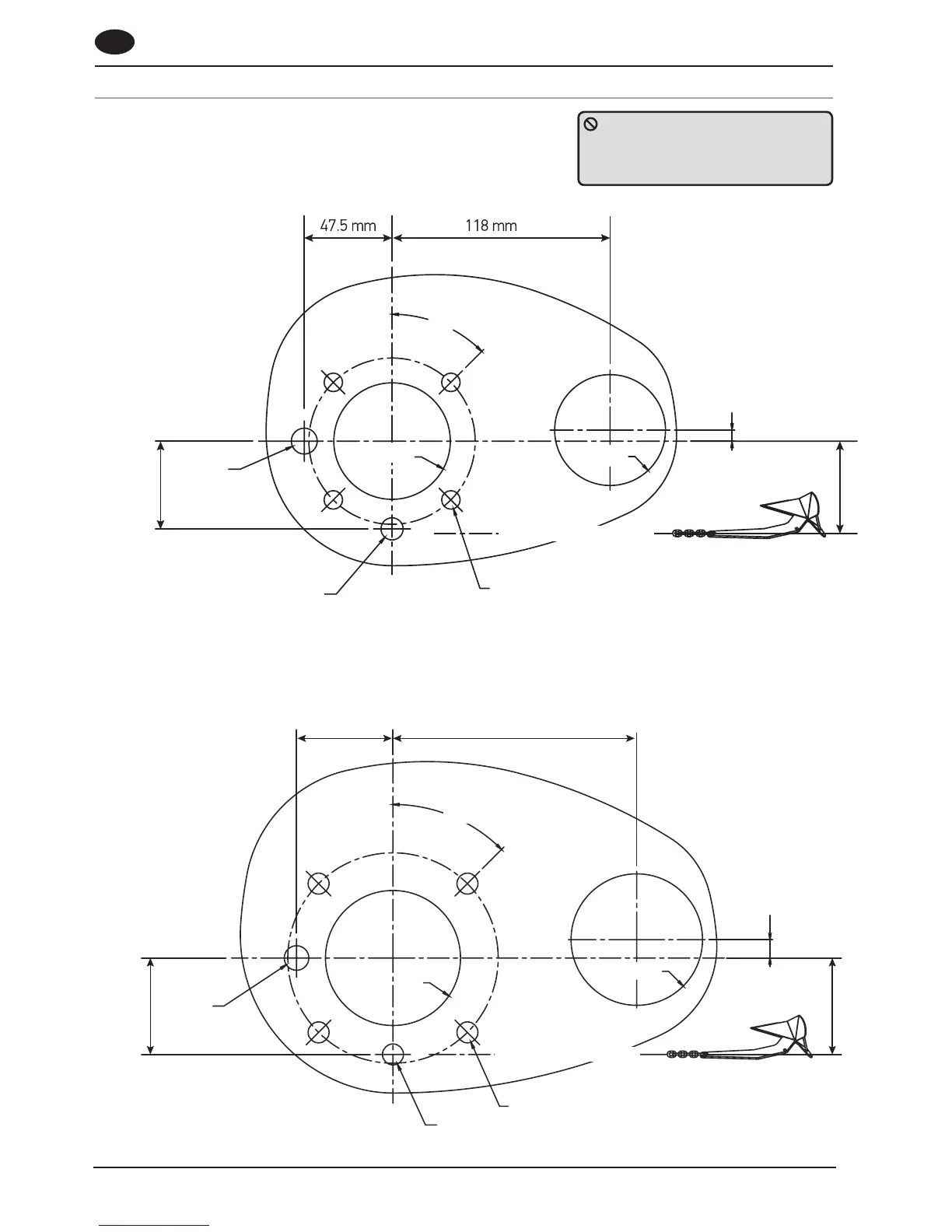

CPX1,2-3 Gen 2 Deck Mounting Detail
CPX4-5 Gen 2 Deck Mounting Detail
GB
7.3 Deck template guide
DO NOT use this template as a
cutter. It is supplied as a guide
only. Check before drilling holes.
