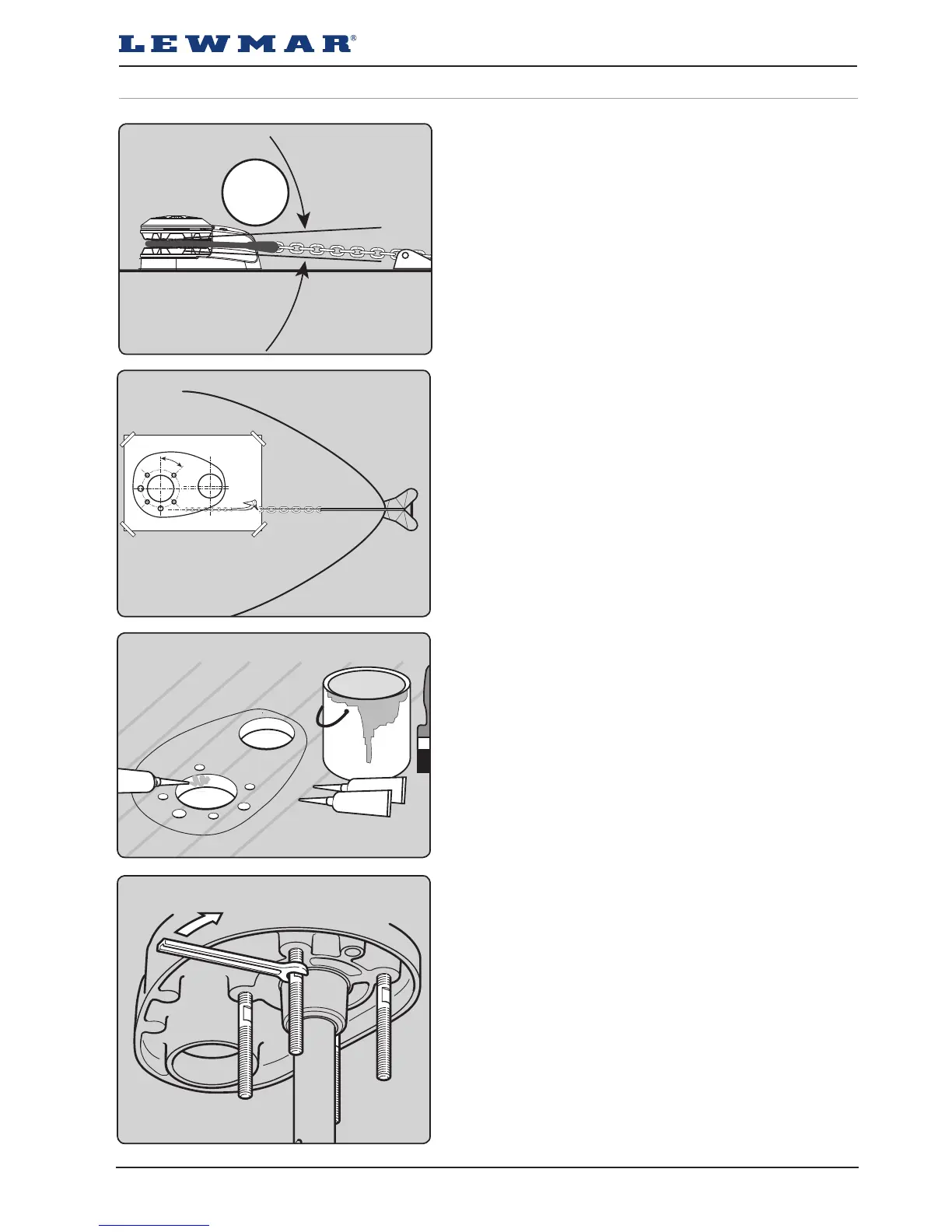

3.7 Above deck fitting
2. Using your template and aer you have checked all
the above and below deck requirements cut the
following holes.
CPX 1-3
Using a 10mm (⅜”) diameter drill, make the 4 holes
for the mounting studs, 12mm (¹⁵/₃₂”) and 14mm
(⁹/₁₆”) for the sensors. With a 63mm (2 ½”) and 57mm
(2 ¼”) diameter hole saw, make two holes for the
mainsha and rode to pass through.
CPX 4-5
Using a 12 mm (¹⁵/₃₂”) diameter drill, make the 4 holes
for the mounting studs, 12mm (¹⁵/₃₂”) and 14mm (⁹/₁₆”)
for the sensors. With a 77mm (3”) and 70mm (2¾”)
diameter hole saw, make two holes for the mainsha
and rode to pass through.
1. Lead from the roller should be fed horizontally back
to the top of the gypsy and along its centre line
within ±5˚.
3. When all the holes have been made, remove the
template. To help avoid water absorption by the
deck, apply an appropriate marine sealant to the
freshly cut hole edges.
4. Assemble and tighten studs into base until they
bottom out in their holes. Some studs have a flat.
Position the flats of the studs nearest the base of
the windlass.
 CPX 1-3 - Studs 21Nm
 CPX 4-5 - Studs 43Nm
