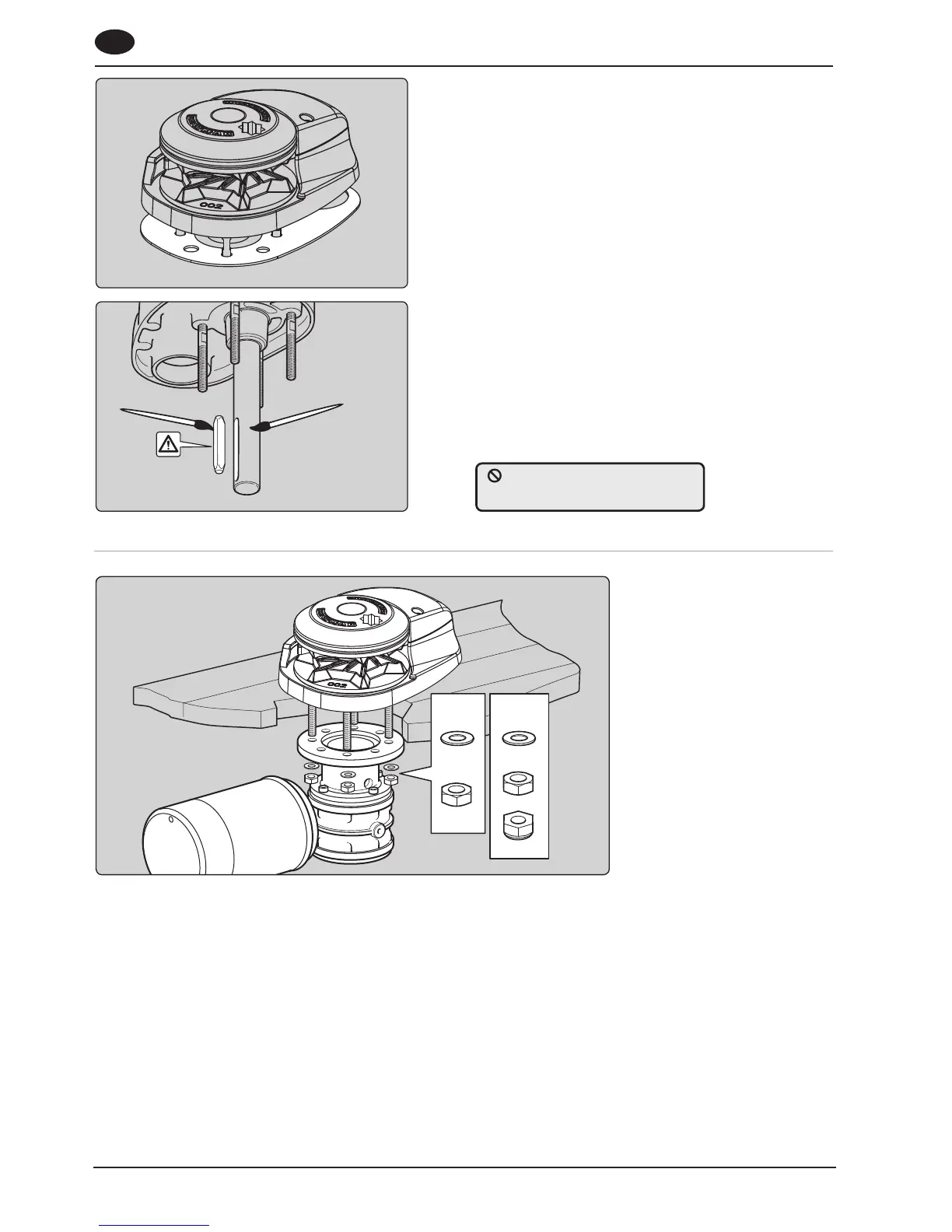

Lightly grease all moving parts.
1. Ensure drive key is in place then gently slide the motor/gearbox up the drive sha until it contacts the deck.
NOTE: Position the motor/gearbox away from the rope/chain pipe fall.
2. Check the motor/gearbox and windlass mounting surfaces are parallel.
CPX 1-3 - Assemble the washer then the M8 nut, secure with Loctite® threadlock to 21Nm torque.
CPX 4-5 - Assemble the washer then the M10 nut, secure with Loctite® threadlock to 43Nm torque. Lock
tightened nut with spanner and then secure with the M10 Nyloc nut.
NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before final
tightening of the mounting nuts.
4. Place the base mat in position on the deck.
Optionally, apply a suitable sealant to the base of
the windlass, any mounting pad or around the studs.
NOTE: If using silicone or other rubbery type sealant,
it is advisable to allow curing of the sealant before
final tightening of the mounting nuts.
5. Lightly coat the sha with grease and ensure the
drive key is in place before assembly to
motor/gearbox.
DO NOT use a permanent
adhesive/sealant eg.5200
3.8 Under deck fitting
