Lewmar V6 Owner's Manual

Lewmar V1-6 & SPORT Windlass | 30

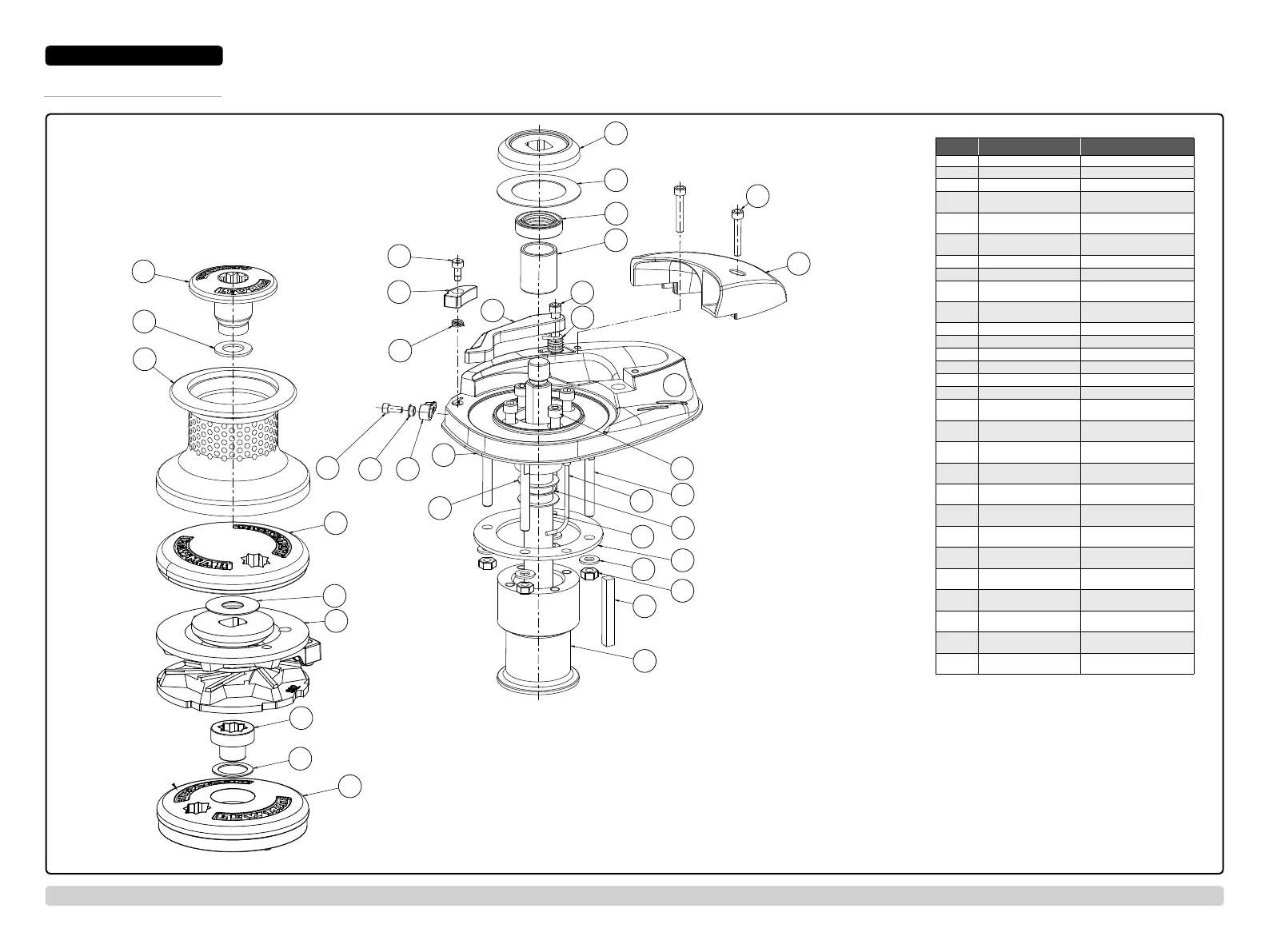

7.8 V2 & V3 Parts list
40
39
38
22
31
33
19 18
4
28
12
29
32
20
21
1
14
9
27
26
17
13
7
8
3
35
2
11
34
15
29
16
24
4
25
5
23
Kit No. DESCRIPTION Items Included (Qty.)
66000060
Cap Kit 22(1), 5(1)
66000624
V1/2/3 Base 3(1), 10(1), 35(1)
66000625
Chain Pipe Cover 11(1), 34(2)
66000626
Fastener Kit
1(1), 2(1), 4(3), 5(1), 6(1), 8(1),
17(1), 28(1), 33(1), 34(2)
66000641
Drive Kit V2/3 Gypsy Only
1(1), 2(1), 3(1), 4(3), 5(1), 14(1),
15(2), 17(1), 35(1)
66000628
Manual Recovery Pawl Kit
(Fall Safe)
12(1), 18(1), 19(1), 28(1),
29(1), 33(1)
66000640
Drum Kit V2/3 Fast Fit 38(1), 39(1), 40(1)
66000065
Drum Top Nut 39(1), 40(1)
66000642
Drive Kit V2/3 Gypsy Drum
1(1), 2(1), 3(1), 4(3), 5(1), 14(1),
15(2), 17(1), 35(1)
66000631
Mounting Kit (Metric)
9(1), 16(1), 20(1),
26(4), 27(4)
66000632
Fast Fit Assembly 36(1), 37(1)
66000633
Deck Spacer Kit 13(1), 32(4)
66200076
Sensor & Magnet Kit 21(1), Magnet(1)
66810030
Control Arm Kit 7(1), 8(1), 23(1)
66810065
Motor Gearbox Kit 17(1), 30(1), 36(1), 37(1)
66840054
Manual Recovery Kit (Gypsy Only) 4(1), 24(1), 25(1)
68000360
V Range Gypsy & Stripper
Kit (000)
31(1), Magnet(1)
68000361
V Range Gypsy & Stripper
Kit (001)
31(1), Magnet(1)
68000362
V Range Gypsy & Stripper
Kit (002)
31(1), Magnet(1)
68000363
V Range Gypsy & Stripper
Kit (003)
31(1), Magnet(1)
68000813
12 V V2 Fast-Fit Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000814
24 V V2 Fast-Fit Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000815
12 V V3 Fast-Fit Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000816
24 V V3 Fast-Fit Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000817
12 V V2 M/O Ride Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000818
24 V V2 M/O Ride Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000819
12 V V3 M/O Ride Motor Gearbox
Assembly
30(1), 36(1), 37(1)
68000820
24 V V3 M/O Ride Motor Gearbox
Assembly
30(1), 36(1), 37(1)
66840056
V2/3 Gypsy/Drum Manual
Recovery Kit
Not Shown
