Lewmar V1-6 Windlass ref 65001201 iss.8 | 9
4.9-1
4.9-2
43 Nm
4.8-1 4.8-2
4.8-3

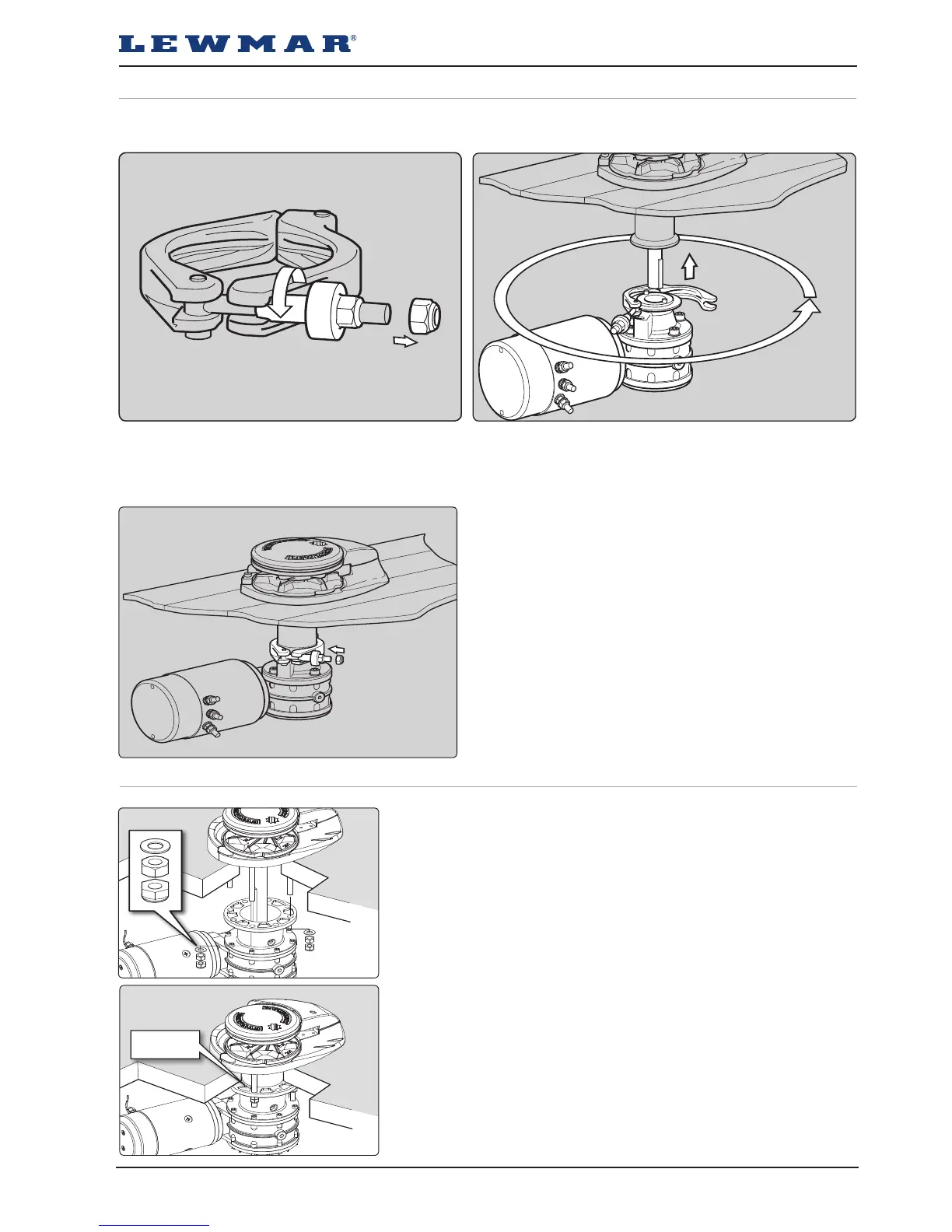

4.8 V1-3 Under deck fitting
1. Remove the Nyloc nut from the end of the Fast Fit
clamp bolt and screw the bronze nut up to the end
of the thread.
2. Open up the Fast Fit clamp and offer the gearbox
up to the above deck unit, sliding the sha into the
gearbox. Ensure the drive key is in place.
3. Slide the gearbox up the sha and rotate it into a
suitable position before finally pushing home onto the
location dowels.
Swing the Fast Fit clamp shut and tighten up the
bronze nut by hand. If required you can remove the
plastic location plug holding the Fast Fit clamp in place
and rotate the clamp around the gearbox flange to give
a better location for tightening up the nut.
Tighten up the bronze nut to 15 Nm (11 lb/) before
adding the Nyloc nut. Tighten the Nyloc nut up behind
the bronze nut.
4.9 V4-5 Under deck fitting
Lightly grease all moving parts.
1. Ensure drive key is in place then gently slide the motor/
gearbox up the drive sha until it contacts the deck
NOTE: Position the motor/gearbox away from the rope/
chain pipe fall.
2. Check the motor/gearbox and windlass mounting
surfaces are parallel. Assemble the M8 nut first, secure
with Loctite® threadlock to 43 Nm torque. Lock tight-
ened nut with spanner and then secure with the M8
Nyloc nut.
NOTE: If using silicone or other rubbery type sealant, it
is advisable to allow curing of the sealant before final
tightening of the mounting nuts.
Lightly grease all moving parts.
