CP-1 Digital Audio Environment Processor

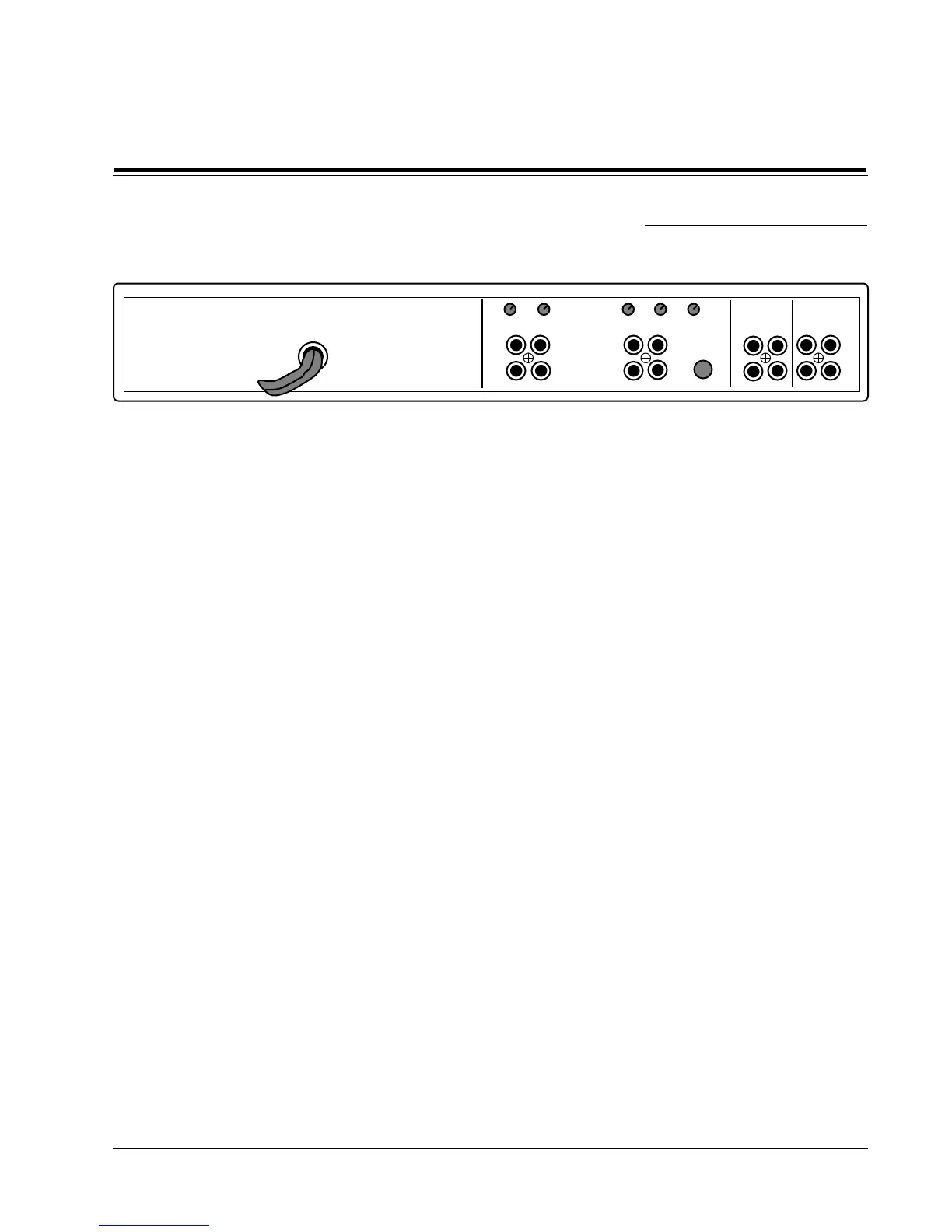

The Rear Panel
Rear and Side
Outputs
Stereo outputs for rear and side power amplifiers, with level adjusting
knobs. The procedure for balancing these outputs (as well as the center
channel and subwoofer) with the main pair begins on page 9.
Main outputs, with level adjustment. Level-setting of these outputs must
precede adjustment of the auxiliary channels.
The adjustment of the subwoofer output should be done only after all other
channels are calibrated. (See page 11.)
Main, Center
and Subwoofer
Outputs
Center channel output with level control and button. Push the button in if
you have no center channel; leave it out if a center speaker is connected.
NOTE: Leaving this button out with no center channel will cause the
Surround programs to malfunction.
Center/Out
Phantom/In
Inputs and outputs for an additional audio or video tape deck (audio
portion only) or to replace the monitor loop occupied by the CP-1.
Tape Out/In
Two sets of main inputs, selected by the SOURCE I/II buttons.
Inputs
Controls and
Indicators
REAR SIDE
LEVEL
SUB WOOFER
CENTER/OUT
PHANTOM/IN
L
R
L
R
OUTPUTS
TAPE
OUT
TAPE
IN
L
R
INPUTS
L
R
MAIN CENTER SUB
