Lexmark E230 - Page 47

How to install options
47
4

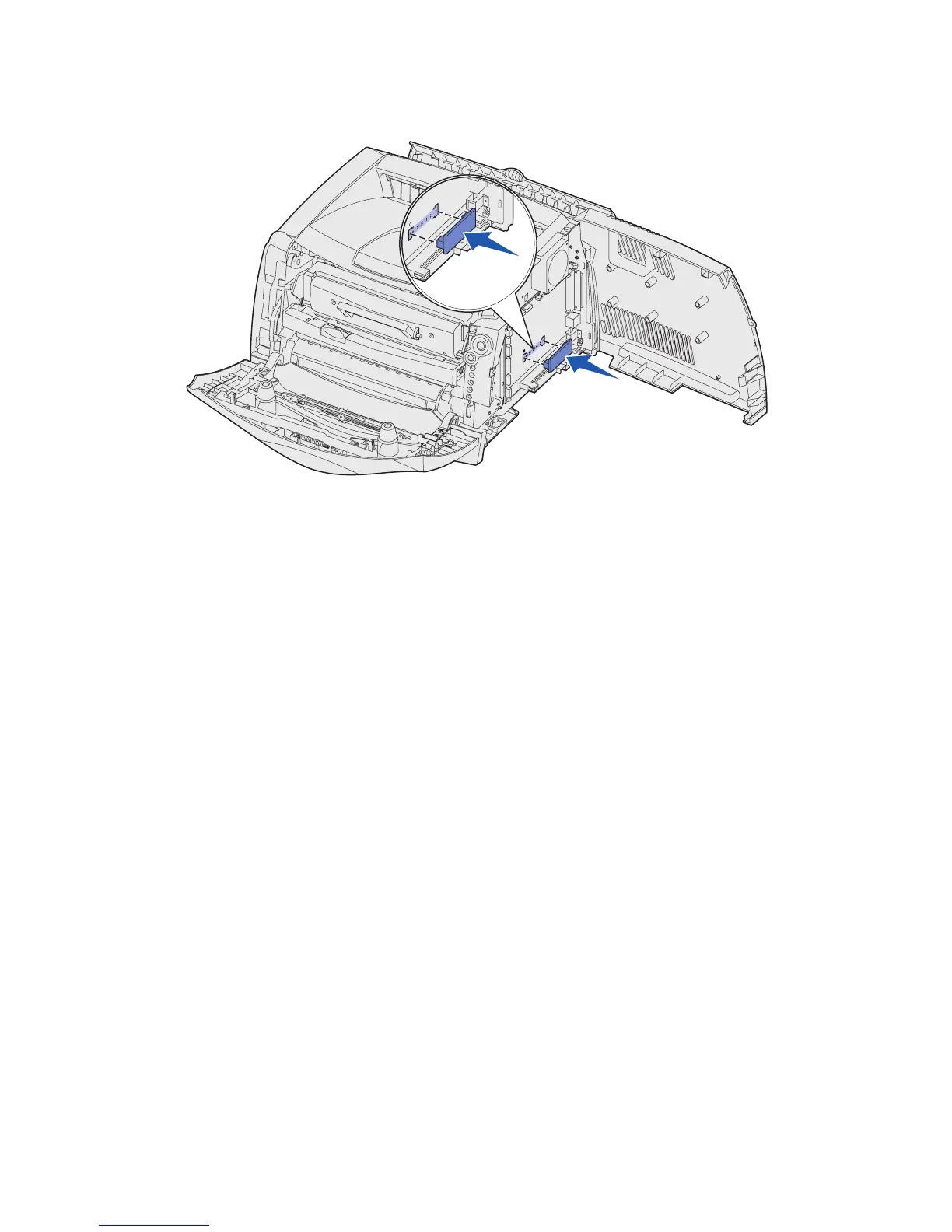

Push the flash card firmly into place.
The entire length of the connector on the flash card must touch and be flush against the
system board.
Be careful not to damage the connectors.
5 Reattach the system board cover (see How to reattach the system board cover).
6 See How to get the printer driver to recognize installed options.
