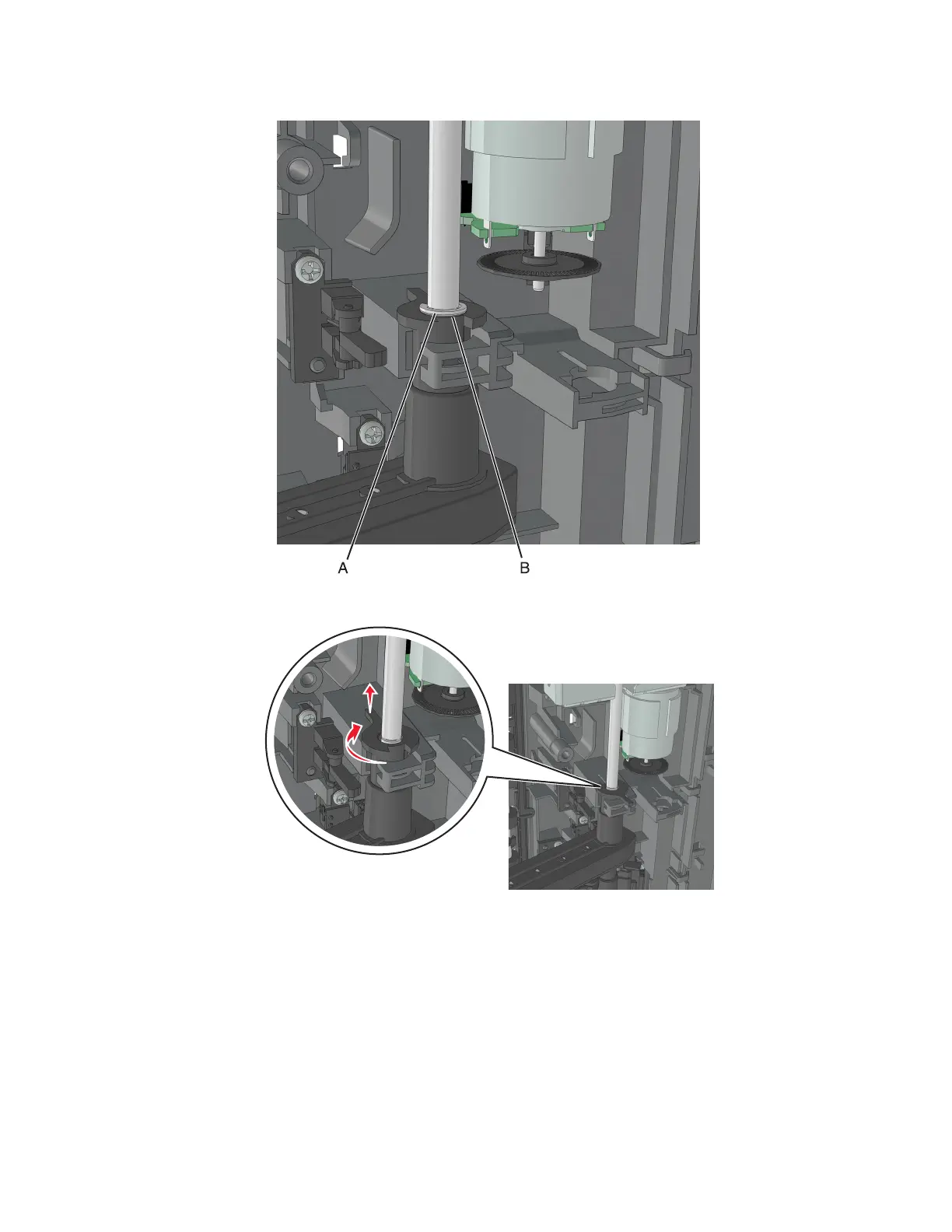

7 Remove the E-clip (A), and slide the washer (B) from the shaft.
8 Release the lock by sliding the bushing and then rotating it clockwise.
9 Remove the ACM assembly along with its shaft.
