5 Remove the control panel assembly. See “Control panel assembly removal” on page 315.
6 Remove the UICC drip pan.

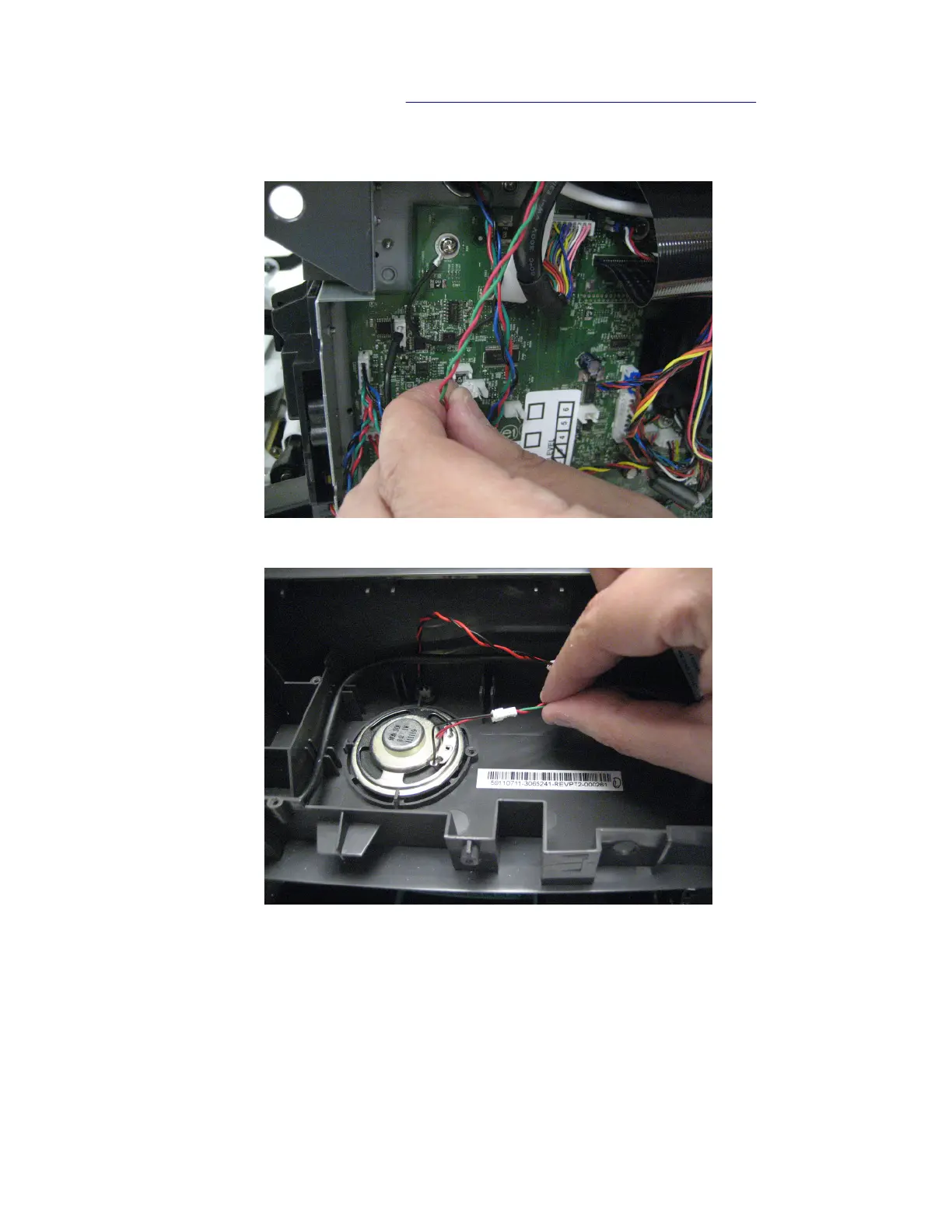

7 Disconnect the speaker cable from the controller board.
8 Disconnect the speaker cable from the speaker.
7015
Parts removal
400
