Lexmark MX610de - Page 322

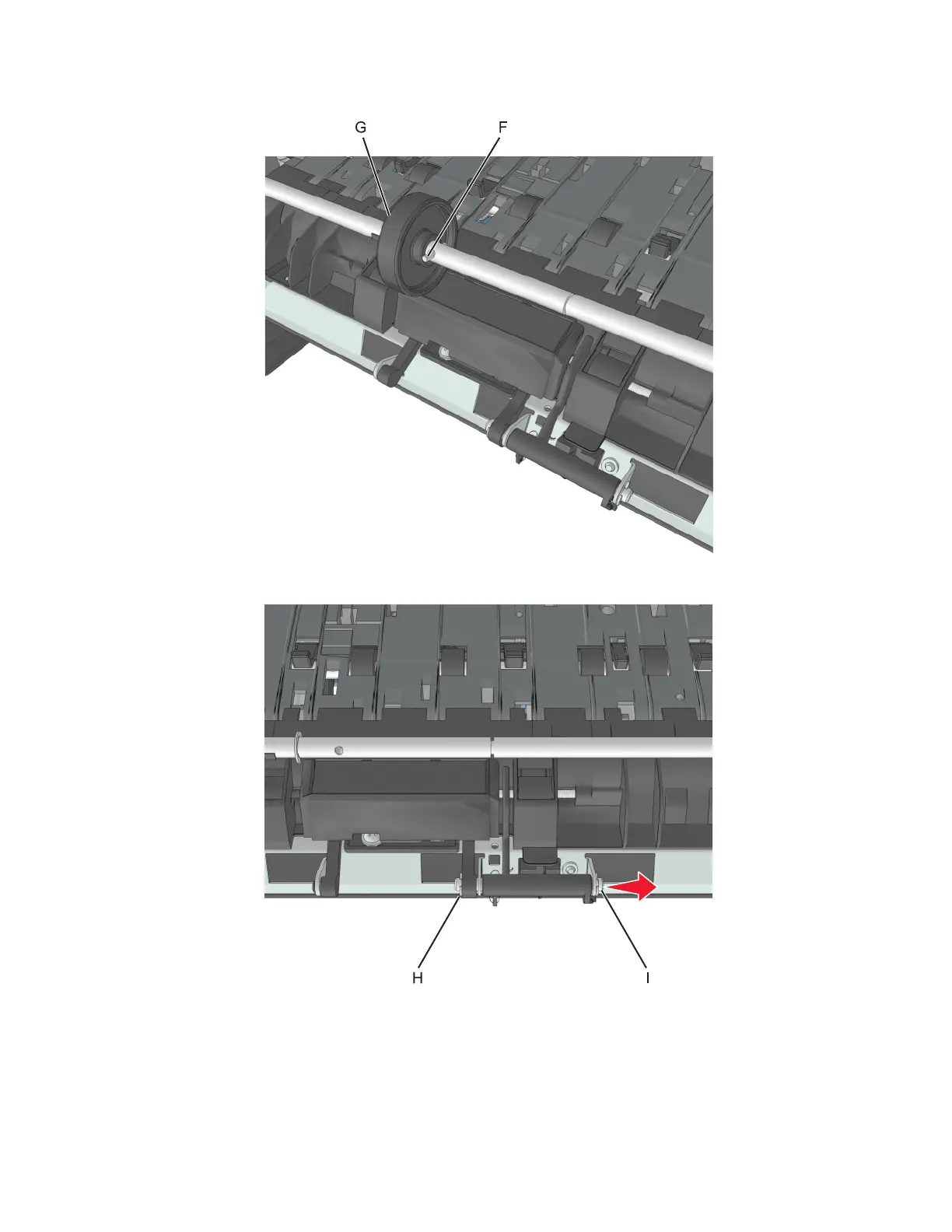

9 While pressing down the MPF sensor flag and separator pad, move the restraint roller (G) to the right.
10 Remove the E‑clip (H), and then move the shaft (I) to the right.
11 Remove the separator pad and the spring underneath.
7016
Repair information
322
