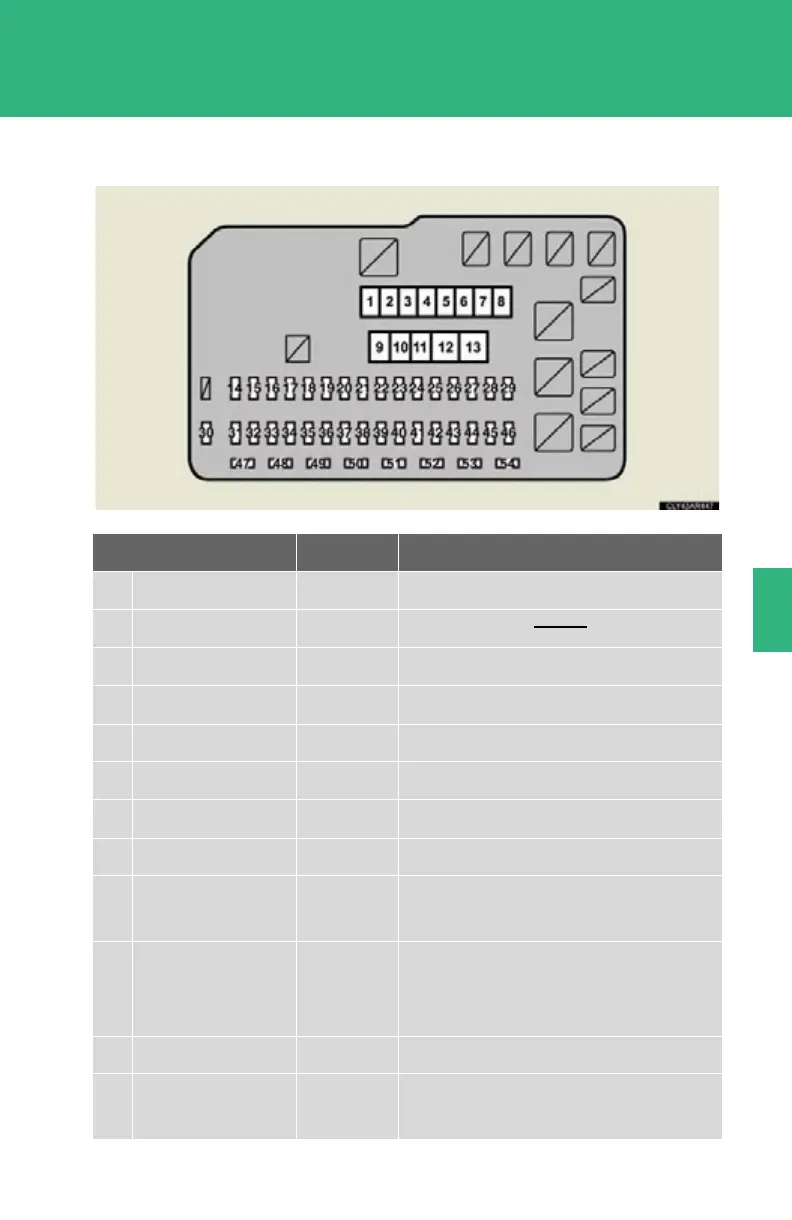

■ Engine compartment (type B fuse box)
Fuse Ampere Circuit
1
RR DEF 50 A Rear window defogger
2
AIR SUS 50 A
3
HEATER 50 A Air conditioning system
4
ABS NO. 1 50 A Electronically controlled brake system
5
RDI FAN NO. 1 40 A Electric cooling fans
6
RDI FAN NO. 2 40 A Electric cooling fans
7
H-LP CLN 30 A Headlight cleaner
8
PBD 30 A Power back door
9
HV R/B NO. 1 30 A
PCU, IGCT NO. 2, IGCT NO. 3,
INV W/P
10
PD 50 A
A/F, H-LP RH HI, H-LP LH LO, H-LP
RH LO, H-LP LH HI, HORN, S-
HORN
11
ABS NO. 2 50 A Electronically controlled brake system
12
HV R/B NO. 2 80 A
ABS MAIN NO. 1, ABS MAIN NO.
2, A/C W/P, BATT FAN, OIL PMP
