Maintenance and care

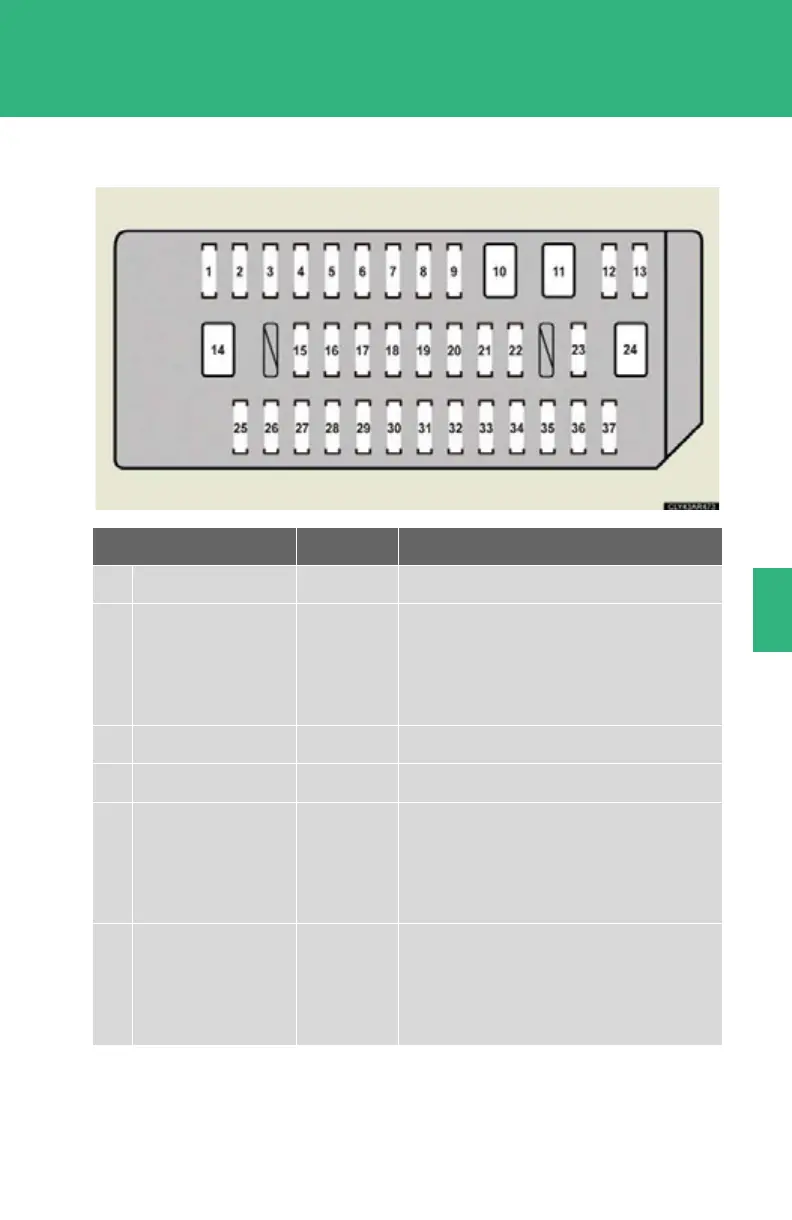

■ Driver’s side instrument panel
Fuse Ampere Circuit
1
P/ PO IN T 15 A Power outlet
2
ECU-ACC 10 A
Navigation system, air conditioning
system, audio system, multiplex com-
munication system, multi-information
display, head-up display
3
CIG 15 A Power outlet
4
RADIO NO. 2 7.5 A Audio system, navigation system
5
GAUGE NO. 1 10 A
Emergency flashers, navigation sys-
tem, head-up display, air conditioning
system, Vehicle Proximity Notification
System, audio system
6
ECU-IG1 NO. 3 10 A
Outside rear view mirror, windshield
wipers and washer, seat heaters,
starter system, power outlet, moon
roof, air conditioning system
To Next Page
