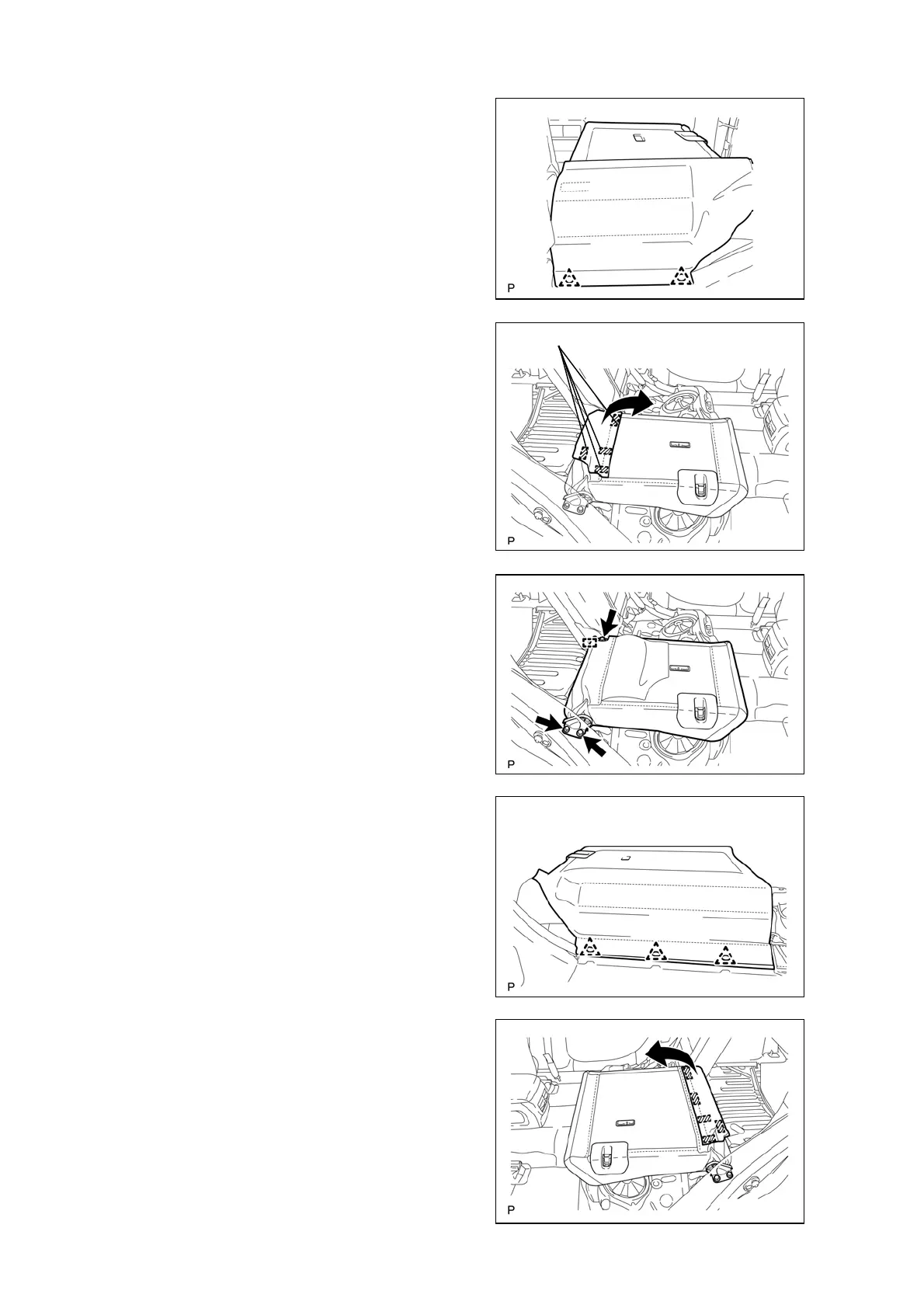

20. REMOVE REAR SEATBACK ASSEMBLY
RH (for Fold Down Seat Type)
(1) Fold the rear seatback assembly RH forward.
(2) Disengage the 2 clips.
27
Fastener
(3) Disengage the 4 fasteners as shown in the
illustration.
(4) Remove the 3 bolts.
(5) Disengage the guide to remove the rear
seatback assembly RH.
21. REMOVE REAR SEATBACK ASSEMBLY
LH (for Fold Down Seat Type)
(1) Fold the rear seatback assembly LH forward.
(2) Disengage the 3 clips.
(3) Disengage the 5 fasteners as shown in the
illustration.
