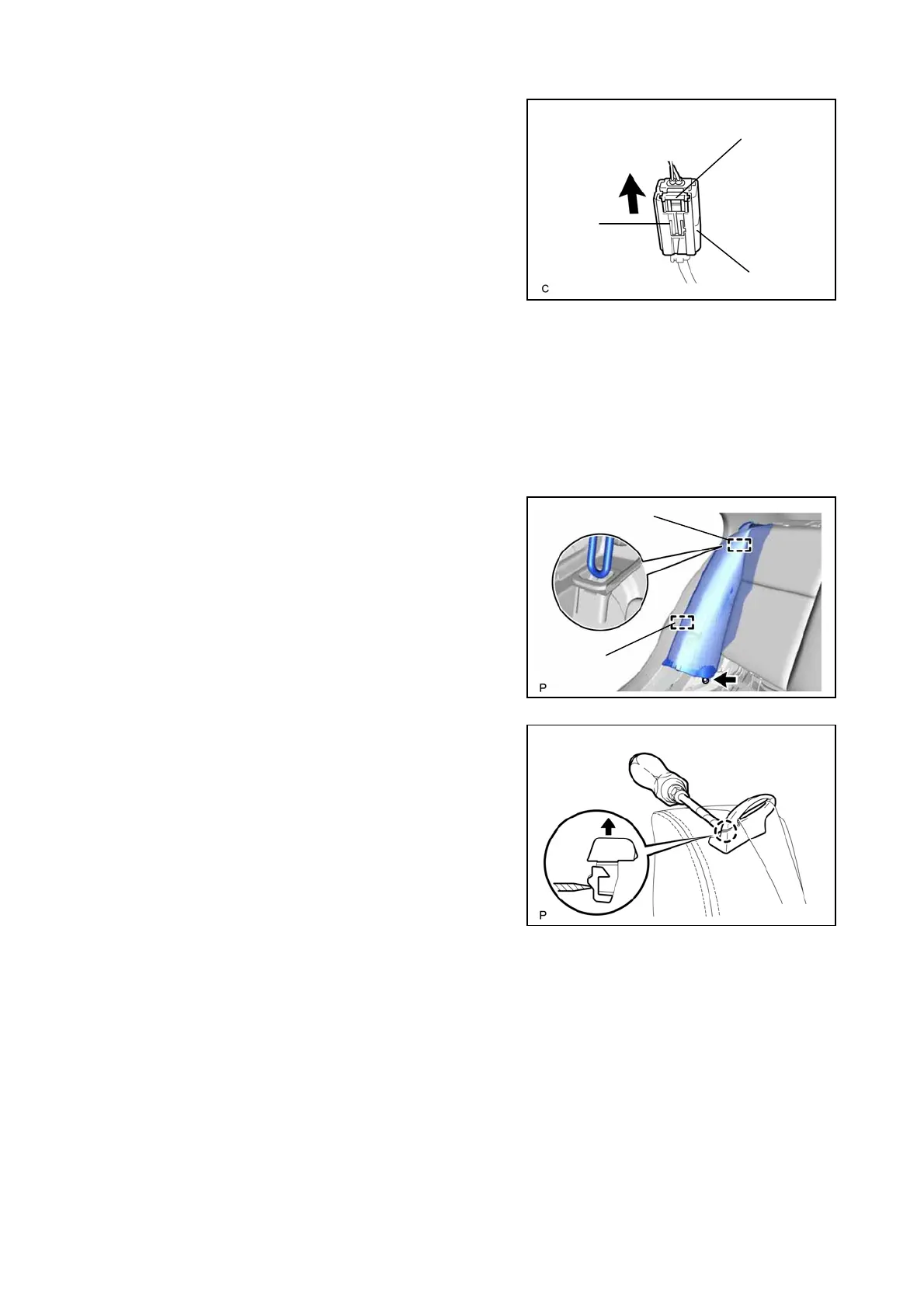

18. REMOVE REAR SIDE SEATBACK
ASSEMBLY RH (for Fold Down Seat Type)
White Housing Lock
Slide
(1) w/ Rear Seat Side Airbag
a) Disconnect the airbag connector.
A
Notice:
When disconnecting any airbag connector,
take care not to damage the airbag wire
harness.
Yellow CPA
b) Push down the white housing lock and slide the yellow CPA. (At this time, the connector
cannot be disconnected yet.)
c) Push down the white housing lock again and disconnect the connector.
Notice:
Do not push down the part (A) shown in the illustration when disconnecting the
connector.
(2) Remove the bolt.
Guide
Hook
(3) Disengage the guide and hook.
(4) Using a screwdriver, disengage the claw as
shown in the illustration.
(5) Disconnect the rear seat 3 point type outer
belt assembly RH from the rear seat shoulder
belt guide RH.
(6) Remove the rear side seatback assembly RH.
19. REMOVE REAR SIDE SEATBACK
ASSEMBLY LH (for Fold Down Seat Type)
Hint:
Use the same procedure as for the RH side.
26
