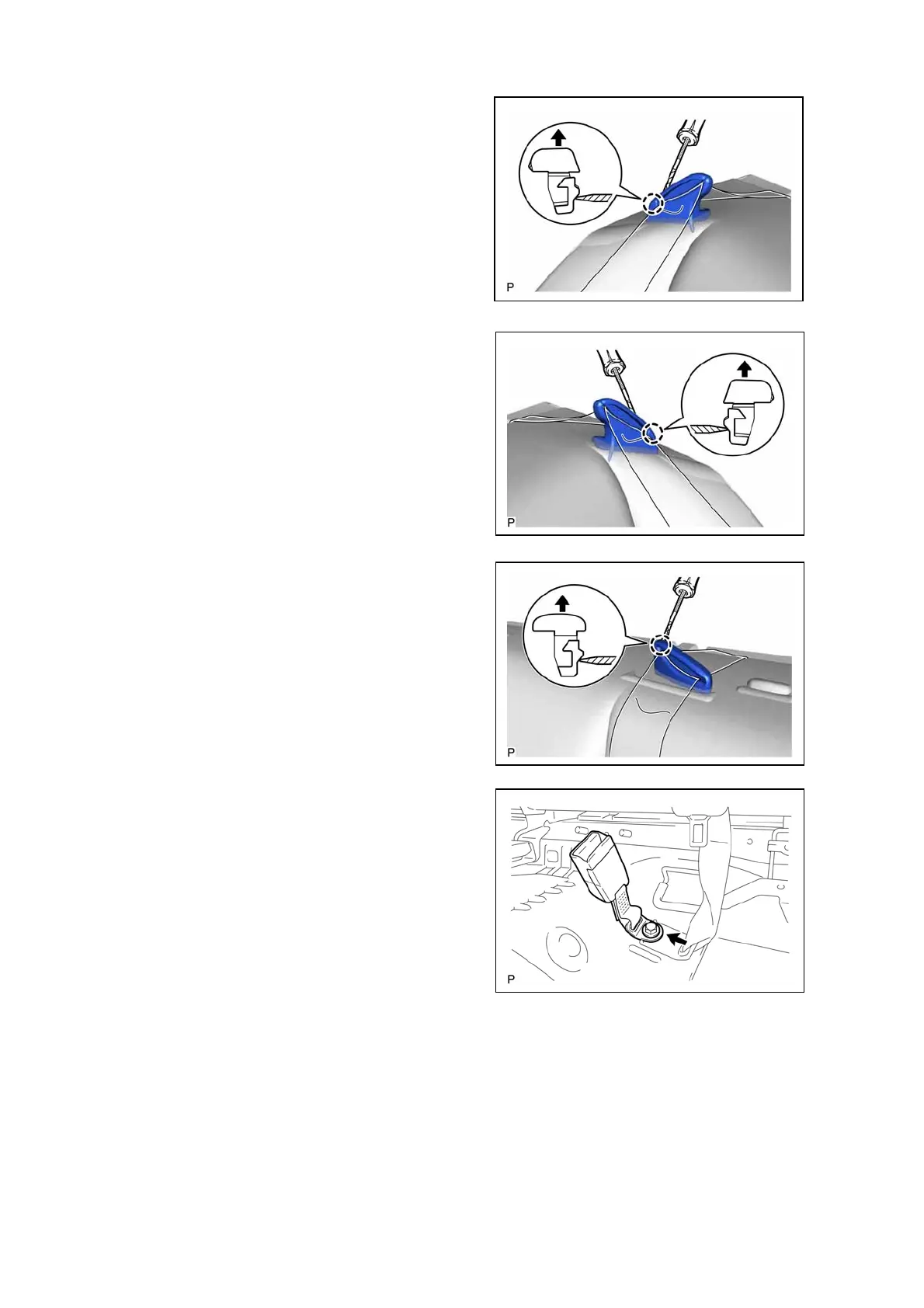

(3) Using a screwdriver, disengage the claw of the
rear seat shoulder belt guide RH as shown in
the illustration.
(4) Disconnect the rear seat 3 point type outer belt
assembly RH from the rear seat shoulder belt
guide RH.
(5) Using a screwdriver, disengage the claw of the
rear seat shoulder belt guide LH as shown in
the illustration.
(6) Disconnect the rear seat 3 point type outer belt
assembly LH from the rear seat shoulder belt
guide LH.
(7) Using a screwdriver, disengage the claw of the
rear seat center shoulder belt guide as shown in
the illustration.
(8) Disconnect the rear seat inner with center belt
assembly LH from the rear seat center shoulder
belt guide.
(9) Remove the rear seatback assembly.
17. REMOVE REAR NO. 1 SEAT INNER BELT
ASSEMBLY LH (for Fold Down Seat Type)
(1) w/ Rear Seat Belt Warning:
a) Disengage the clamp.
b) Disconnect the connector.
(2) Remove the bolt and rear No. 1 seat inner belt
assembly LH.
