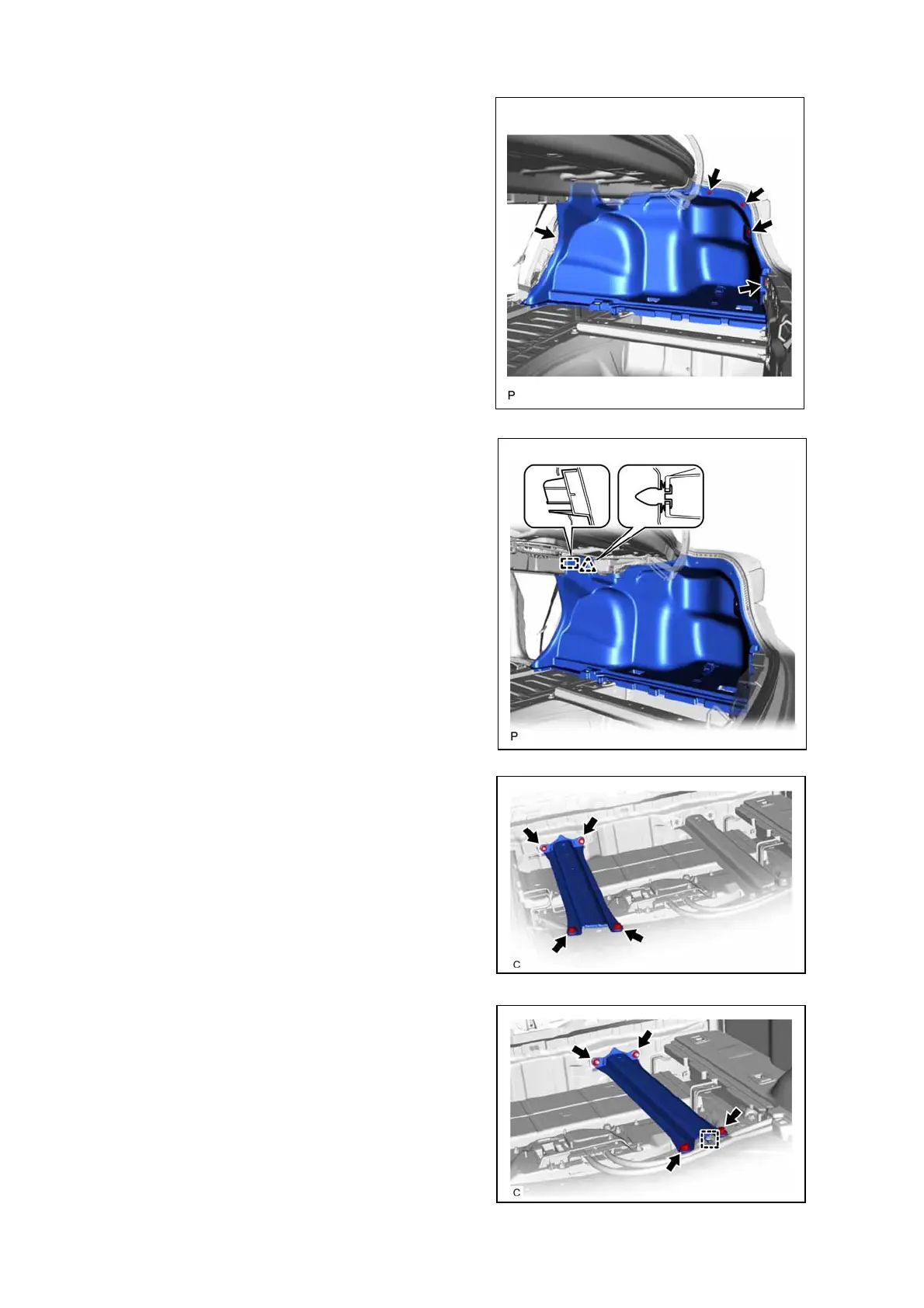

(3) Remove the 5 clips.
(4) Disengage the clip.
(5) Disengage the guide and remove the luggage
compartment trim cover RH.
27. REMOVE REAR NO. 1 FLOOR
CROSSMEMBER BRACE RH
(1) Remove the 2 bolts, 2 nuts and rear No. 1 floor
crossmember brace RH.
28. REMOVE REAR NO. 1 FLOOR
CROSSMEMBER BRACE LH
(1) Disengage the clamp from the rear No. 1 floor
crossmember brace LH.
(2) Remove the 2 bolts, 2 nuts and rear No. 1 floor
crossmember brace LH.
31
