4-3. Do-it-yourself maintenance
4
Maintenance and care
■ Luggage compartment

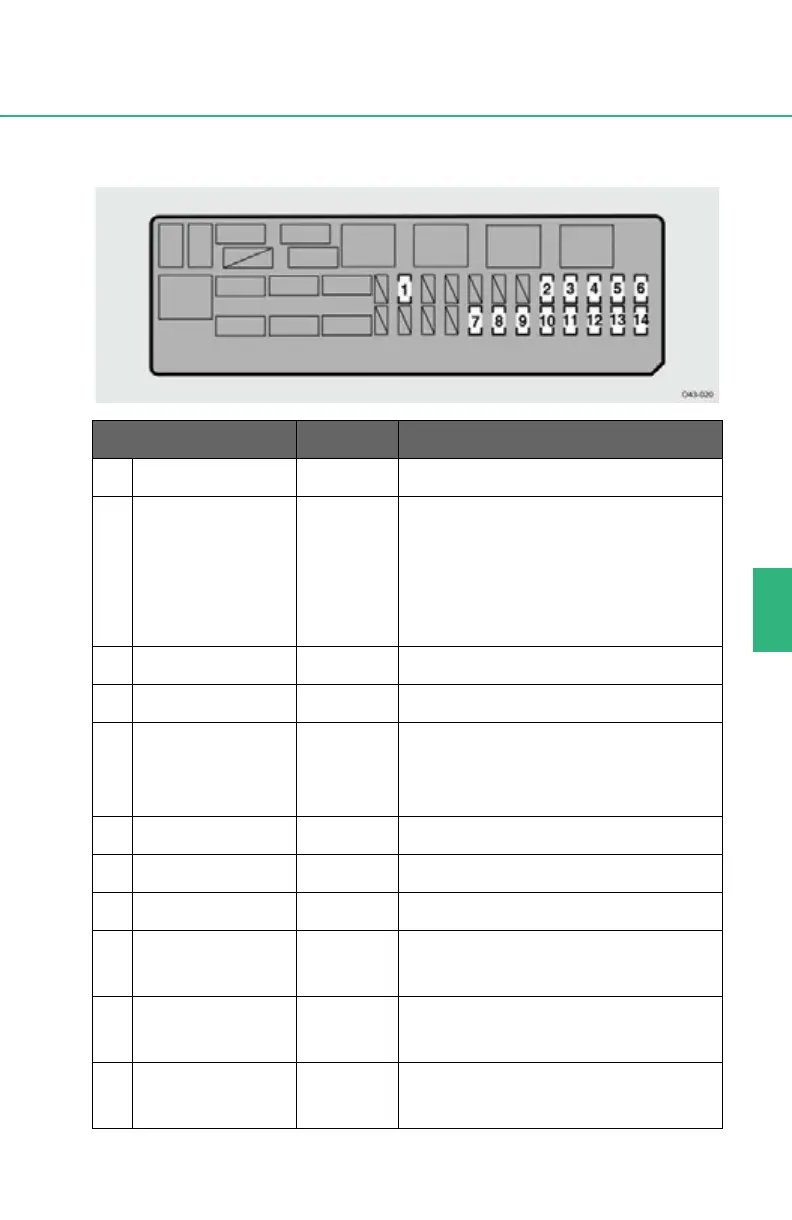

Fuse Ampere Circuit
1
VSSR 5 A Electric power control system
2
RR-IG1 10 A
Active rear wing, electric cooling fans,
electronic parking brake, electroni-
cally controlled brake system, seat
belts, navigation system, rear window
defogger, back-up lights
3
WASH 20 A Windshield washer
4
F/OPN 10 A Fuel filler door opener
5
TAIL 10 A
Parking lights, front side marker lights,
rear side marker lights, license plate
lights, stop/tail lights
6
RR FOG 7.5 A
7
AMP RH 30 A Audio system
8
AMP LH 30 A Audio system
9
OIL PMP 25 A
ASG (Automated Sequential Gear-
box)
10
RR ECU-B 7.5 A
Active rear wing, electronic parking
brake
11
ASG-IG2 7.5 A
ASG (Automated Sequential Gear-
box)
To Next Page
