1-7. Safety information
1
Before driving

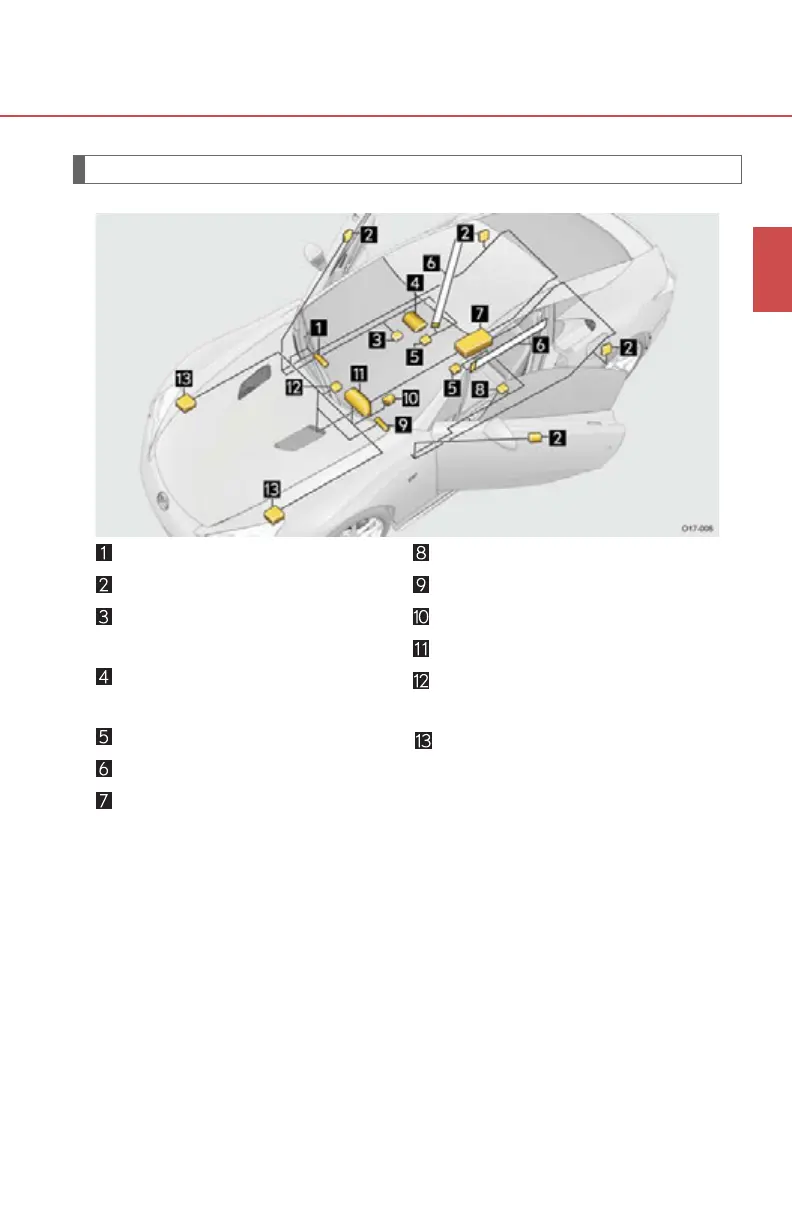

Airbag system components
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and passenger. The
driver airbag system consists of the driver’s seat position sensor etc. The
passenger’s airbag system consists of the passenger occupant classifica-
tion sensor etc.
Passenger airbag
Seat belt airbag sensors
Occupant detection system
ECU
Occupant detection system
sensor
Seat belt buckle switches
Seat belt airbags
Airbag sensor assembly
Driver's seat position sensor
Driver’s knee airbag
Driver airbag
SRS warning light
“A I R B A G O N ” a n d “A I R
BAG OFF” indicator lights
Front airbag and seat belt air-
bag sensors
