2-1. Instrument cluster
LS500h_OM_(U)_1810
2

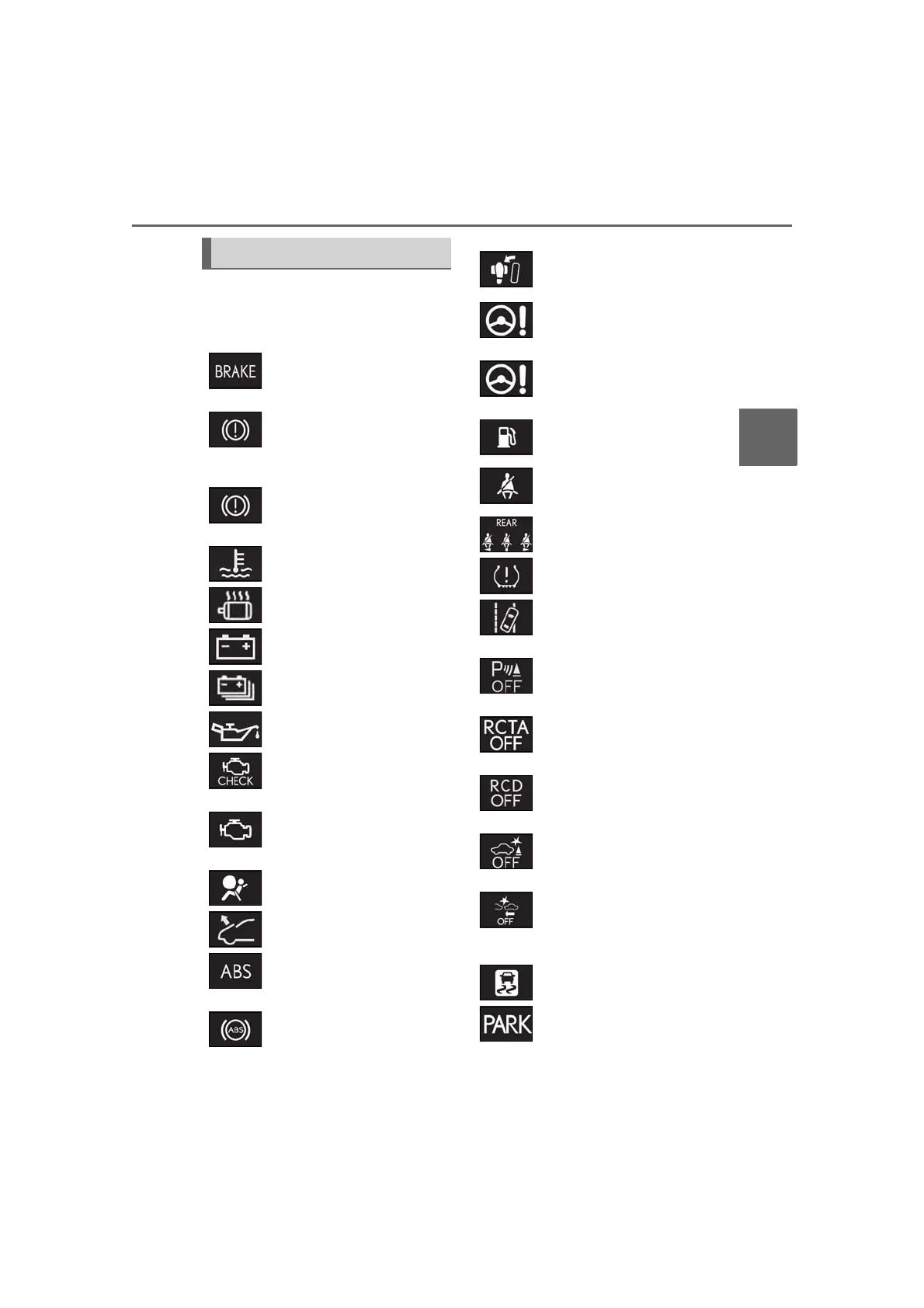

Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
Warning lights
(U.S.A.)
Brake system warning light
*1
(P.424)
(red)
(Canada)
Brake system warning light
*1
(P.424)
(yellow)
Brake system warning light
*1
(P.424)
High coolant temperature
warning light
*2
(P.424)
Hybrid system overheat warn-
ing light
*2
(P.425 )
Charging system warning
light
*2
(P.425)
Low traction battery warning
light
*2
(P.425 )
Low engine oil pressure warn-
ing light
*2
(P.425)
(U.S.A.)
Malfunction indicator lamp
*1
(P.426)
(Canada)
Malfunction indicator lamp
*1
(P.426)
SRS warning light
*1
(P.426)
Pop Up Hood warning light
*1
(P.426)
(U.S.A.)
ABS warning light
*1
(P.426)
(Canada)
ABS warning light
*1
(P.426)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2
(P.427)
(red)
Electric power steering system
warning light
*1
(P.427)
(yellow)
Electric power steering system
warning light
*1
(P.427)
Low fuel level warning light
(P.427)
Driver’s and front passenger’s
seat belt reminder light
(P.427)
Rear passengers’ seat belt
reminder lights
*3
(P.428)
Tire pressure warning light
*1
(P.428)
(orange)
LTA indicator (P.429)
(flashes)
Intuitive parking assist OFF indi-
cator
*1
(P.429)
(flashes)
RCTA OFF indicator
*1
(P.429)
(flashes)
RCD OFF indicator (if
equipped) (P.429)
(flashes)
PKSB OFF indicator
*1
(P.430)
(flashes or
illuminates)
PCS warning light
*1
(P.430)
Slip indicator
*1
(P.430)
(flashes)
(U.S.A.)
Parking brake indicator
(P.431)
