Maintenance and care

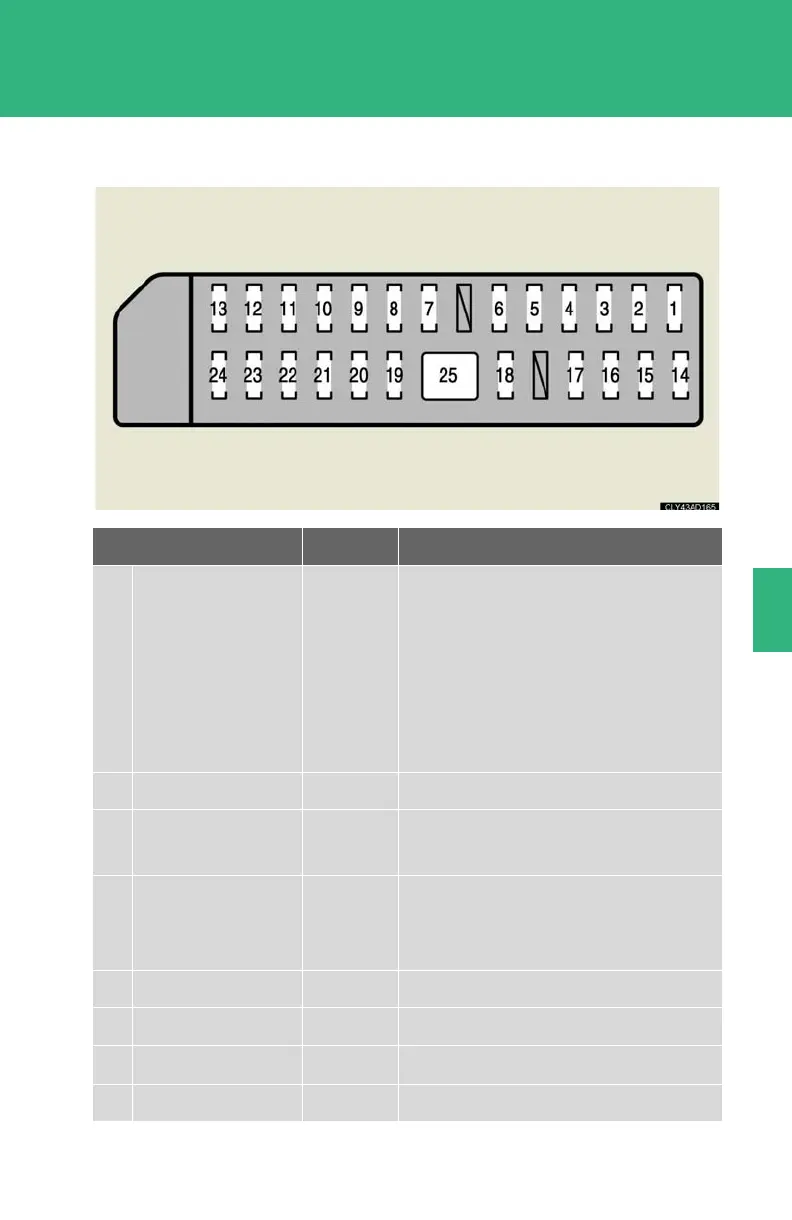

■ Driver’s side instrument panel
Fuse Ampere Circuit
1
D-IG1-3 10 A
Automatic transmission, power door
lock system, cruise control system,
brake system, rear window defogger,
moon roof, pre-collision seat belt,
head restraints, power outlet, turn sig-
nal lights, climate control seat system,
audio system
2
D-IG1-2 5 A Cruise control system
3
D-IG1-4 15 A
Starter system, climate control seat
system
4
D-IG1-1 5 A
Main body ECU, pre-collision seat
belt, tilt and telescopic steering,
starter system
5
PWR OUTLET 15 A Power outlet
6
D-ACC 5 A Power door lock system
7
S/ROOF 30 A Moon roof
8
TI&TE 30 A Tilt and telescopic steering
