1-2. Hybrid system
LS600h/LS600hL_EE(OM50D61E)
Hybrid system precautions

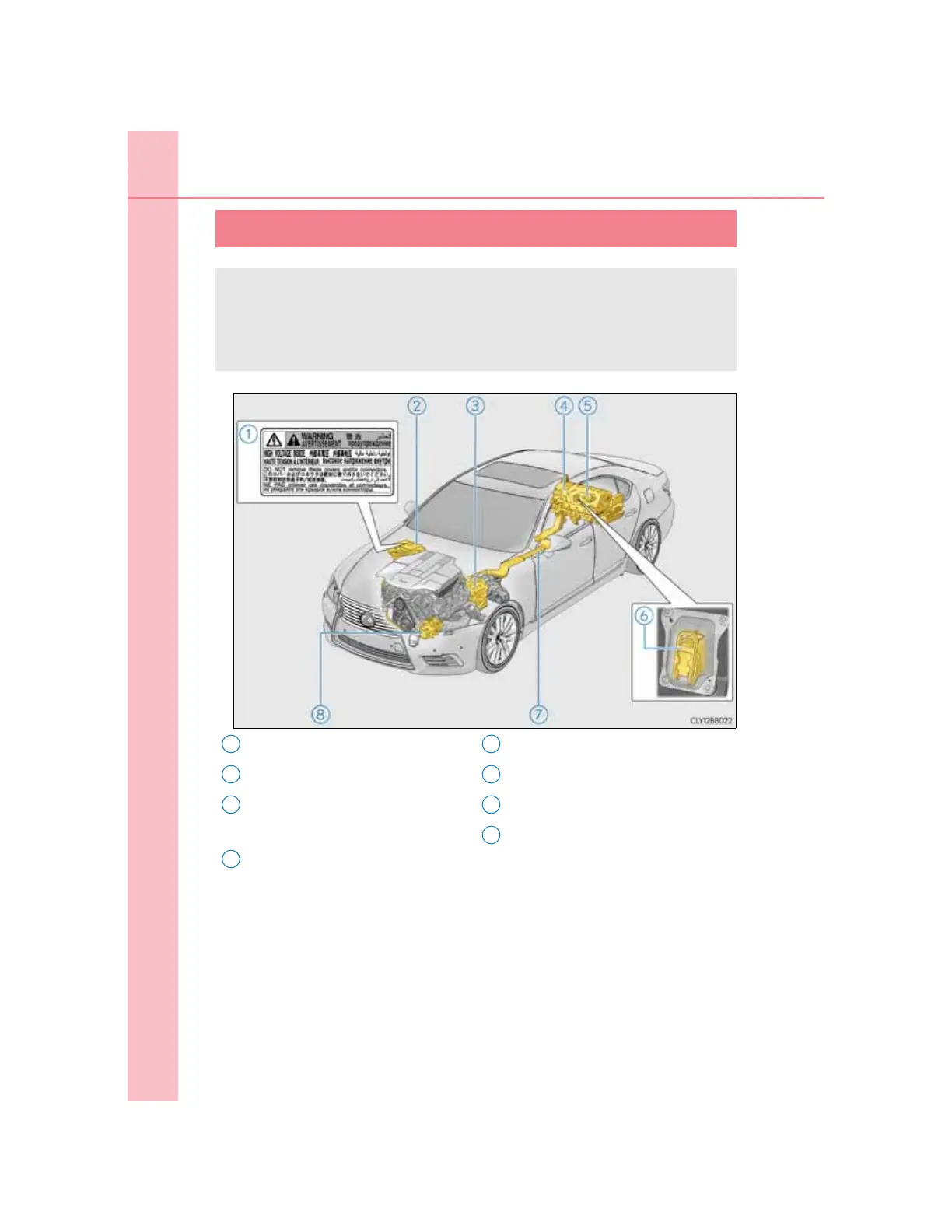

Take care when handling the hybrid system, as it contains a high
voltage system (about 650 V at maximum) as well as parts that
become extremely hot when the hybrid system is operating. Obey
the caution labels attached to the vehicle.
Caution label
Power control unit
Electric motor (traction
motor)
Hybrid battery (traction bat-
tery)
DC/DC converter
Service plug
High voltage cables (orange)
Air conditioning compressor
1
2
3
4
5
6
7
8
