31

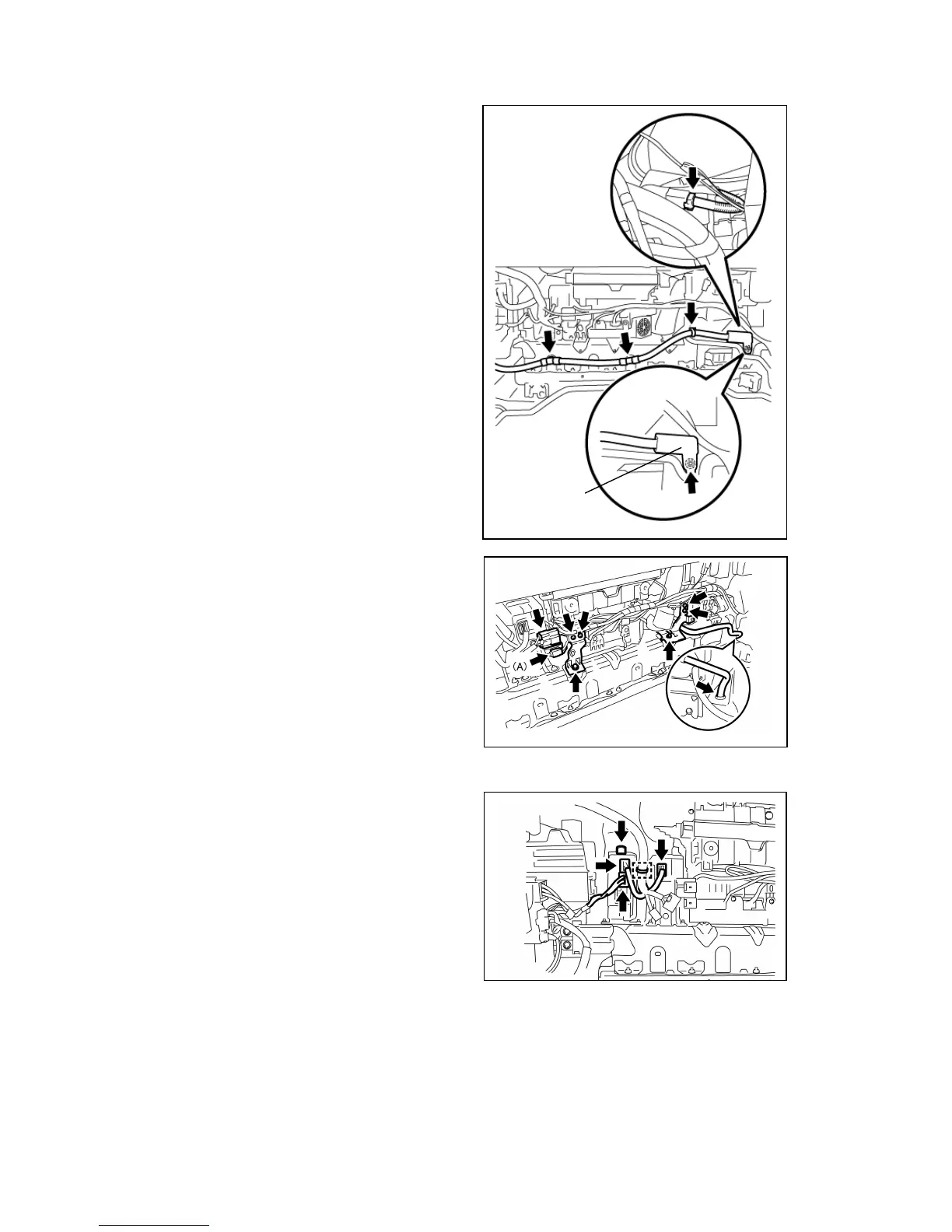

(4) Disconnect the connector and
disengage the 3 clamps.
(5) Remove the nut and disconnect the
AMD terminal.
Notice:
Insulate the terminal of the removed
AMD wire with insulating tape to
prevent a short to body ground.
(6) Disconnect the connector clamp.
(7) Remove the 4 screws, 2 bolts and 2
rear air conditioning brackets.
(8) Pull out the rear air conditioning
drain hose.
Notice:
Do not allow water remaining in the
drain hose to spill on the HV battery.
(9) Disconnect the 4 connectors,
remove the clamp and then
disconnect the wire harness.
AMD terminal
To Next Page
