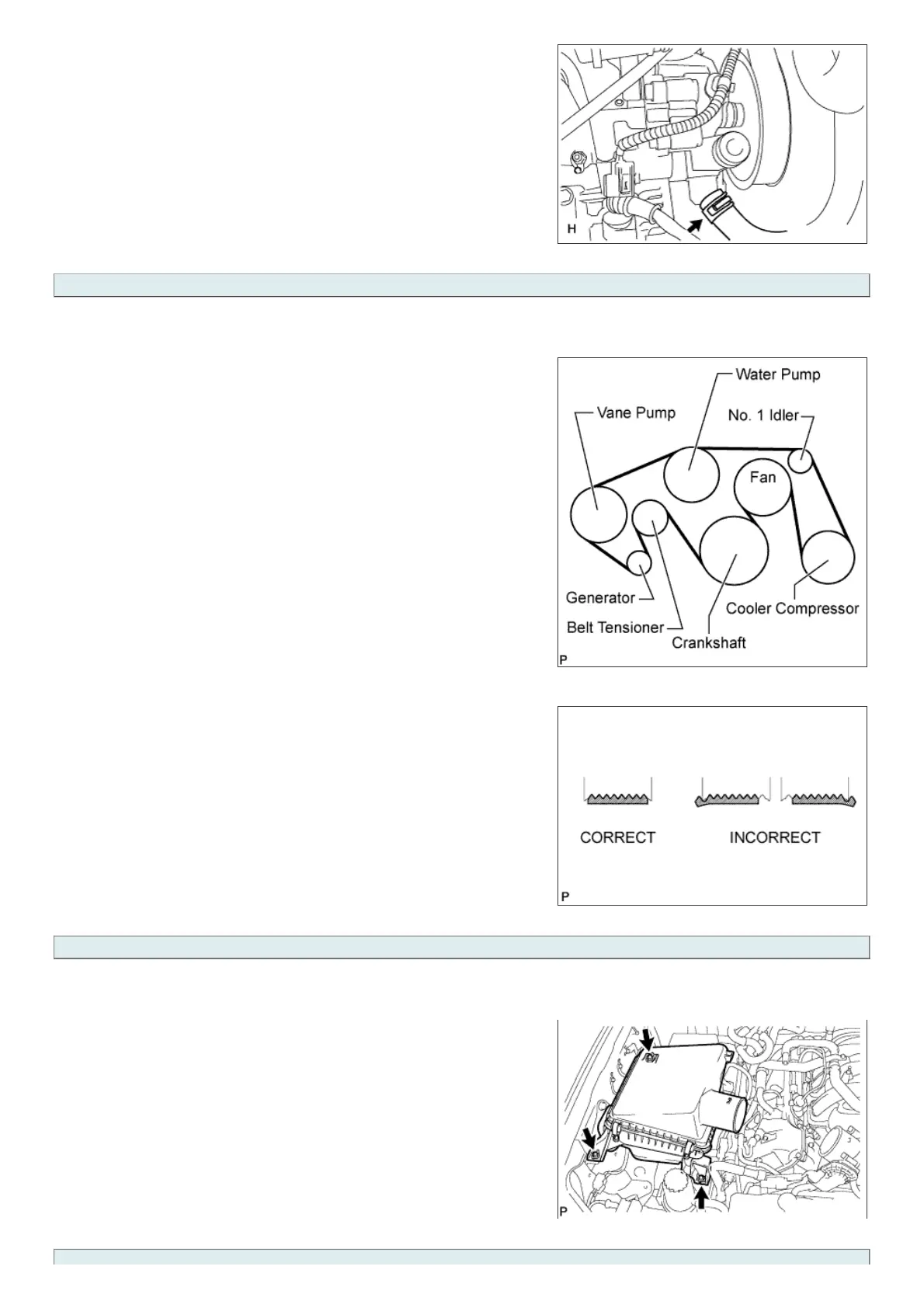

5. INSTALL FAN & GENERATOR V BELT
a. Set the V belt onto every part.
b. While turning the belt tensioner counterclockwise, remove the bar.
NOTICE:
Make sure that the V belt is properly set to each pulley.
c. After installing the belt, check that it fits properly in the ribbed grooves.
HINT:
Make sure to check by hand that the belt has not slipped out of the grooves
on the bottom of the pulley.
6. INSTALL AIR CLEANER ASSEMBLY
a. Install the air cleaner with the 3 bolts.
Torque:
5.0 N*m{ 51 kgf*cm , 44 in.*lbf }
To Next Page
